EMC VNX Series Hardware Information Guide

8 EMC VNX8000 Hardware Information Guide
VNX8000 product description
Rear view

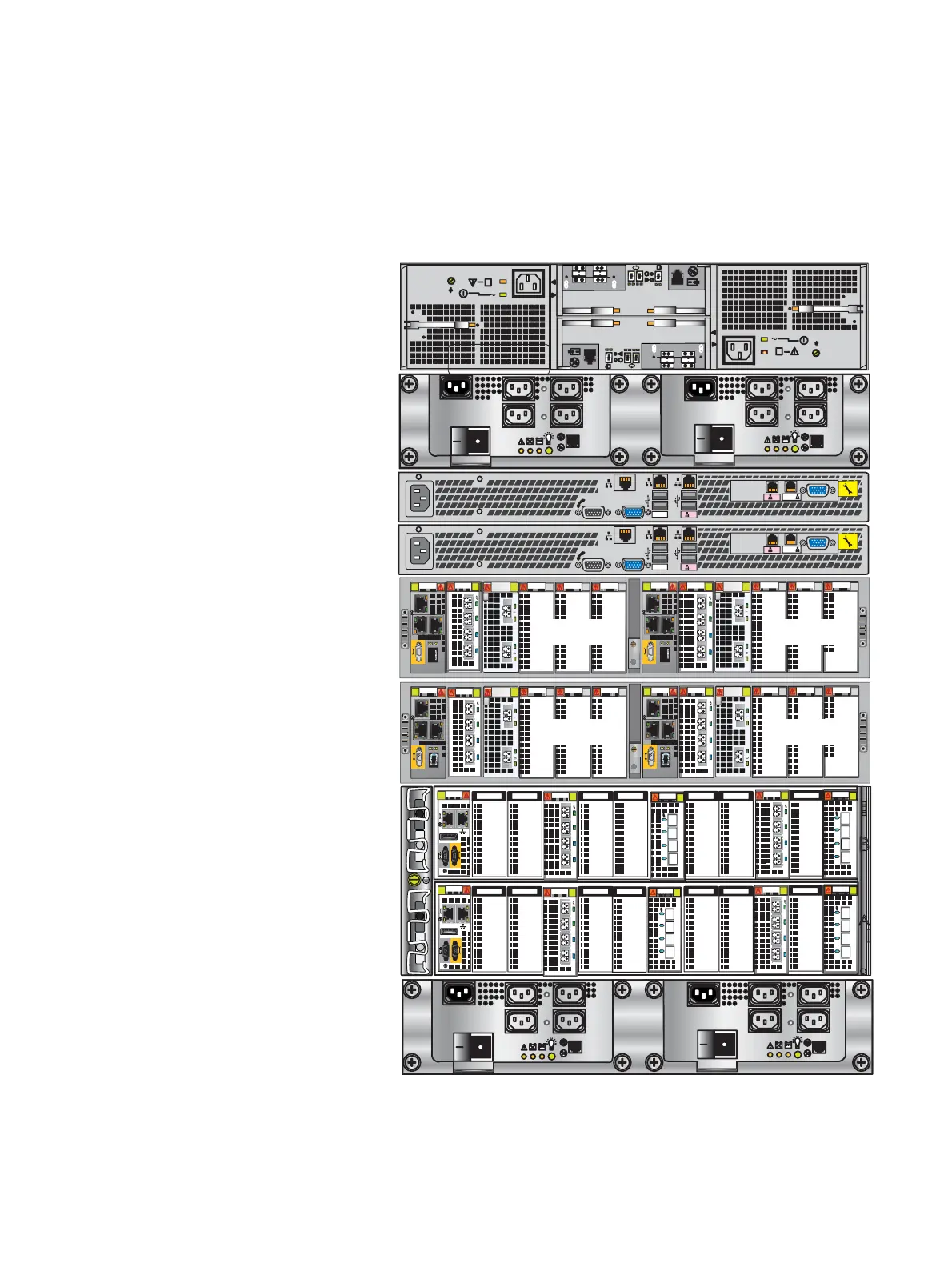

Figure 2 on page 8 shows an example of the rear view of a File/Unified VNX8000 platform
having a 4U SPE showing the two storage processors (SP A and B), two 1U Control
Stations (one optional), two dual 2U SPSs (one for the SPE and one for the Vault DAE), two
2U Data Mover enclosures with four Data Movers, and one 2U DAE (the Vault DAE).
Figure 2 Example of a File/Unified VNX8000 platform (rear view)
6 Gb SAS
X4
#
6 Gb SAS
X4
#
B
A
X4
X4
0123
0123
0123
0123
0
123
0
123
0
123
0
123
B MGMT
MGMT
B
CS
A
1
2
MGMT
IOIO
B MGMT
MGMT
B
CS
A
1
2
MGMT
IOIO
0
0
Data Mover
enclosure 0
Control Station 0
Control Station 1
(optional)
Data Mover
enclosure 1
Storage
processor
enclosure
SPE standby
power supply
DAE standby
power supply
Disk-array
enclosure 0
VNX-000560
0
123
0
123
Data Mover 5
Data Mover 2Data Mover 3
Data Mover 4

EMC VNX Series Specifications

General

Management Interface	Unisphere
Drive Support	SAS, NL-SAS, Flash (SSD)
RAID Levels	RAID 0, 1, 3, 5, 6
Protocols Supported	Fibre Channel, iSCSI, NFS, CIFS
Data Services	Deduplication, Compression, Snapshots, Replication
Processor	Intel Xeon
Operating System	VNX Operating Environment (block), VNX File Operating Environment (file)
