I/O modules
EMC VNX8000 Hardware Information Guide 69
Two-port 10-Gb/s optical I/O module
The two-port 10-Gb/s optical or active and passive Twinax I/O module (labeled 10 GbE v3
on the latch handle) comes with two optical ports, one power/fault LED, and a link and
activity LED for each port (Figure 55). The optical ports on this I/O module can interface at
speeds of 10-Gb/s networks. The two-port 10-Gb/s optical I/O module uses the SFP+
transceiver module. For part number label location, see the
VNX8000 Parts Location
Guide
available online at https://mydocs.emc.com/VNX/ and go to Additional VNX
documentation, and select the related documentation software for the model desired,
then go to VNX Hardware Parts, next select the VNX8000 Parts Guide.

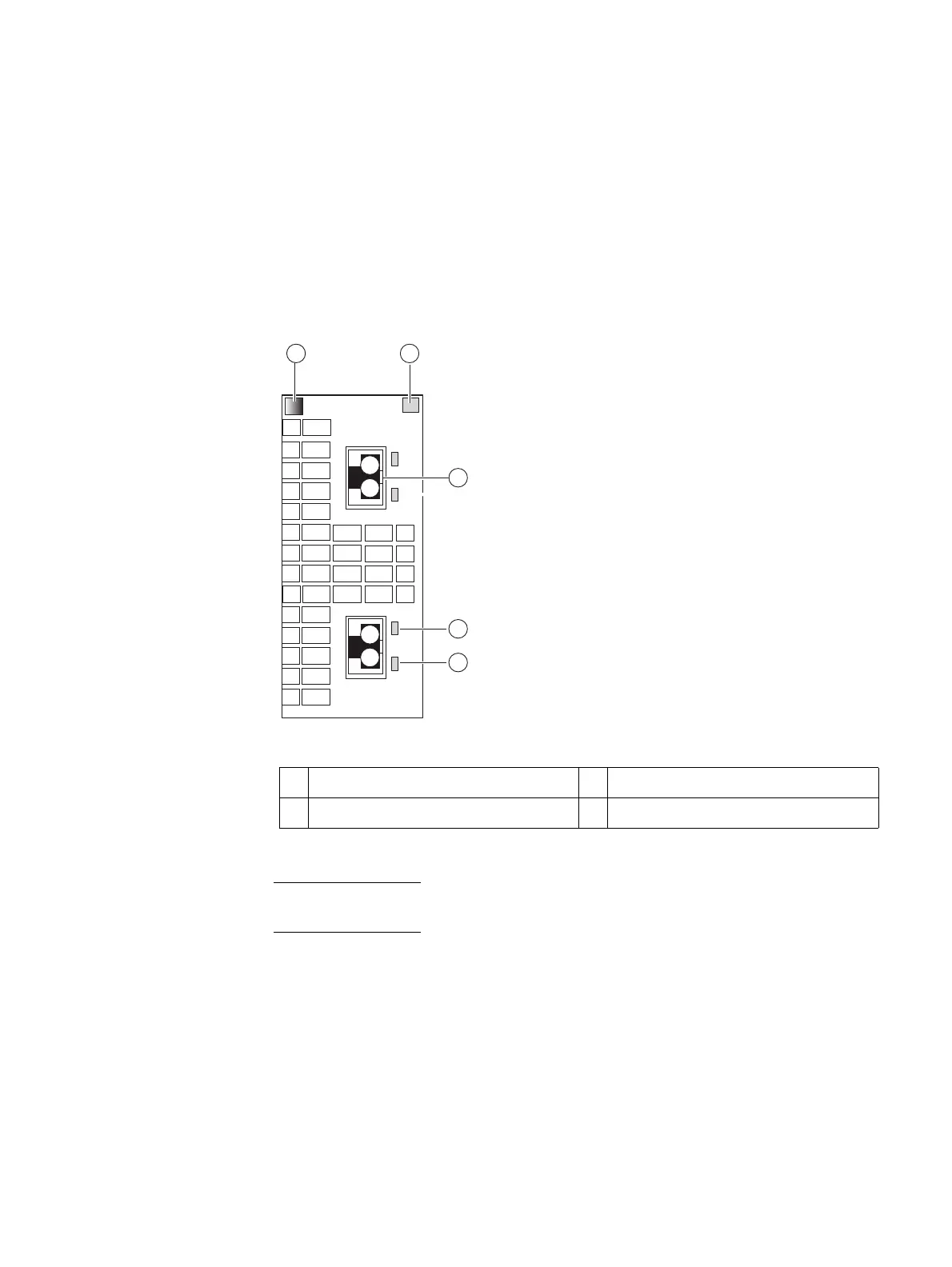

Figure 55 Two-port 10-Gb/s optical I/O module
Note: The 10-Gb/s optical I/O module uses a specific type of SFP module, ensure you are
using the correct one. Refer to the Parts Location guide for more information.
1 Push button latch handle 3 Link LED (right)
2 Power/fault LED 4 Activity LED (left)
1
0
1
2
3
4
5
CNS-001756
