6-Gb/s mini-SAS port LEDs and port direction (input or output)

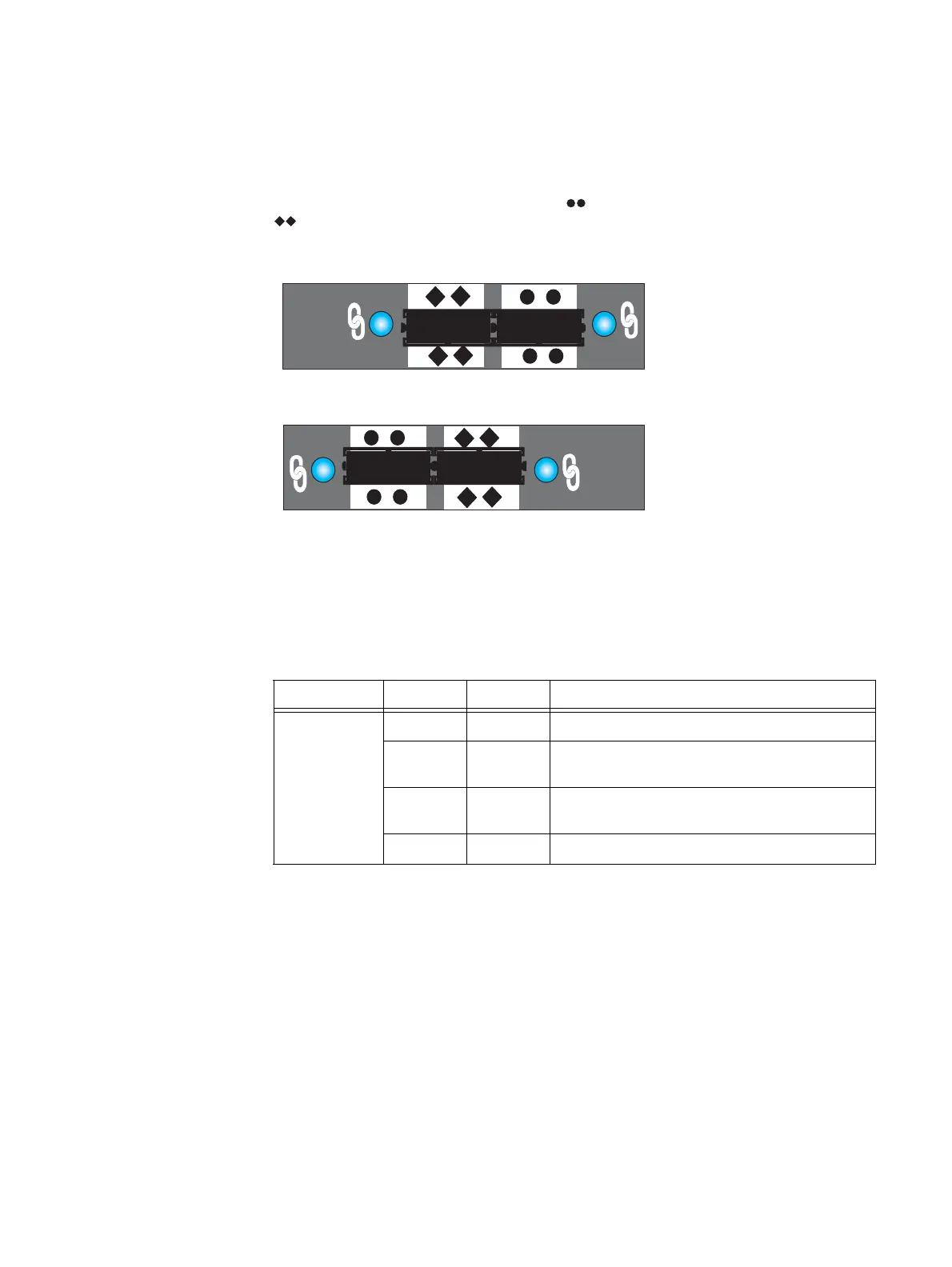

Figure 71 shows the LCC 6-Gb/s SAS port LED—a bi-color (blue/green) LED next to the
connector, either left or right—that indicates the link/activity of the SAS port. Figure 71
also shows a double circle (or dot) symbol
(for input) or a double diamond symbol
(for output).
Figure 71 6-Gb/s mini-SAS port LED
Table 38 describes the 3U DAE LCC 6-Gb/s mini-SAS port LEDs.
Management (RJ-12) connector
Figure 72 on page 92 shows the management port connector (labeled with two symbols;
one depicting a telephone handset with a line through it and the other depicting a
battery). The telephone handset with a line through it symbol means that you cannot
connect telephone type circuits to this connector (see the WARNING on page 92). This port
connects the LCC (A and B) ports to the SPS (A and B) ports, respectively.
3U, DAE LCC A 6-Gb/s SAS ports
3U, DAE LCC B 6-Gb/s SAS ports
VNX-000101
X4
6Gb SAS
X4
6Gb SAS
Table 38 6-Gb/s mini-SAS port LEDs
LED Color State Description
Link/activity Blue On All lanes are running at 6 GB/s
Green On One or more lanes is not running at full speed or
disconnected
Alternating
Blue/Green
Blinking Port is being marked by the host
—OffNot connected
