EMC VNXe3200 - Page 38

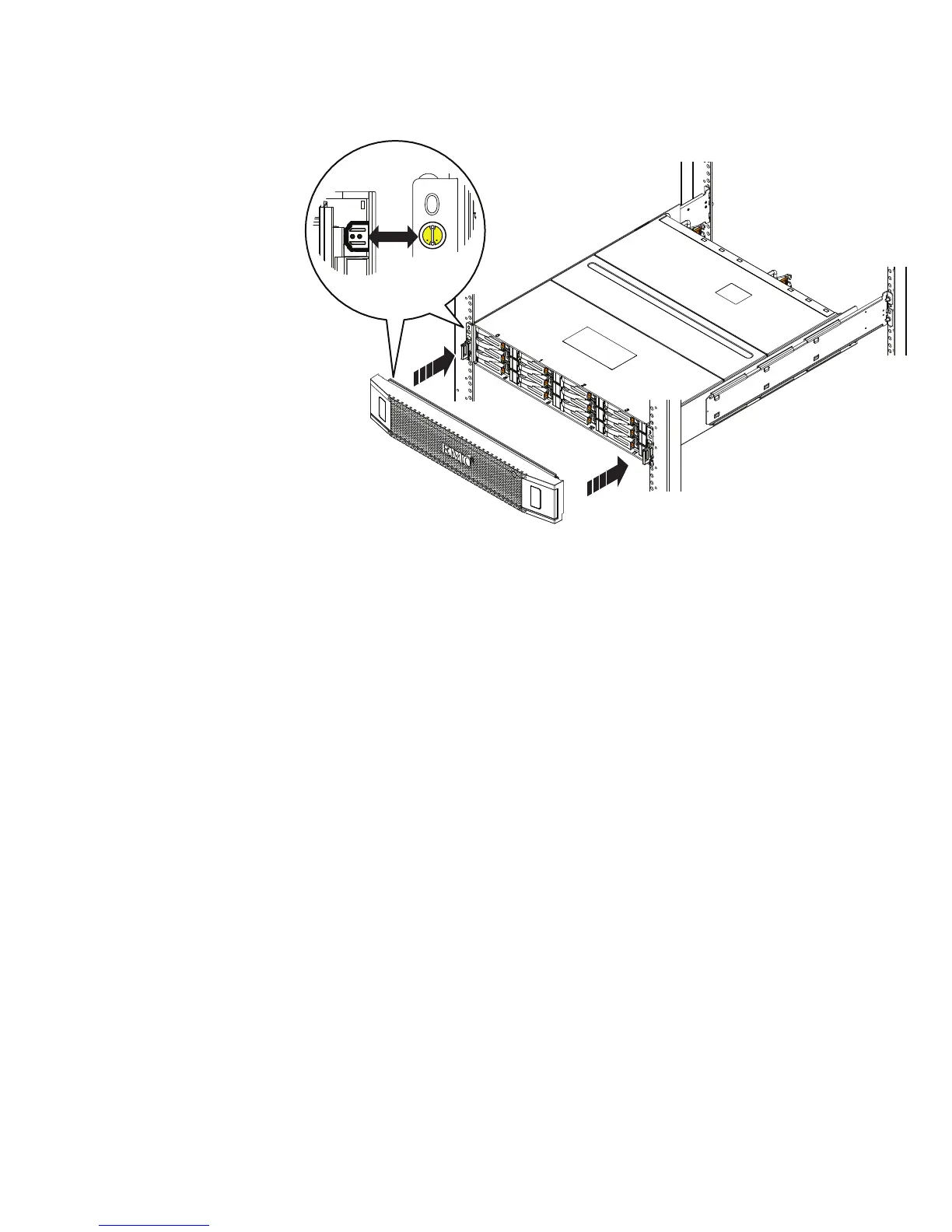

Figure 34 Attaching the bezels
CL5327
The DPE bezel will press in place against the bezel connector on the left rail. Each
bezel can be locked in place by turning the key one quarter turn clockwise.
3. Plug in the cable to light the bezel cover the DPE. See Figure 35 on page 39.
Rack and install
38 EMC VNXe2 Series VNXe3200 Installation Guide
