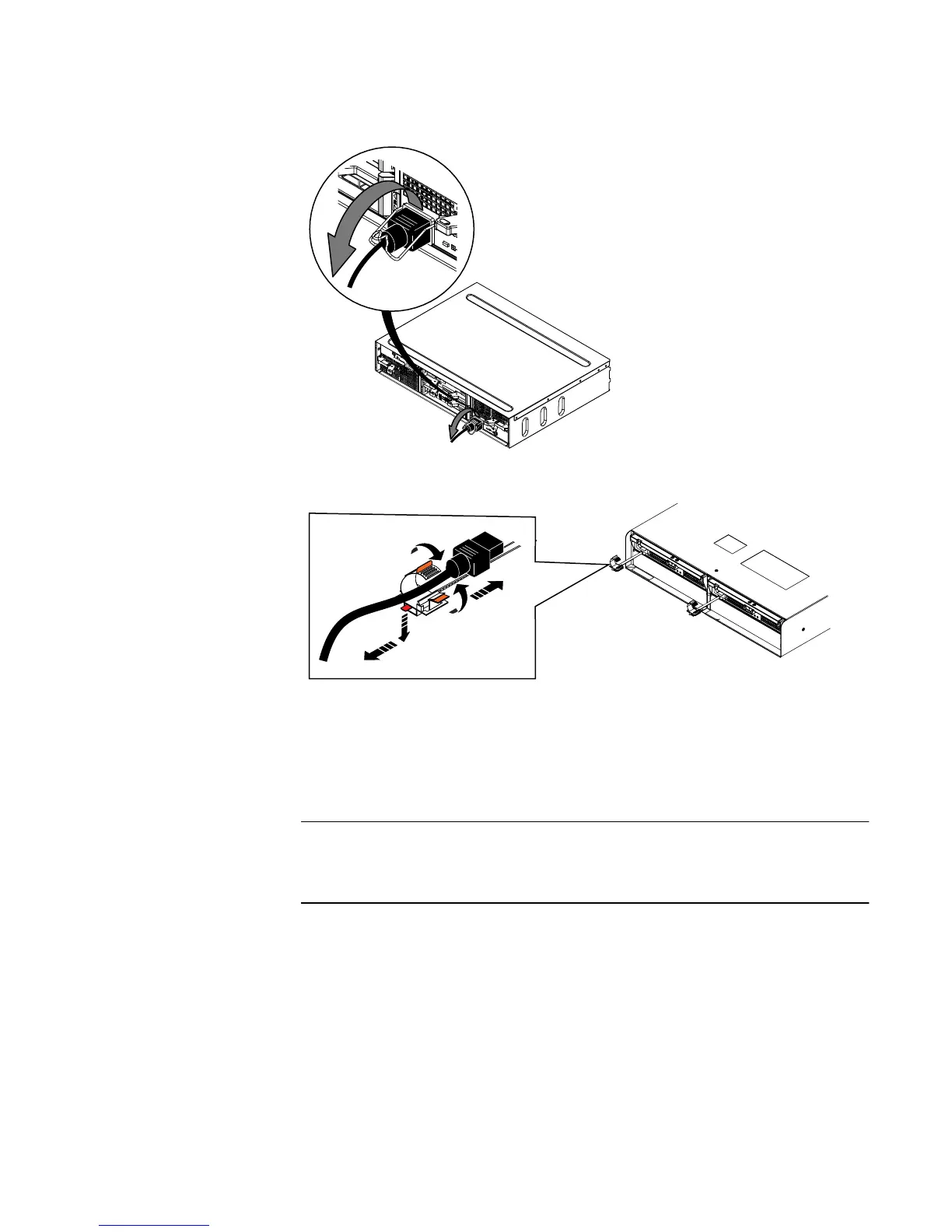

Figure 29 Power cable clips for the 2U 25-disk DAE
Figure 30 Power cable clips for the 2U 12-disk DAE
6. Dress the cables as necessary.
It takes approximately 10-15 minutes for the system to power up. Monitor the system
as it powers up. The LEDs show the progress of system activation. Green, blue, and
amber activity lights blink during the startup sequence. Review the next section for
information on the power up states.
For information about powering down the system, see "Shut down the system" in the
Unisphere online help system.
Verify status LEDs
The system should be available in approximately 15 minutes. Table 4 on page 36,
Figure 32 on page 37, and Figure 33 on page 37 call out only the LEDs that you need
to verify to ensure that the system powered up correctly.
Rack and install
Verify status LEDs 35
