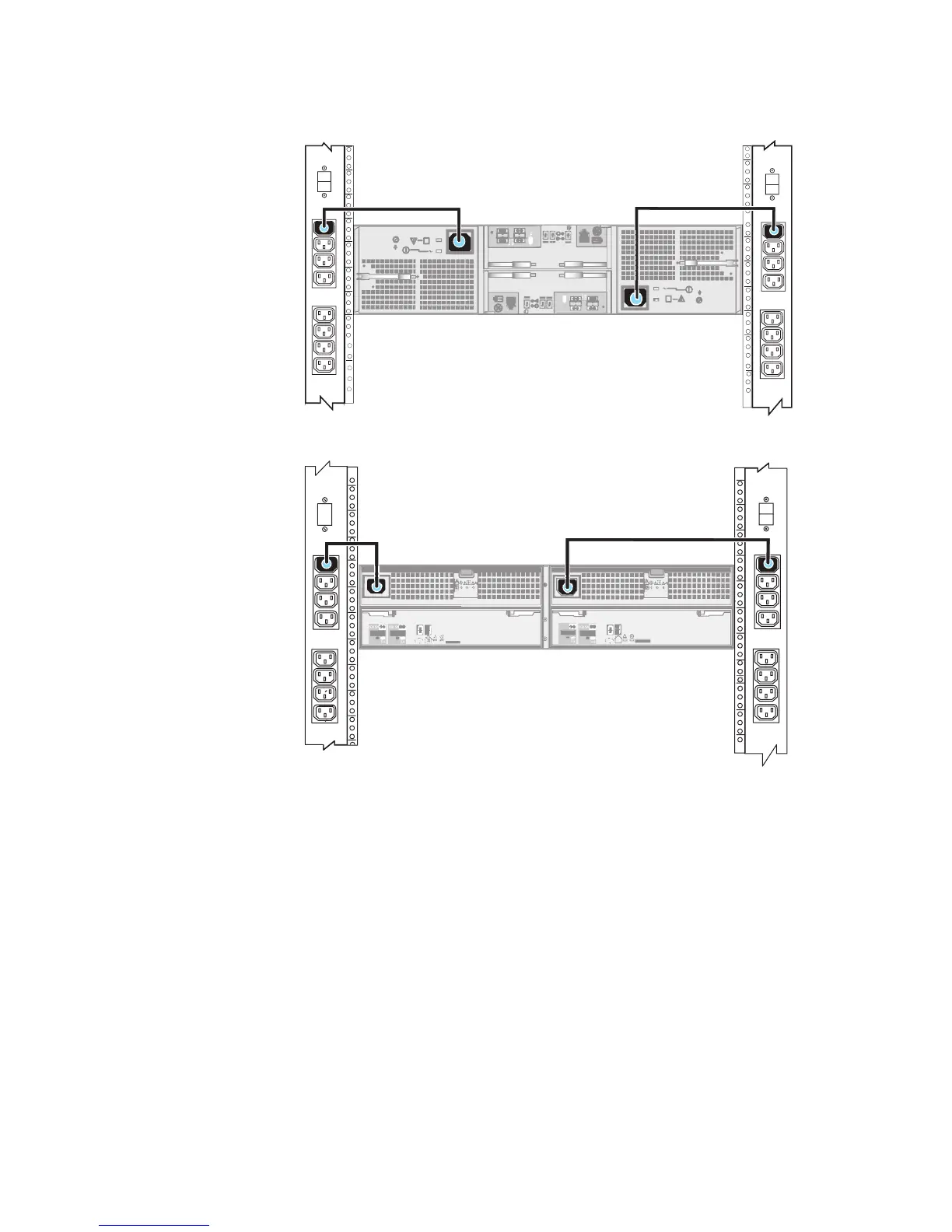

Figure 27 Power cables to DAE with 2.5" drives
X4
#
Figure 28 Power cables to DAE with 3.5" drives
6Gb SAS
#
#
5. Ensure that the DAE power cables are also clipped in place.
Rack and install
34 EMC VNXe2 Series VNXe3200 Installation Guide
