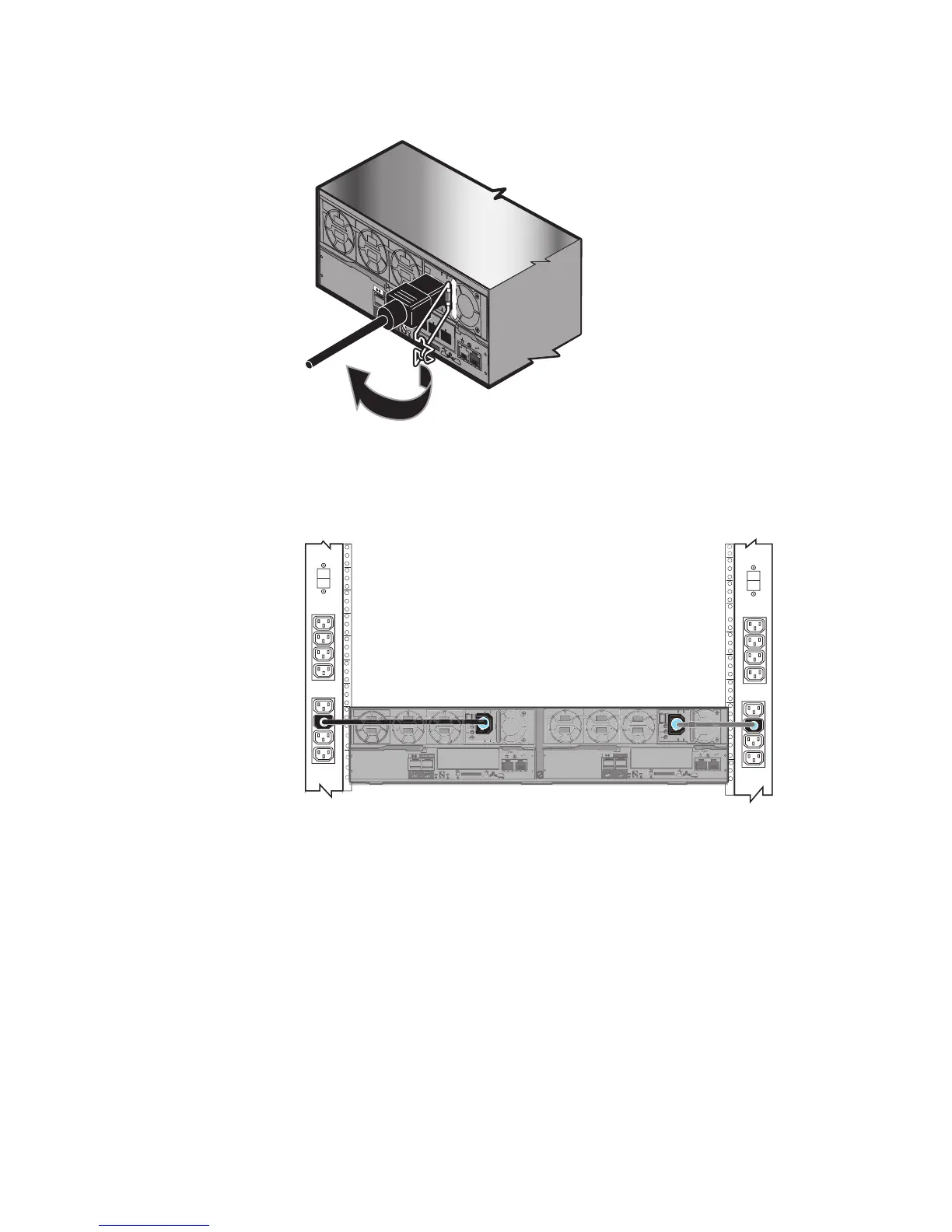

Figure 25 DPE power cable clips
e 0 e 1 e 2 e 3
8 Gb
2/4 Gb
HDMI
1-
x4
0-
6 Gb SAS
1GbE
DC
AC
3. Connect the power to the DPE. Connect the power supply for SP A to PDU A . Connect
the power supply for SP B to PDU B.
The cable to PDU A is gray. The cable to PDU B is black.
Figure 26 Power cables to the DPE
x4
6 Gb SAS
0-
x4
6 Gb SAS
0-
4. Connect the power cables to optional DAEs. Connect the power cable for LCC A to PDU
A. Connect the power cable for LCC B to PDU B.
Both DAE power cables are black. There is no difference between them. The
enclosures start powering up immediately once they are connected to AC power.
