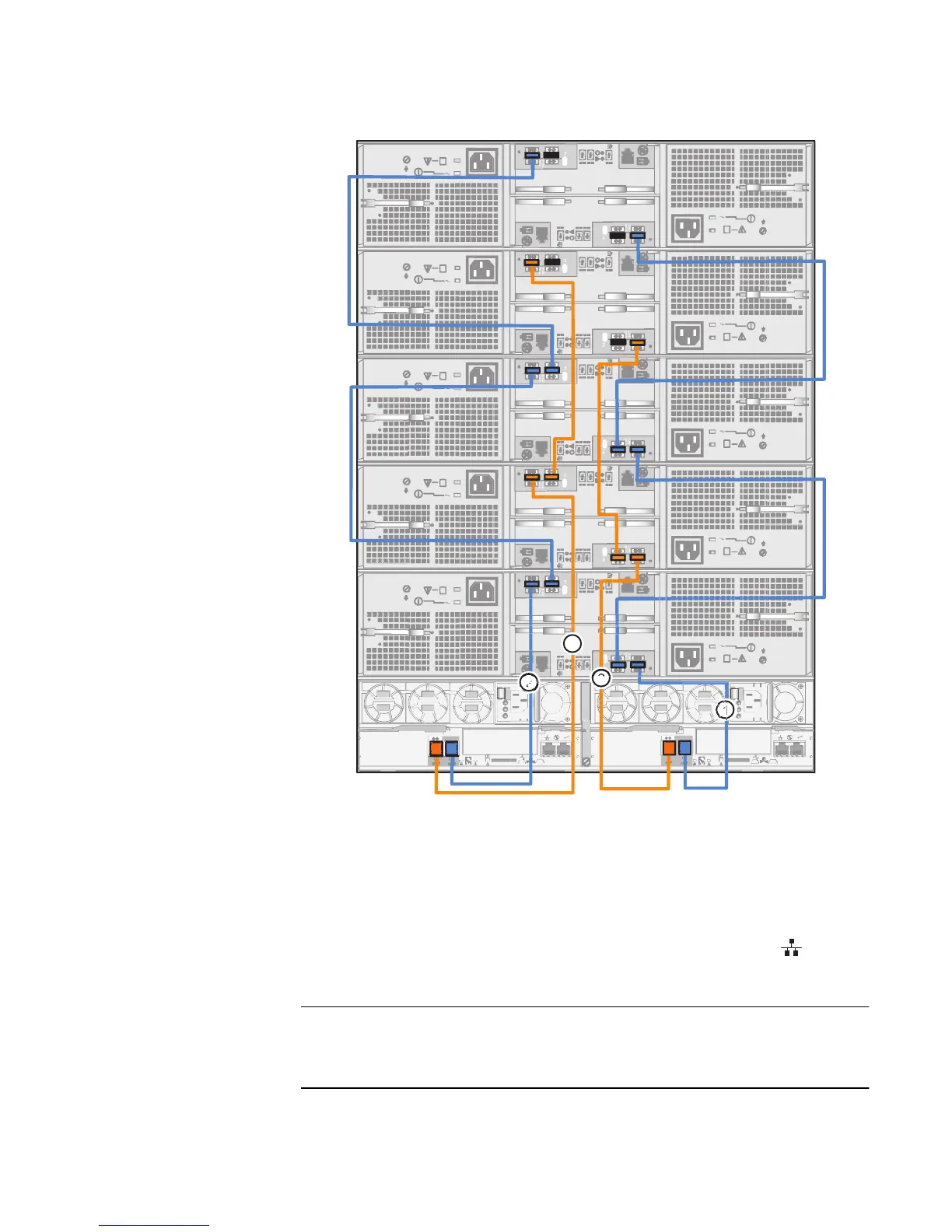

Figure 23 SAS cabling between the DPE and DAEs
DAE 5
DAE 1
DAE 2
DAE 3
DAE 4
DPE
1
2
3
4
Attach the storage processors to the network
Procedure
1. Locate two CAT5e or better Ethernet cables.
2.
Connect two Ethernet cables from the LAN to the 1 Gb RJ45 ports labeled
management from which you will configure the system. This will be one port on each
storage processor. See Figure 24 on page 32.
Note
The SP A and SP B network data ports must be connected on the same subnet. In
general, both SPs should have mirrored configurations in order to provide failover.
Rack and install
Attach the storage processors to the network 31
