I/O modules
Four-port 1-Gb/s copper iSCSI I/O module
The four-port 1-Gb/s copper iSCSI I/O module (labeled 1 GbE iSCSI/TOE on the latch
handle) comes with four 1-Gb/s copper ports, one power/fault LED, and a link and activity
LED for each port (Figure 36). The copper ports on this I/O module can interface at speeds
up to 1 Gb/s for iSCSI (Internet Small Computer System Interface) networks
5
.

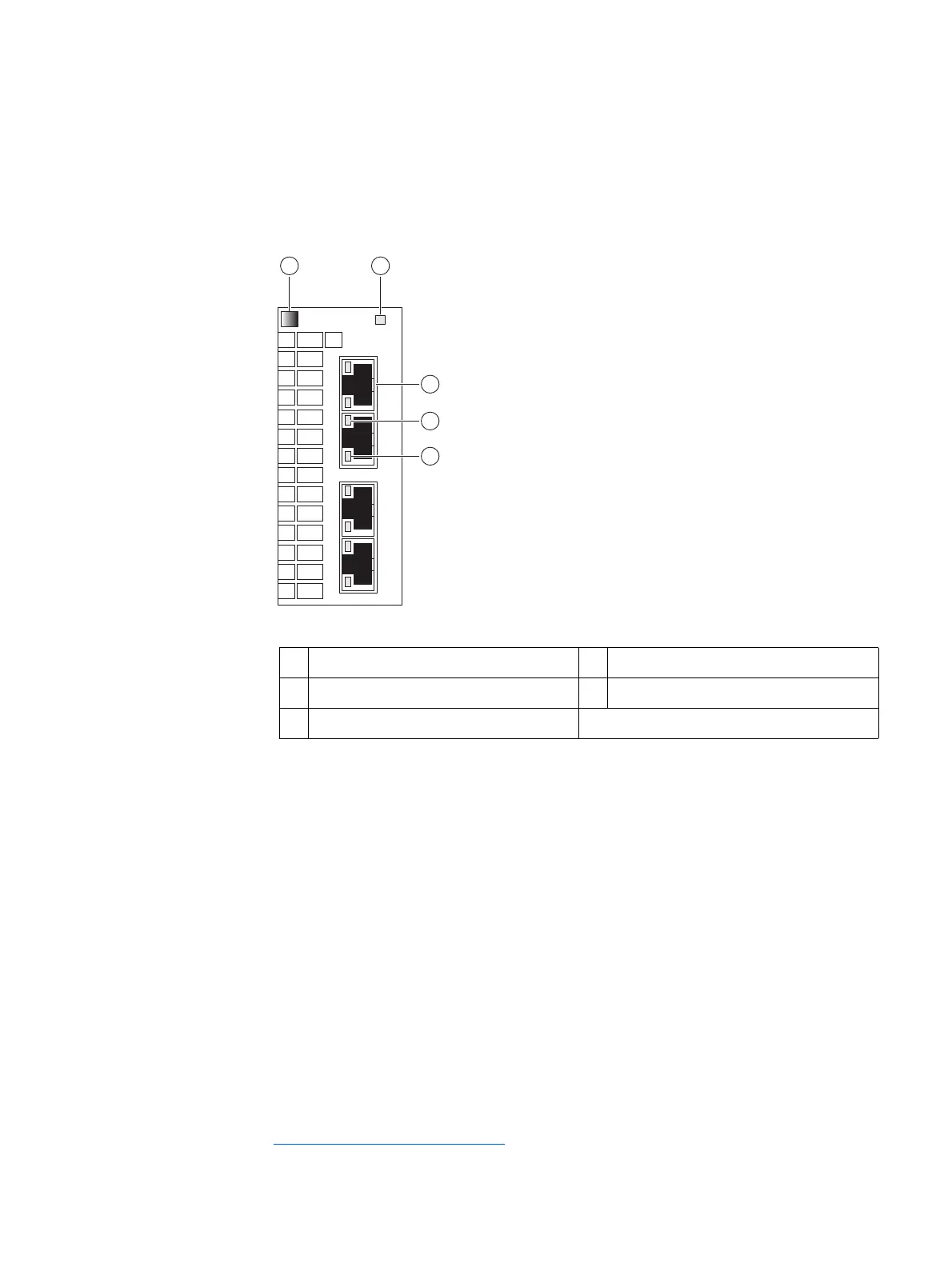

Figure 36 Four-port 1-Gb/s copper iSCSI I/O module
5. iSCSI is a protocol for sending SCSI packets over TCP/IP networks.
1 Push button latch handle 4 RJ-45 link LED
2 Power/fault LED 5 RJ-45 activity LED
3 RJ-45 (copper) port (four)
1 2
3
4
5
CNS-001751
