I/O modules
EMC VNX5400 Hardware Information Guide 57
Two-port 10-Gb/s RJ-45 Base-T I/O module LEDs
The two-port 10-Gb/s RJ-45 Base-T I/O module has three types of status LEDs. Figure 41
shows the LEDs and Table 26 describes them.

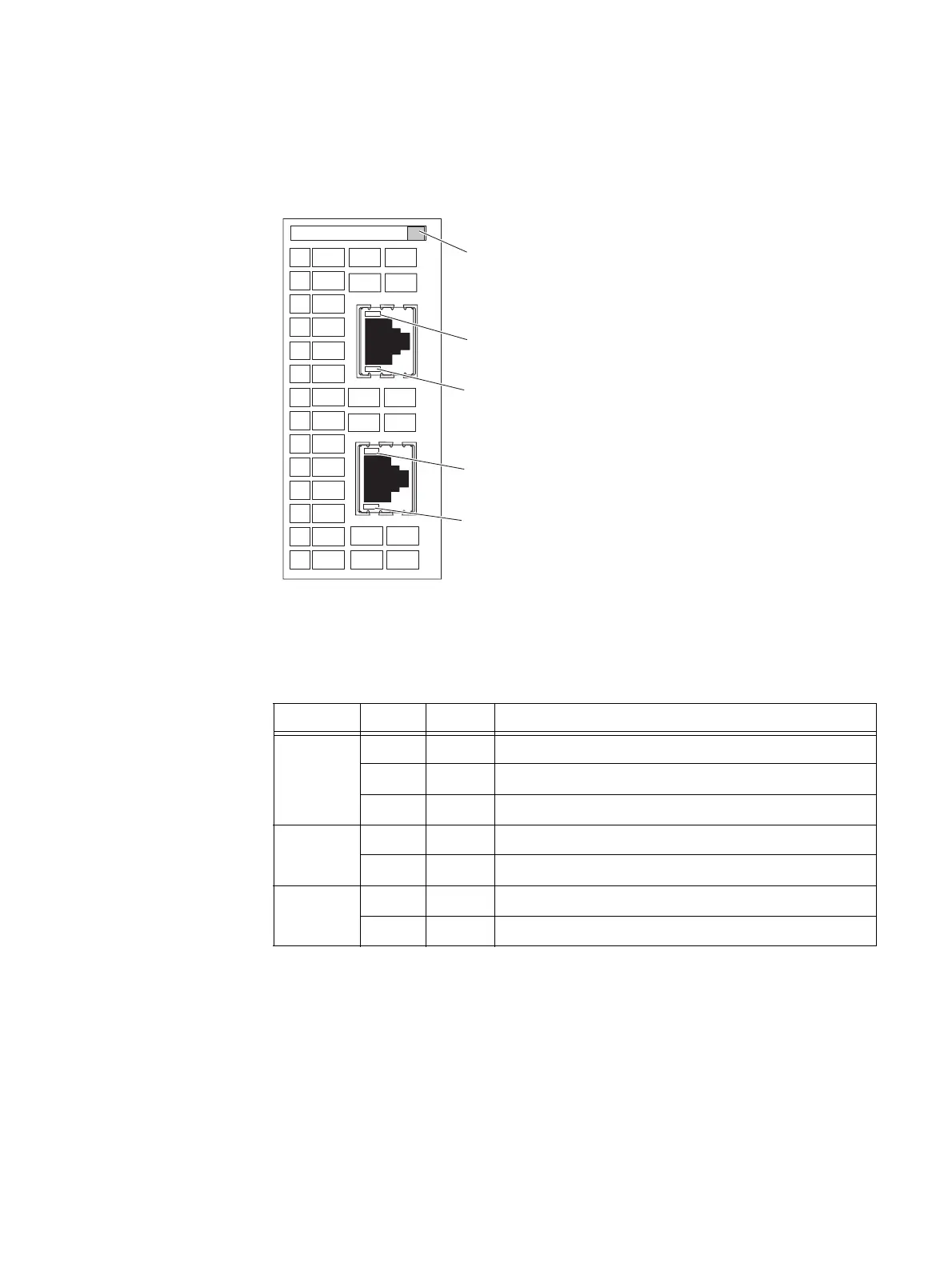

Figure 41 Two-port 10-Gb/s RJ-45 Base-T I/O module LEDs
Power/fault LED
Link LED
Link LED
Activity LED
Activity LED
10
VNXe-000752
Table 26 Two-port 10-Gb/s RJ-45 Base-T I/O module LEDs
LED Color State Description
Power/Fault Green On I/O module is powered up.
Amber On I/O module has faulted.
— Off I/O module is powered down.
Link Green On Network connection
— Off No network connection
Activity Amber Blinking Transmit/receive activity
— Off No activity
