Four-port 1-Gb/s copper I/O module
The four-port 1-Gb/s copper I/O module (labeled 1 GbE on the latch handle) comes with
four copper ports, one power/fault LED, and a link and activity LED for each copper port
(Figure 46). This I/O module can interface at speeds of 10 Mb/s, 100 Mb/s, and
1000 Mb/s (1 Gb/s). Another way to describe this type of module is that it runs Ethernet
over twisted pair.

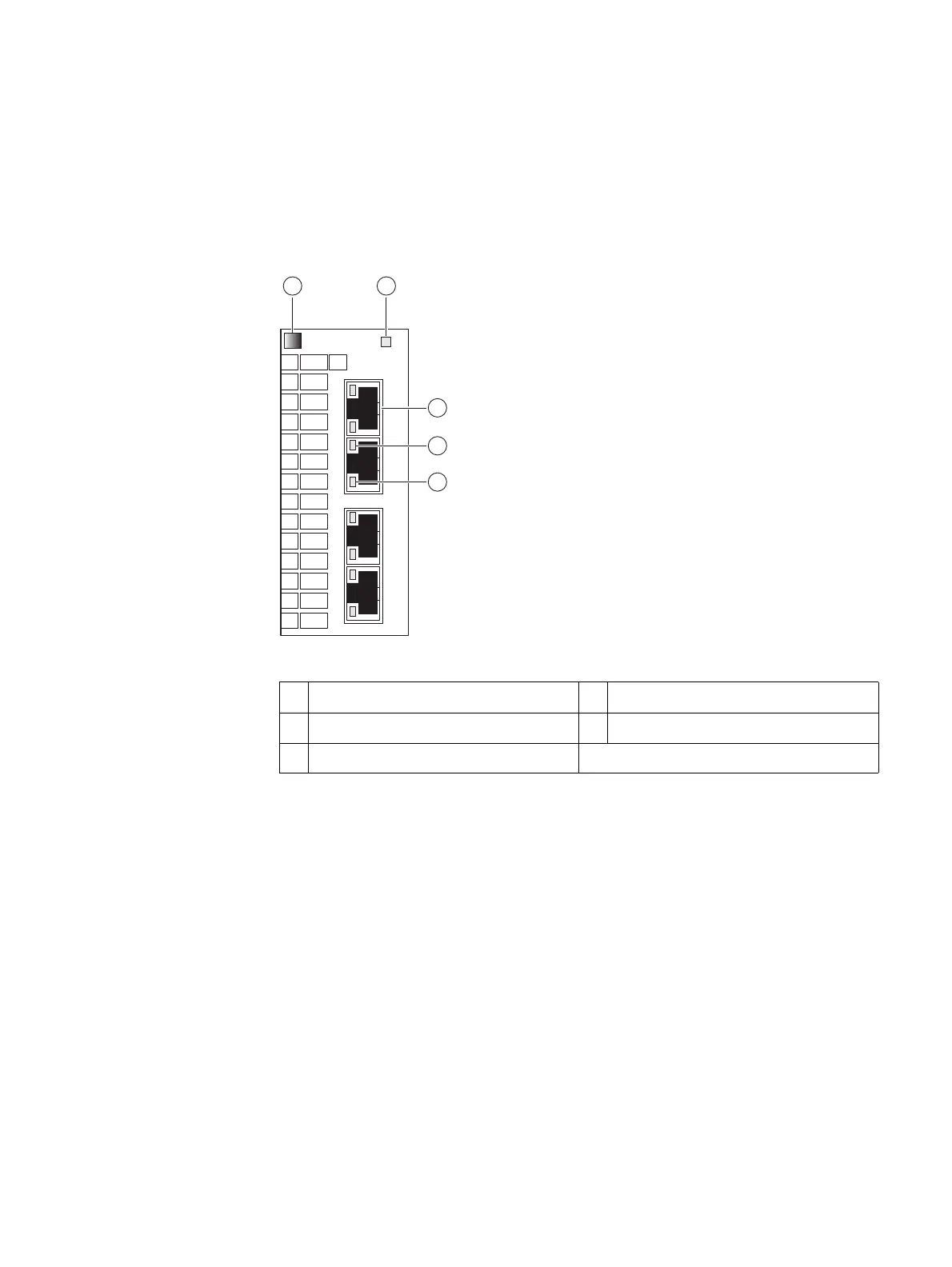

Figure 46 Four-port 1-Gb/s copper I/O module
1 Push button latch handle 4 RJ-45 link LED
2 Power/fault LED 5 RJ-45 activity LED
3 RJ-45 (copper) port (four)
1 2
3
4
5
CNS-001751
