I/O modules
Two-port 10-Gb/s RJ-45 Base-T I/O module LEDs

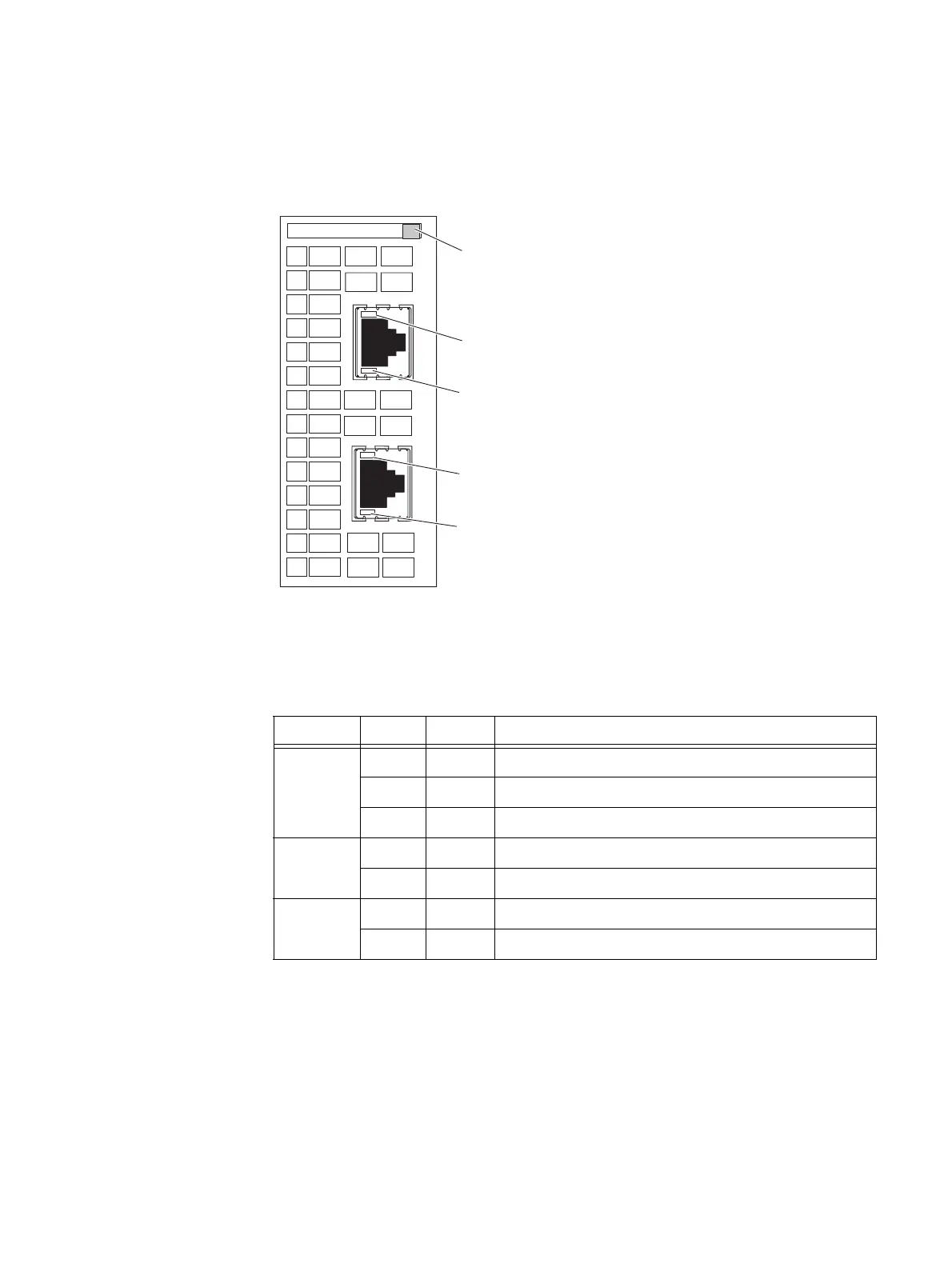

The two-port 10-Gb/s RJ-45 Base-T I/O module has three types of status LEDs. Figure 51
shows the LEDs and Table 31 describes them.
Figure 51 Two-port 10-Gb/s RJ-45 Base-T I/O module LEDs
Power/fault LED
Link LED
Link LED
Activity LED
Activity LED
10
VNXe-000752
Table 31 Two-port 10-Gb/s RJ-45 Base-T I/O module LEDs
LED Color State Description
Power/Fault Green On I/O module is powered up.
Amber On I/O module has faulted.
— Off I/O module is powered down.
Link Green On Network connection
— Off No network connection
Activity Amber Blinking Transmit/receive activity
— Off No activity
