6-Gb/s mini-SAS port LEDs and port direction (input or output) — Figure 56 shows the
6-Gb/s mini-SAS port LED—a bi-color (blue/green) LED next to the connector, either left or
right—that indicates the link/activity of the mini-SAS port.

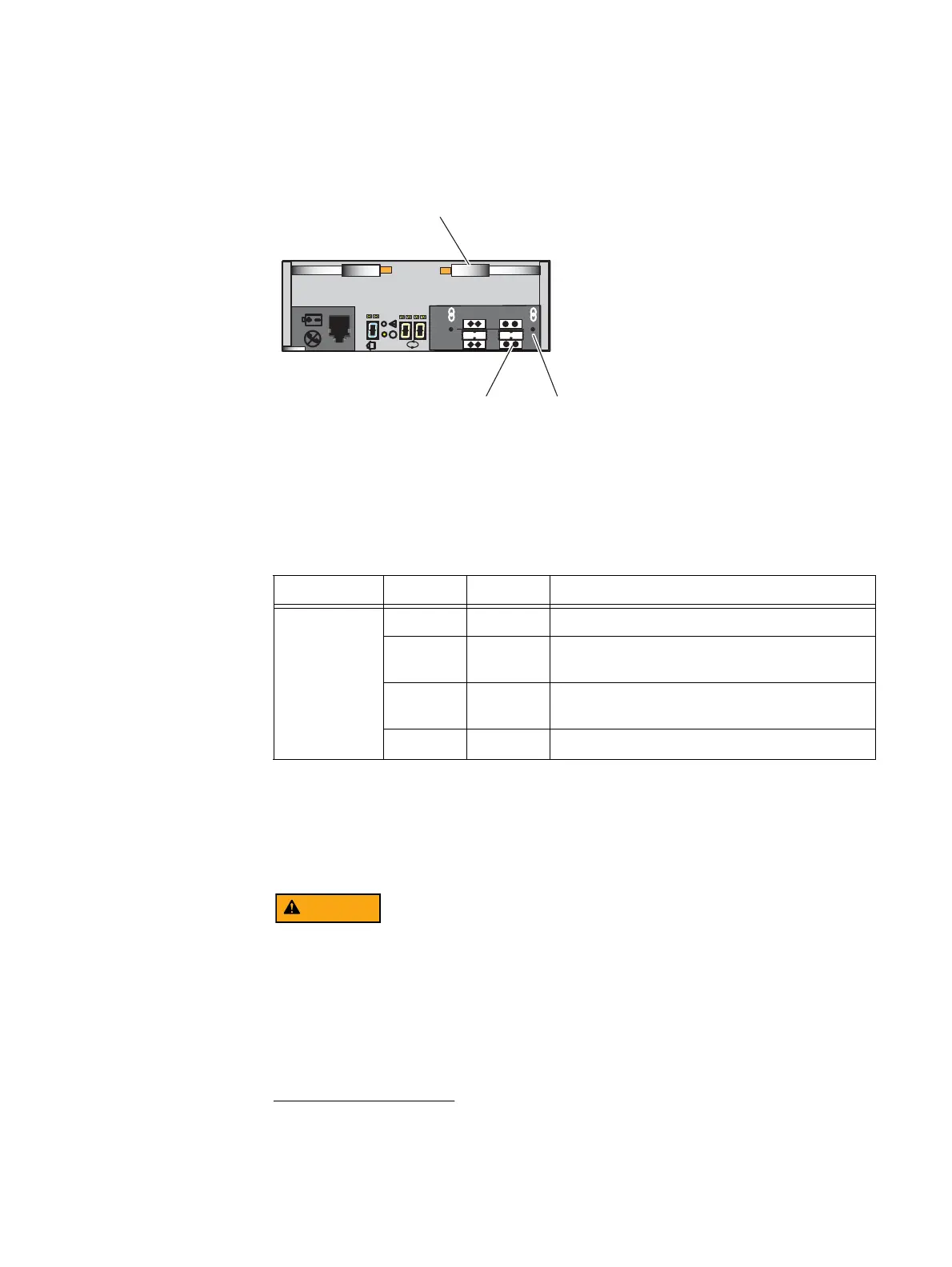

Figure 56 6-Gb/s mini-SAS port LED
Table 34 describes the 2U DAE LCC 6-Gb/s mini-SAS port LEDs.
Management (RJ-12) port (not used in the VNX5400 platform) — Figure 57 on page 79
shows the management port (labeled with two symbols; one depicting a telephone
handset with a line through it and the other depicting a battery). The telephone handset
with a line through it symbol means that you cannot connect telephone type circuits to
this connector (see the following WARNING).
The LCC (RJ-12) port is a LAN port not a WAN port. LAN ports contain safety extra-low
voltage (SELV) circuits, and WAN ports contain telephone-network voltage (TNV) circuits.
An RJ-45 (or TNV-type) looks the same as the RJ-12 except for two very important
differences. An RJ-45 is an 8-wire modular jack. The RJ-12 is a six-wire modular jack. The
RJ-45 plugs and jacks are wider than their RJ-12 counterparts - 7/16" vs 3/8". An RJ-45
plug won't fit into an R-J12 jack. But an RJ-12 plug will fit into an RJ-45 jack. Use caution
when connecting cables. To avoid electric shock, do not attempt to connect TNV circuits
to SELV circuits.
6 Gb
SAS
X4
#
Latch handle
X4
Link LED
VNX-000274
6 Gb/s mini-SAS port
Table 34 6-Gb/s mini-SAS port LEDs
LED Color State Description
Link/activity Blue On All lanes are running at 6 GB/s
Green On One or more lanes is not running at full speed or
disconnected
Alternating
Blue/Green
Blinking Port is being marked by the host
—OffNot connected
