Hint:
The assignment of receiver channels according to the print image of the DPSI RV
housing is just a suggestion! In any case, the assignment can be arbitrary. This
means, receiver channel 1 must not necessarily be connected to channel 1 of the
DPSI RV. It is just important, that the corresponding servo outputs fit to the
corresponding receiver inputs at the DPSI RV (e.g. receiver input 2 to servo
output 2). Therefore, receiver channel 1 can be connected to DPSI RV input 2. In
this case, servos at output 2 are driven by receiver channel 1.
In the case of the DPSI RV Mini, it is important that the plugs be
correctly connected, since the servo and receiver connections are
located on a multipoint connector.

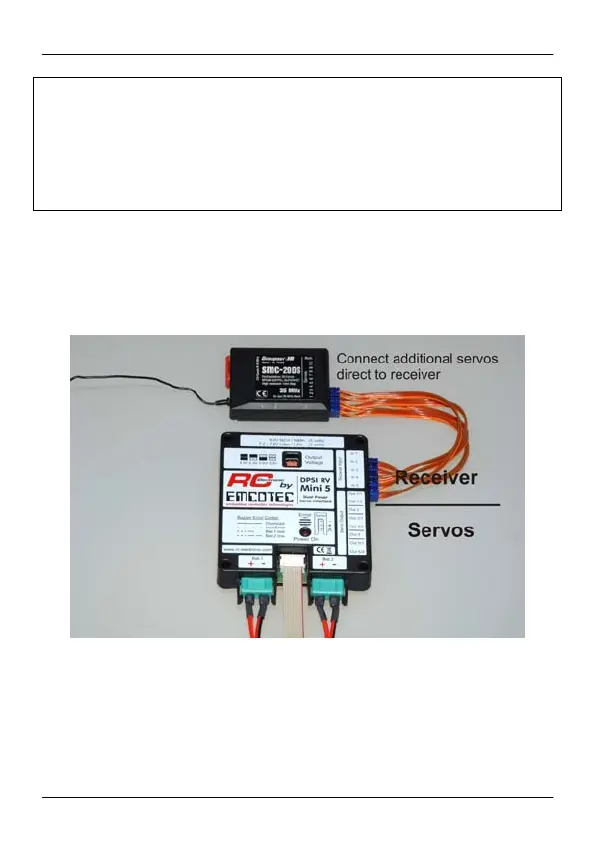

Receiver connection on the DPSI RV Mini:
It is possible for the larger systems (DPSI 2001 RV and DPSI RV) to
use two receivers. The connection cables desired in each case are
then connected to the receiver at which they are needed.
