DPSI RV Family Operating Instructions Version 2.0
Page 35 of 48
5.10. Connecting the Servos
The DPSI RV Mini 5 (ESP) distributes 5 receiver channels to a total
of 8 servos (3 V-cables “built in”).
The DPSI RV Mini 6 (ESP) distributes 6 receiver channels to a total
of 7 servos (1 V-cable “built in”).
The DPSI 2001 RV distributes 10 receiver channels to a total
of 26 servos (8 multiple V-cables “built in”).
The DPSI RV distributes 12 receiver channels to a total
of 32 servos (8 multiple V-cables “built in”).
For this purpose, a distribution that enables a number of combinations
has been selected.

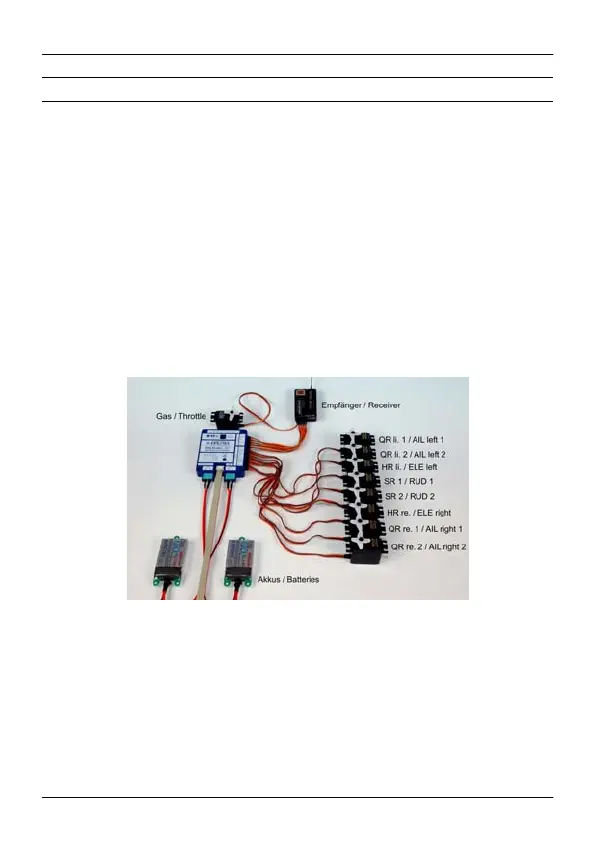

Connection scheme of the “DPSI RV Mini 5”:
In this example, a total of 8 servos are connected to the DPSI RV Mini
5, the throttle servo directly to the receiver. For all servos connected to
the DPSI RV Mini, the pulse wire has to be at the bottom (given by the
pushing direction (chamfered nose) of the housing). We discourage
from connecting more than 10 servos in the whole system when using
a DPSI RV Mini, because current limit can be reached or the thermal
load could get too high.
