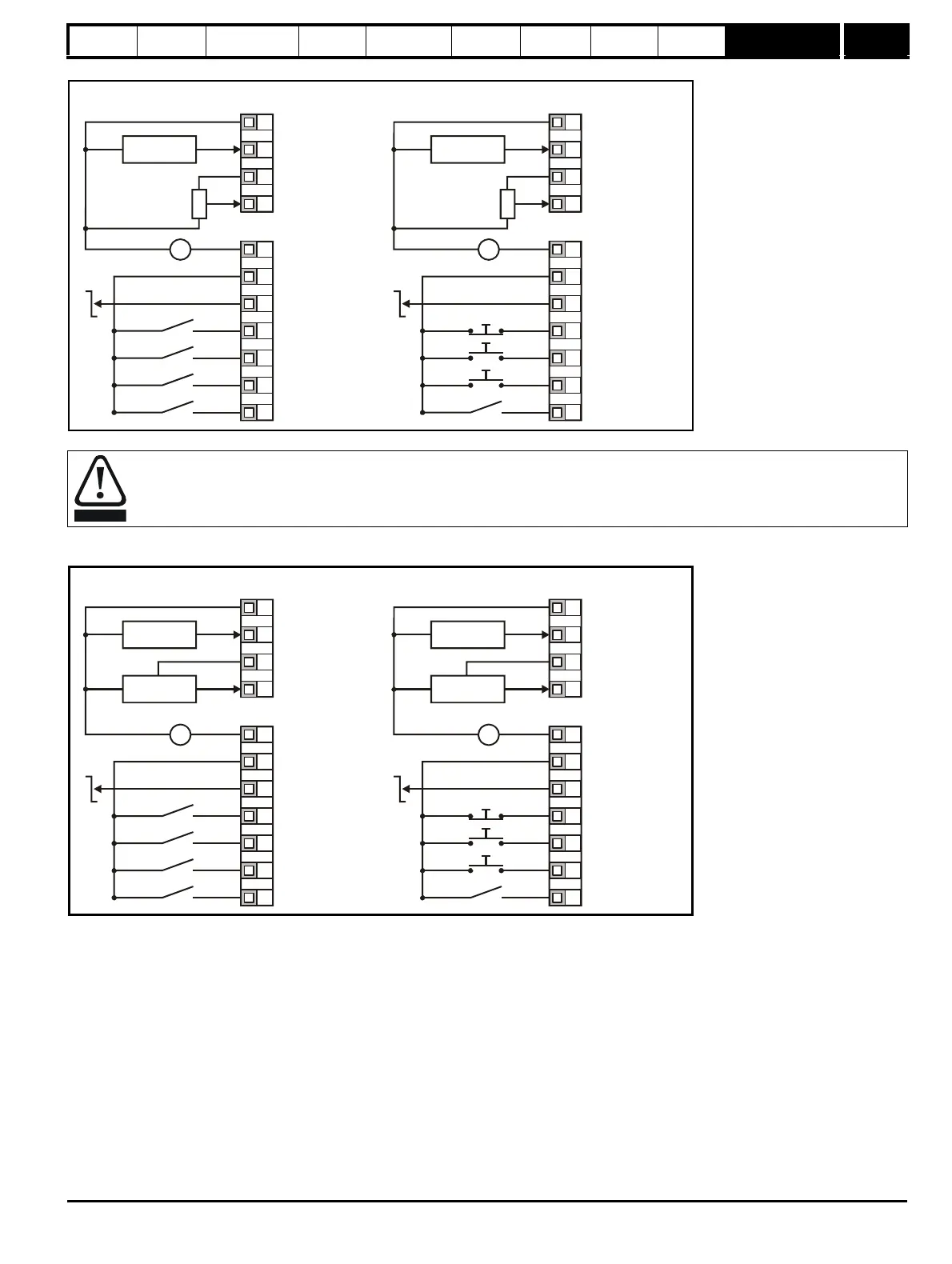

Figure 10-32 Pr 11.27 = tor
Figure 10-33 Pr 11.27 = Pid
When Pr 11.27 is set to Pid, the following parameters are made available for adjustment:
•Pr 14.10: PID proportional gain
•Pr 14.11: PID integral gain
•Pr 14.06: PID feedback invert
•Pr 14.13: PID high limit (%)
•Pr 14.14: PID low limit (%)
•Pr 14.01: PID output (%)
When torque mode is selected and the drive is connected to an unloaded motor, the motor speed may increase rapidly to the maximum
speed (Pr 02 +20%)
