Emerson FB2200 Flow Computer Instruction Manual
D301784X012
March 2019
Service and Troubleshooting 97
3.
Loosen the two captive fastening screws at the top of the of the battery compartment and
hold the battery compartment door as you carefully rotate the electronics assembly towards
you to reveal the inside of the battery compartment. A strap prevents the front of the
compartment from rotating too far forward.

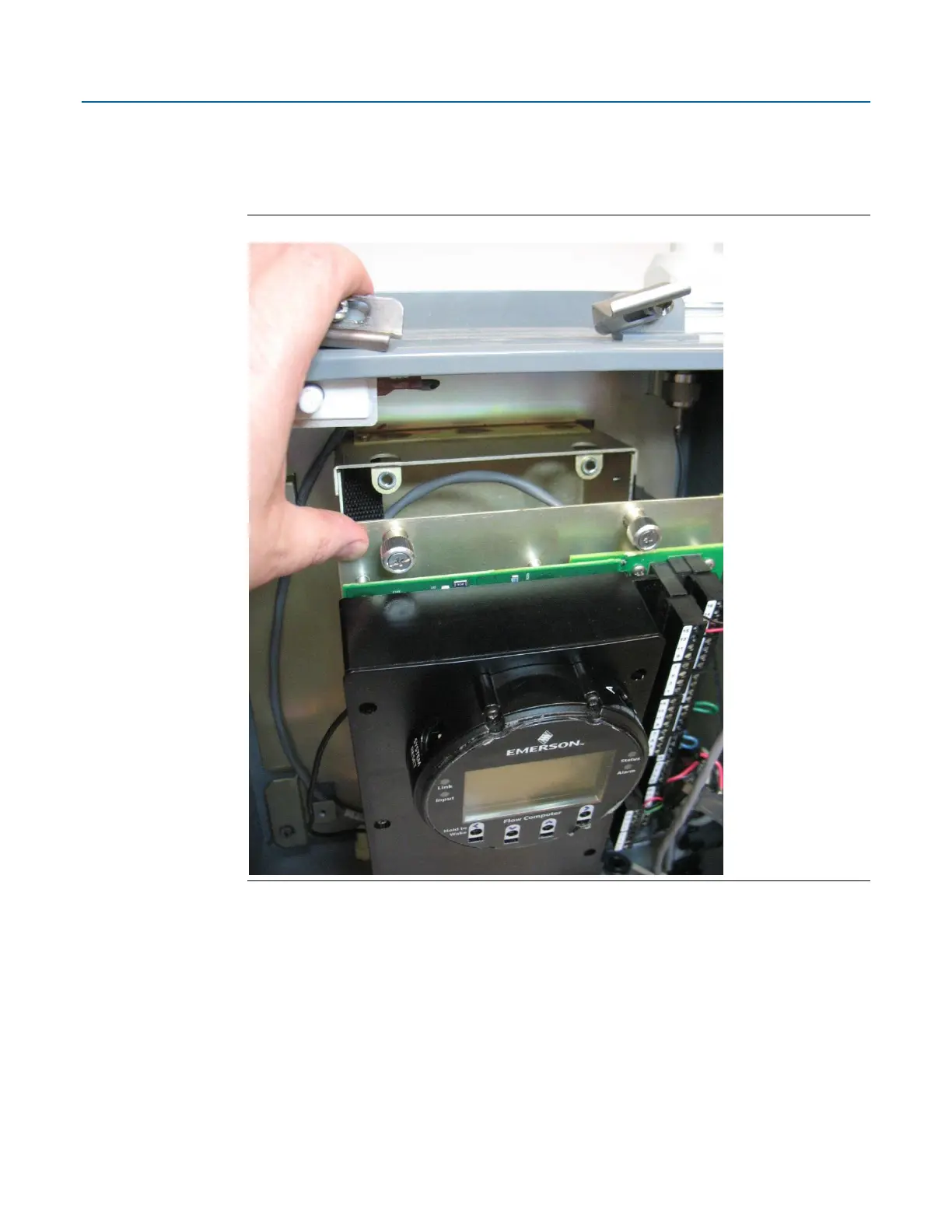

Figure 5-7. Loosen Captive Fastening Screws and Rotate Assembly Forward
4.
Remove the battery:
If a hook and loop pad holds the battery, see the instructions in Step 5.
If a strap holds the battery, skip to Steps 6 and 7.
5.
Follow this step if you have the configuration where a hook-and-loop pad on the back of the
battery secures it to the back of the battery compartment (otherwise skip to Steps 6 and 7).
Leave the connectors on the current battery connected. Place your fingers behind the
battery pack and pry it off the fastener on the back of the compartment; you may need to
use both hands. Gently lift the battery with the battery cable attached out of the
compartment. Now skip to Step 8.
