Emerson FB2200 Flow Computer Instruction Manual
D301784X012
March 2019
98 Service and Troubleshooting

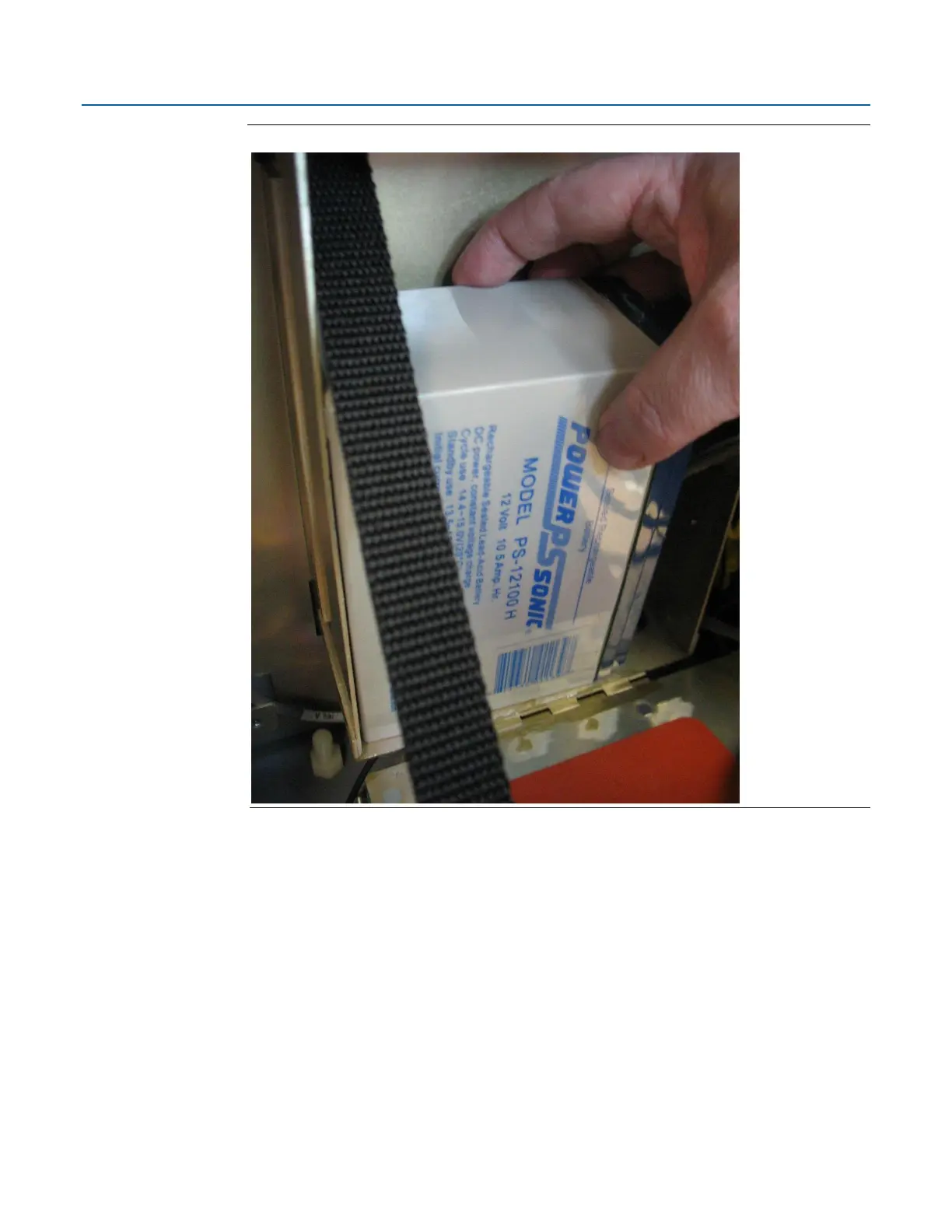

Figure 5-8. Pry Out the Old Battery Pack – Leave Connected to Cable
6.
If you have an internal solar regulator installed in the battery compartment, you must
remove the termination cover. Remove the two screws (left and right) that fasten the
termination cover to the solar regulator, and then set the termination cover aside. (If you
don’t have an internal solar regulator, skip to Step 7.)
