Emerson FB2200 Flow Computer Instruction Manual
D301784X012
March 2019
102 Service and Troubleshooting

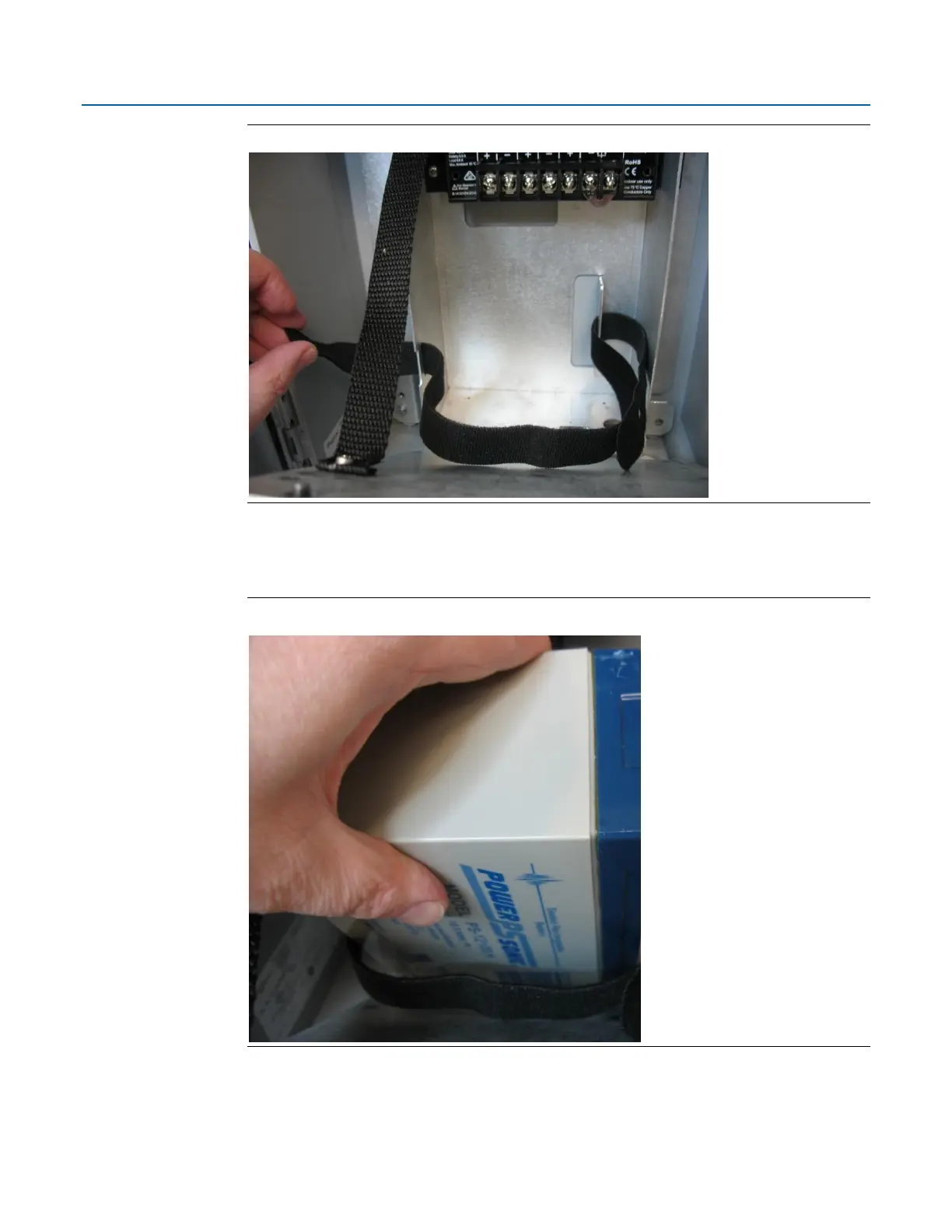

Figure 5-14. Thread the Battery Strap
14. Pick up the new battery and carefully ease it into the battery compartment with the writing
on the battery facing out and the connectors on the upper right-hand side. Nothing
(including the strap) can be behind the battery.
Figure 5-15. Ease the Battery into the Battery Compartment
15. Carefully push the battery under the solar regulator (if present) and against the back of the
compartment, now strap it in tightly by pulling the ends of the strap.
