Emerson FB2200 Flow Computer Instruction Manual
D301784X012
March 2019
Service and Troubleshooting 101
10.
Now disconnect the
old
battery from its connectors and set the old battery aside (be sure to
dispose of it safely according to local regulations).

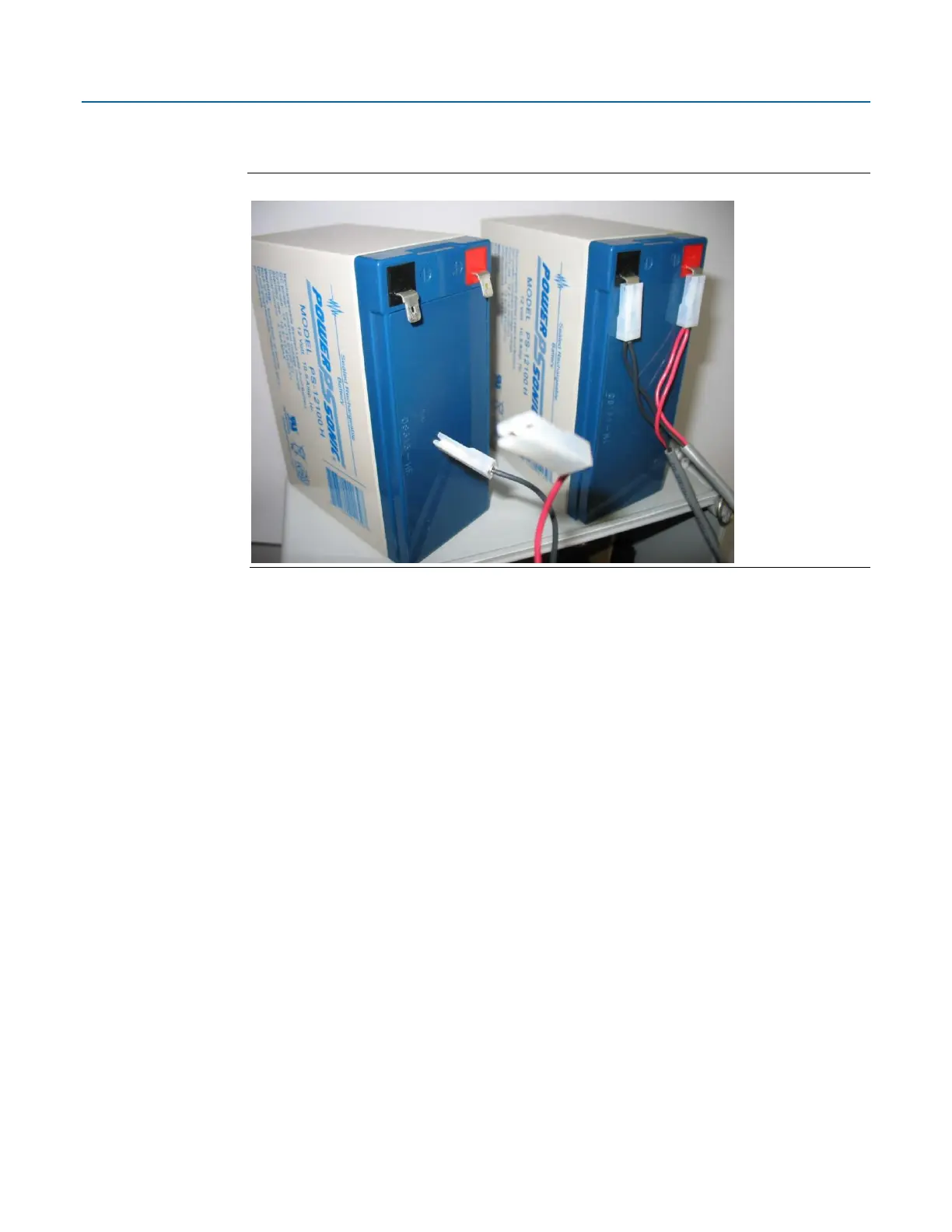

Figure 5-13. Old Battery Disconnected (left), New Battery Remains Connected (right)
11.
Put the battery in the battery compartment:
If a hook and loop pad holds the battery, see the instructions in Step 12.
If a strap holds the battery, skip to Steps 13 through 18.
12.
Pick up the new battery and align it with the lower left edge of the battery compartment.
Press it against the back of the compartment so the fastener pad on the back of the battery
secures to the back of the battery compartment. Route the wires of the free portion of the
battery cable so that they sit in the open area at the top of the battery compartment. Skip to
Step 19.
13.
Thread the battery strap through the holes of the battery compartment, if it is not already
threaded.
