Emerson FB2200 Flow Computer Instruction Manual
D301784X012
March 2019
100 Service and Troubleshooting

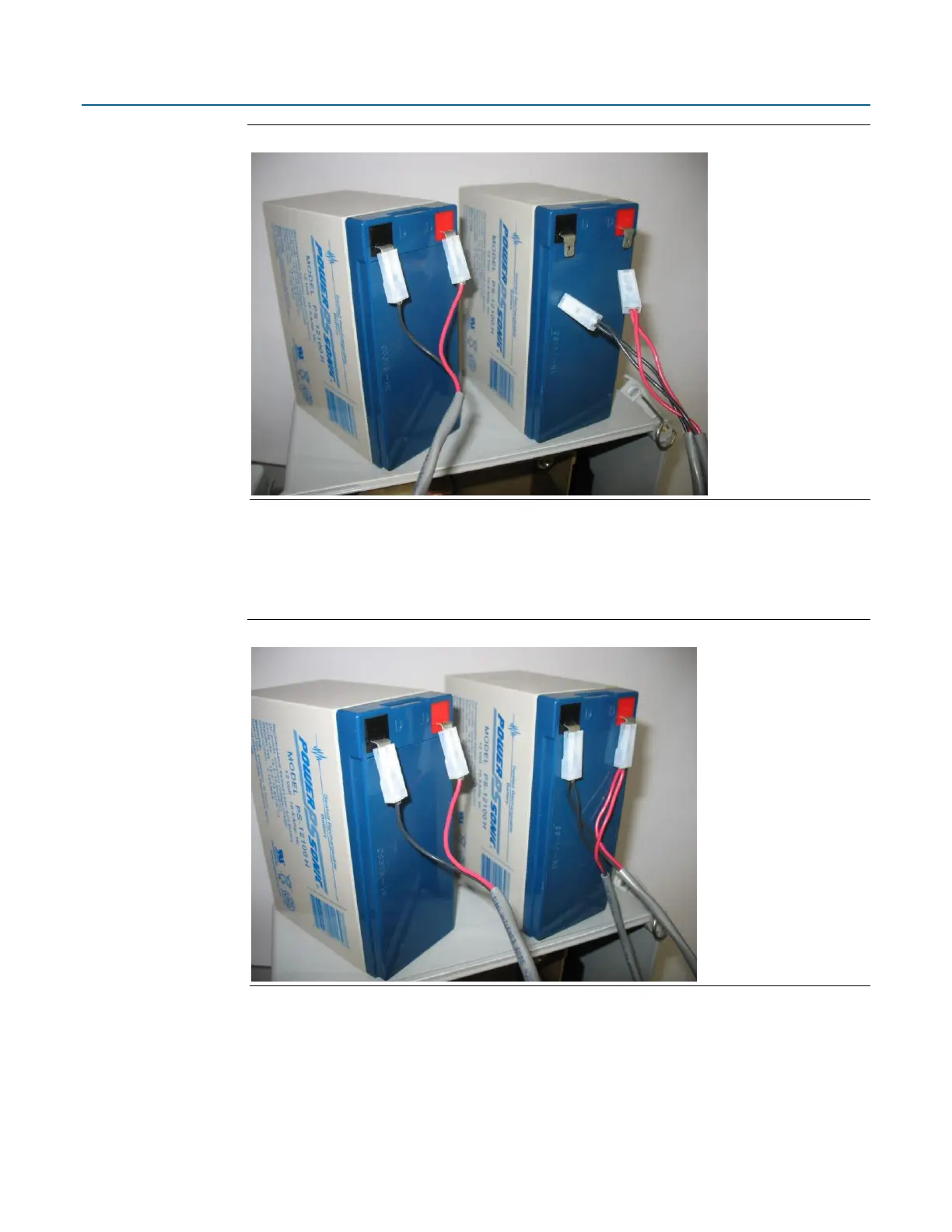

Figure 5-11. Old Battery (left) and New Battery (right) Sit on Enclosure
9.
The battery cable is divided into two branches, each with its own pair of connectors. Take the
free pair of connectors and connect them to the
new
battery; the red (positive) wire
connector attaches to the red connection point on the new battery and the black (negative)
wire connector attaches to the black connection point on the new battery.
Figure 5-12. Connect New Battery – Both Now Connected
