2.10.2.2 Securing the Battery with a Strap
This type of battery compartment allows for certain accessories to be installed such as a relay or
internal solar regulator.
1. If you have an internal solar regulator installed in the battery compartment, you must
remove its termination cover in order to fit the battery inside. Remove the two screws (left
and right) that fasten the termination cover to the solar regulator, and then set the
termination cover aside. (If you don’t have an internal solar regulator, skip to Step 2.)

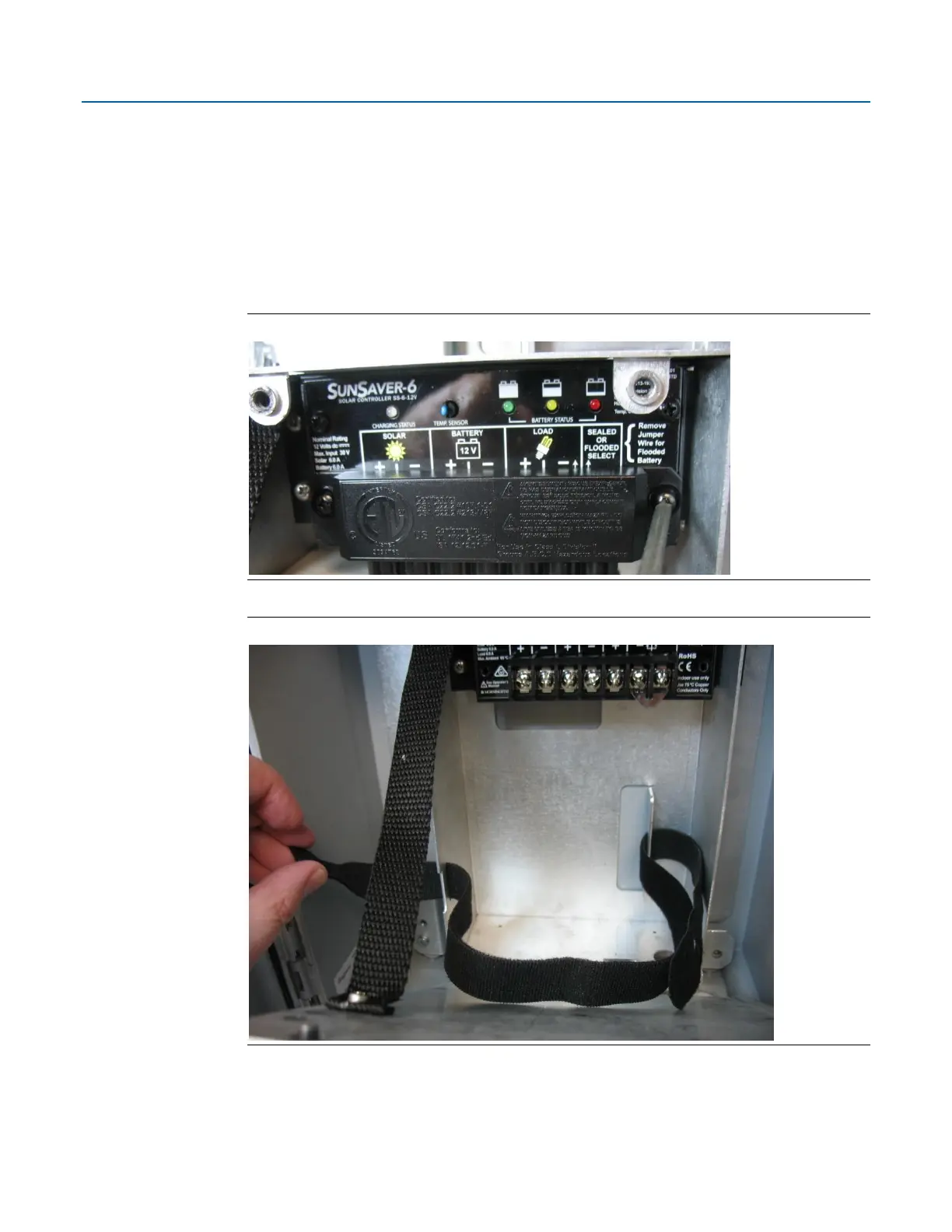

Figure 2-27. Removing Termination Cover of Internal Solar Regulator
2. The battery strap must already be threaded through the holes of the battery compartment.
Figure 2-28. Battery Strap
3. Pick up the battery and carefully ease it into the battery compartment with the writing on
the battery facing out and the connectors on the upper right-hand side. Nothing (including
the strap) can be behind the battery.
