Emerson FB2200 Flow Computer Instruction Manual
D301784X012
March 2019
42 Installation

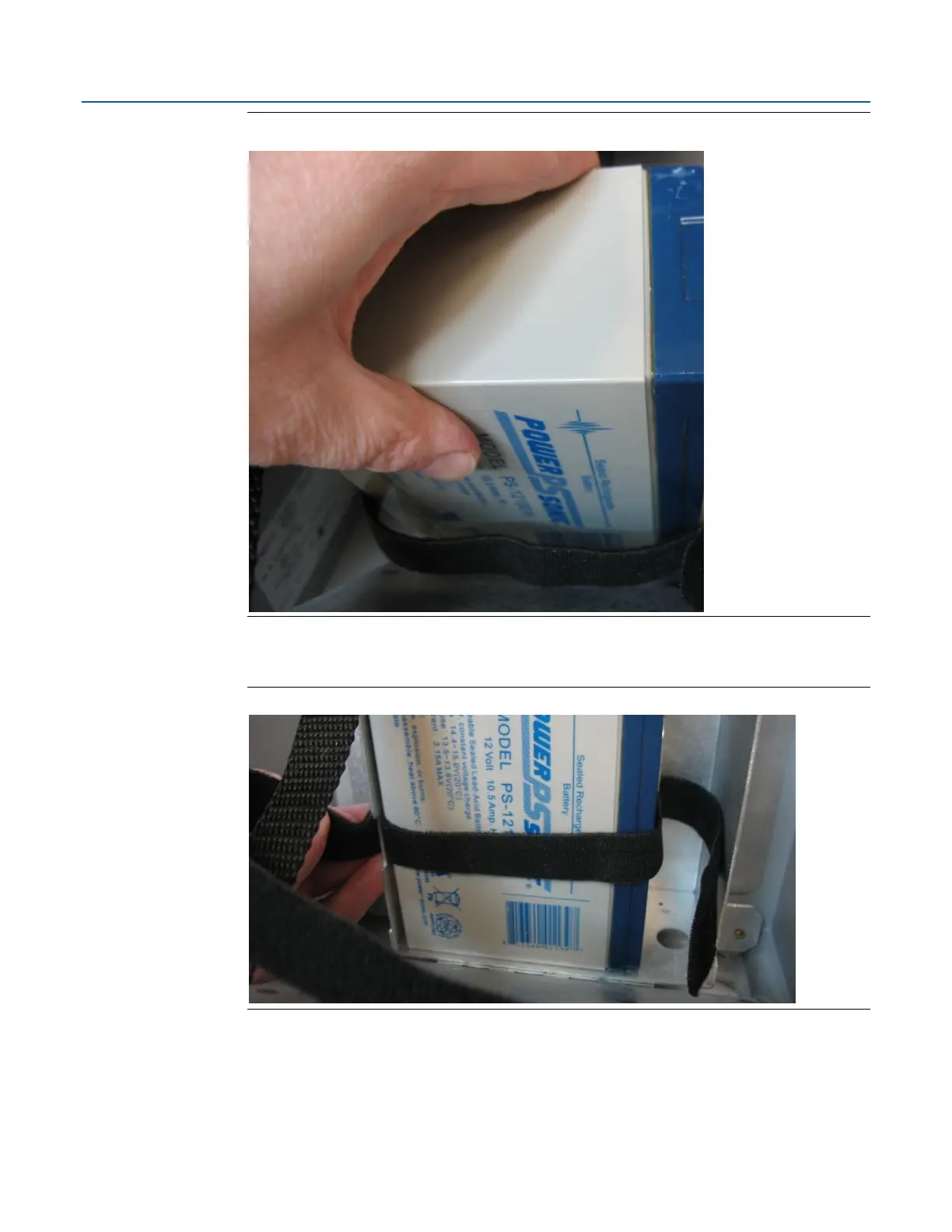

Figure 2-29. Easing Battery Pack into Compartment
4. Carefully push the battery under the solar regulator (if present) and against the back of the
compartment, now strap it in tightly by pulling the ends of the strap.
Figure 2-30. Battery Pack Attached to Compartment
5. The strap includes a narrow opening into which you can slide the other end of the strap to
help you tighten it.
