Emerson FB2200 Flow Computer Instruction Manual
D301784X012
March 2019
Installation 43

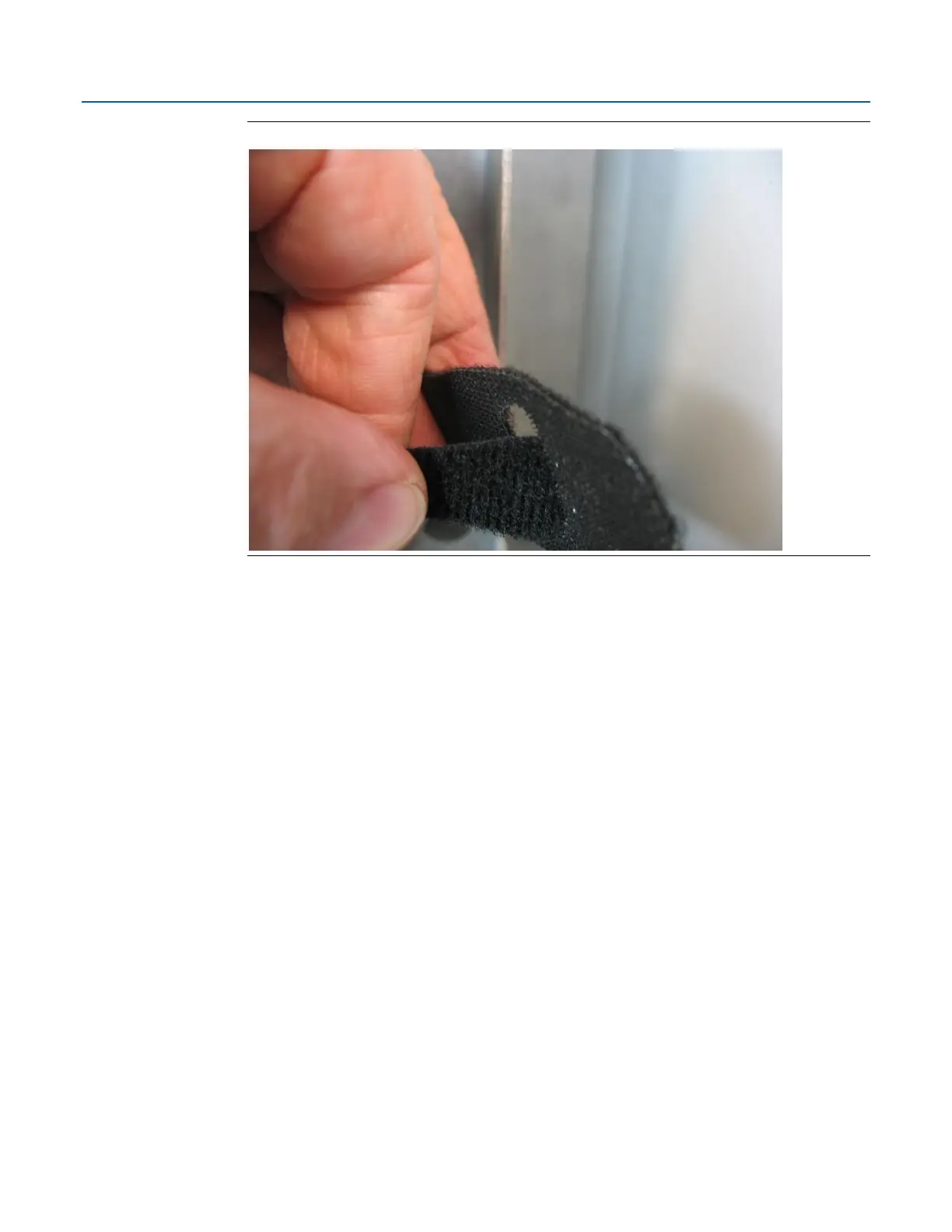

Figure 2-31. Battery Pack Attached to Compartment
6. Route the extra portion of the strap as well as the wires of the free portion of the battery
cable so that they sit in an open area of the battery compartment.
7. If you had to remove the termination cover of an internal solar regulator (Step 1), re-attach
the termination cover.
8. Rotate the electronics assembly up against the battery compartment and tighten the captive
fastening screws with a torque value of 2 to 4 in-lbs. (0.2 to 0.5 N m) to close the
compartment.
2.10.2.3 Securing the Battery to the Pad
For this type of battery compartment, a hook-and-loop adhesive
pad on the back of the battery
secures it to the back of the battery compartment.
1.
Pick up the battery and align it with the lower left edge of the battery compartment. Press it
against the back of the compartment so the pad on the back of the battery secures to the
back of the battery compartment.
