Emerson FB2200 Flow Computer Instruction Manual
D301784X012
March 2019
44 Installation

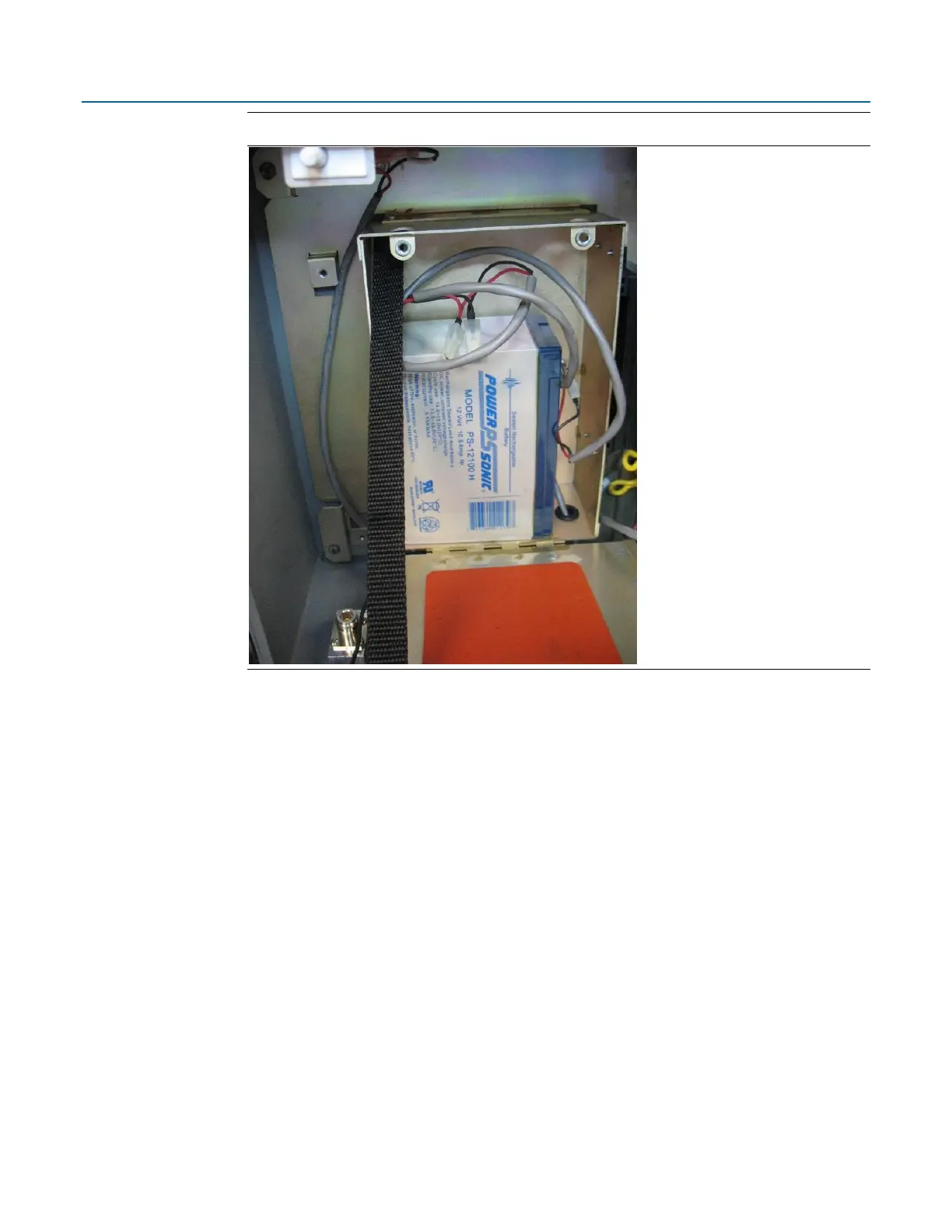

Figure 2-32. Battery Pack Attached to Compartment
2.
Route the wires of the free portion of the battery cable so that they sit completely inside the
open area at the top of the battery compartment.
3.
Rotate the electronics assembly up against the battery compartment and tighten the captive
fastening screws with a torque value of 2 to 4 in-lbs (0.2 to 0.5 N m) to close the
compartment.
4.
Close the enclosure.
