The Service Tools|Flow Data page includes charts for flow and sound velocities.
The flow values (flow direction, average flow velocity and average sound
velocity) parameters are displayed for the connected device.
d. Click Service Tools|Variables|Path Information tab to view the device’s chord
performance (%), Gain (dB), SNR (dB), Signal (mV) and Noise (mV).
e. Click Service Tools|Variables|Flow Totals to view the volume totals (forward and
reverse Uncorrected Volume) parameters for the connected device.
f. Click Service Tools|Variables|All Variables tab to view Primary, Secondary, Third
and Fourth Variable parameter status.

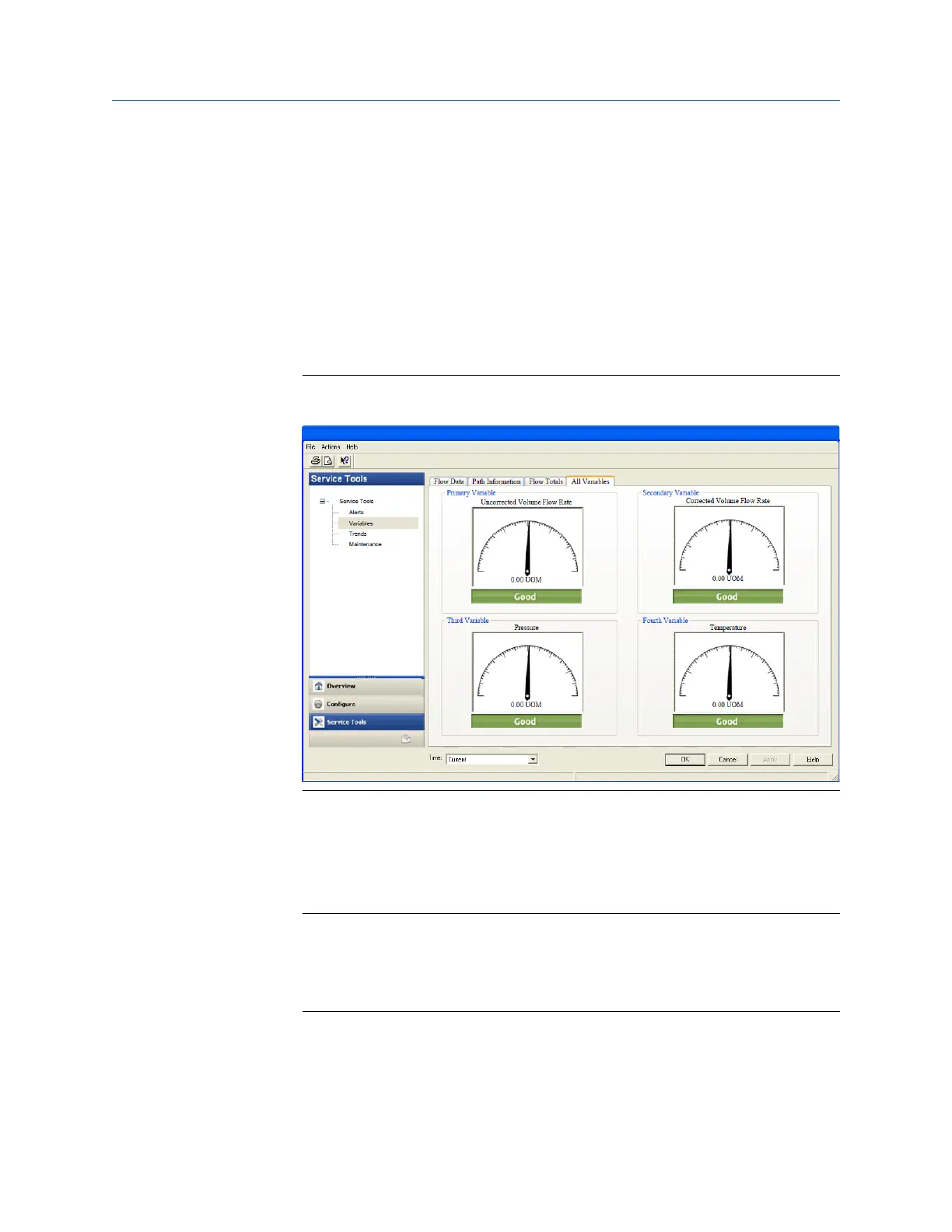

AMS Device Manager - Service Tools All VariablesFigure 4-20:
Gauges display each variable’s status as good or bad. If a status is bad refer to the
Service Tools Alerts page for recommended actions to resolve the alert
condition. Also refer to the Field Device Specification manual (P/N 3-9000-762)
for Commands 48 and 140 details.
Important
Alerts are triggered for Command 48 Additional device status and Command 140 detailed
status information. Alerts are grouped as Failed - Fix Now, Maintenance - Fix Soon and
Advisory according to the severity level; 1-6. Severity 1 is the highest and 6 is the lowest
level.
g. Click the Service Tools|Trends tab to display the device variables (uncorrected
volume flow rate, pressure and temperature) trends.
