The 3416 and the 3415 dual ultrasonic meter components are shown below.

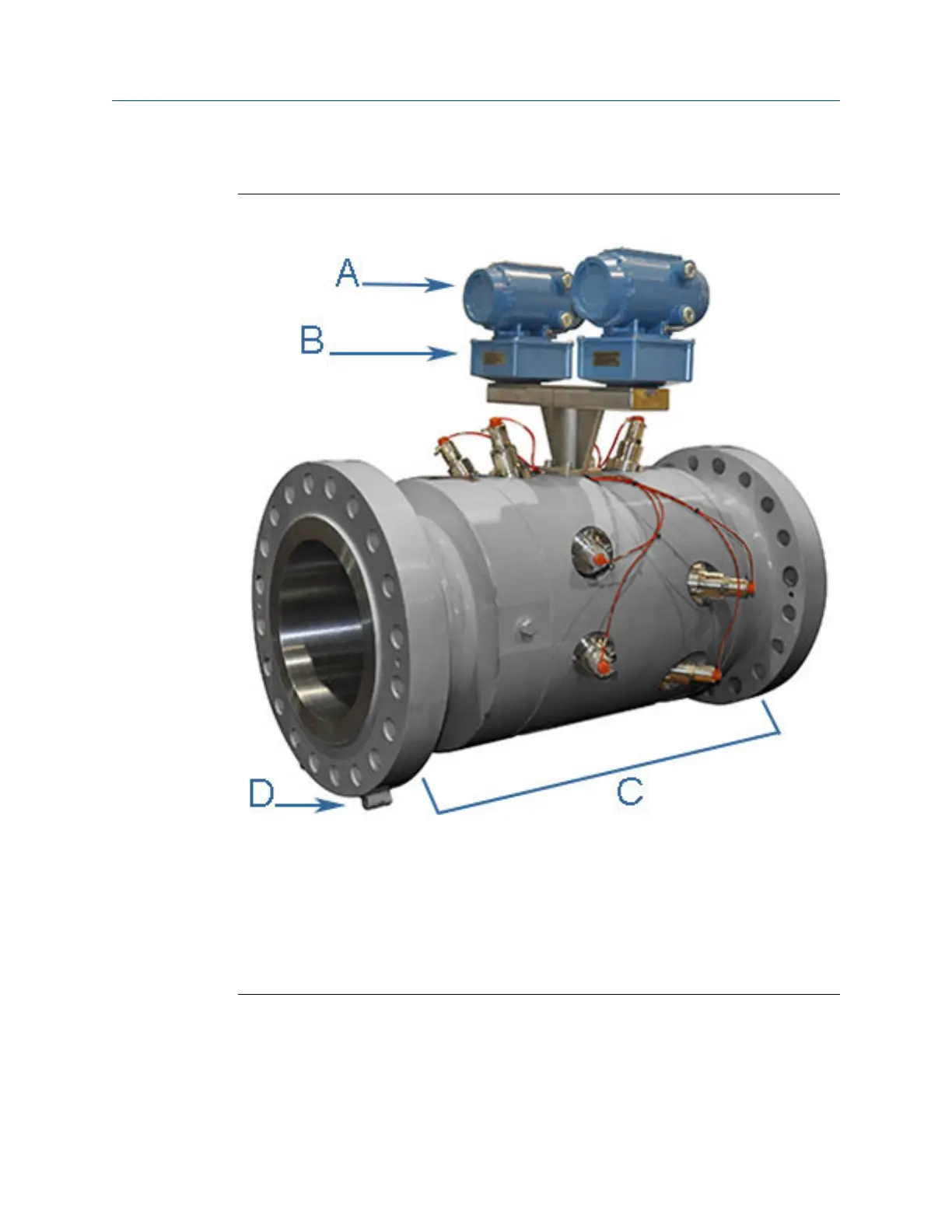

Daniel 3415 and 3416 Flow Meter assembly
(1)
Figure 2-2:
A. Explosion-proof transmitter enclosure (CPU Module, Power Supply, I.S. Barrier Board Backplane board)
(Optional: glass endcap for Local Display)
B. Intrinsically-safe base enclosure includes Acquisition Module
C. Meter - body and transducer assemblies and cables
D. Flange stabilizers
(1) Model 3415 does not have the vertical bounce path (see Daniel 3415 description)
Mechanical installation
28 Gas Ultrasonic Flow Meter
