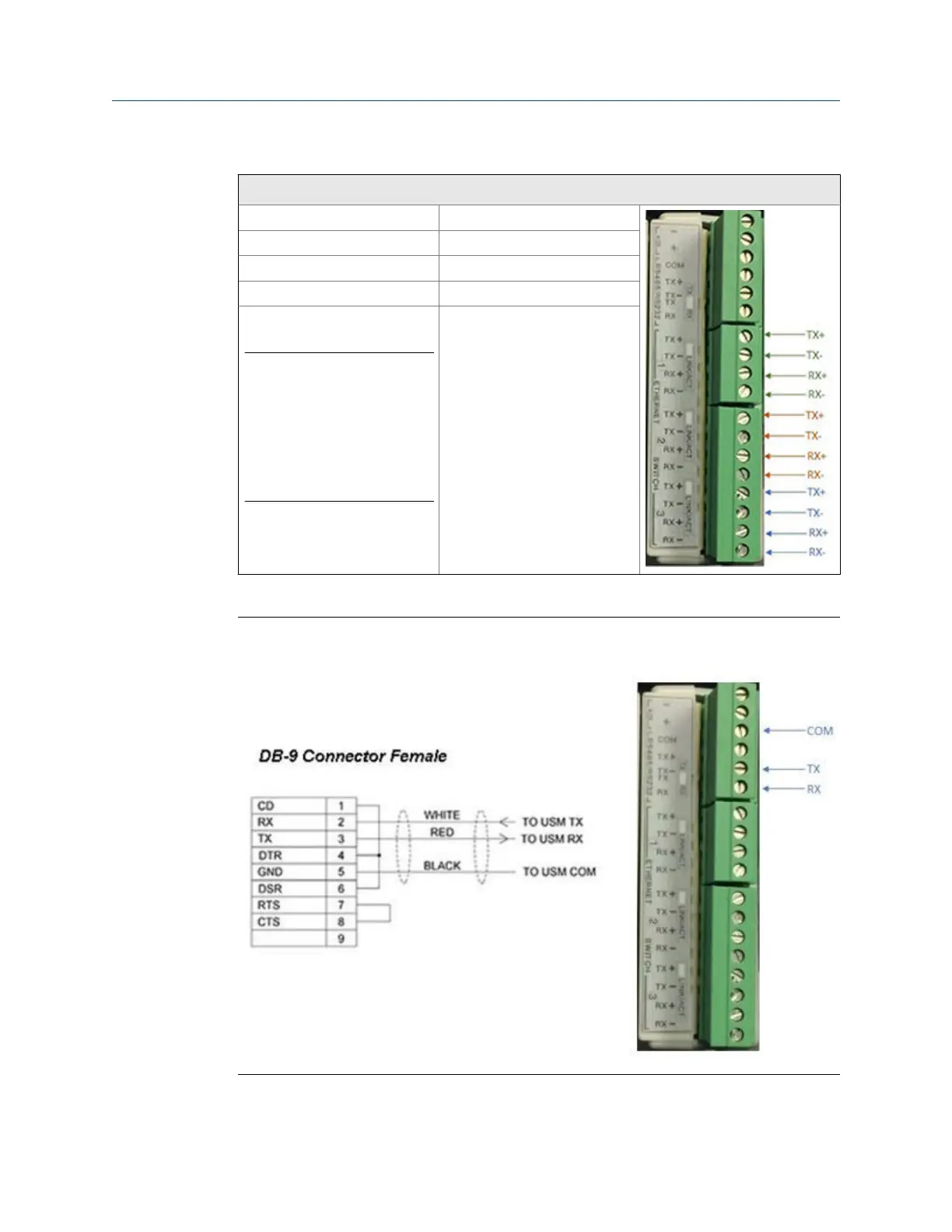

Ethernet cable to PC communicationTable 3-5:
Ethernet communication
Wire color CPU/EXP
White w/Green Stripe TX+
Solid Green TX-
White w/Orange stripe RX+
Solid orange
Note
Wiring colors for TX+/TX- and
RX+/RX- can be switched as
ethernet ports will automati-
cally detect crossover vs.
straight connection. Connec-
tions shown are for straight
through cable.
RX-
PC to meter serial connection wiring - RS232Figure 3-15:
Electrical installation
68 Gas Ultrasonic Flow Meter
