Emerson Daniel 3415

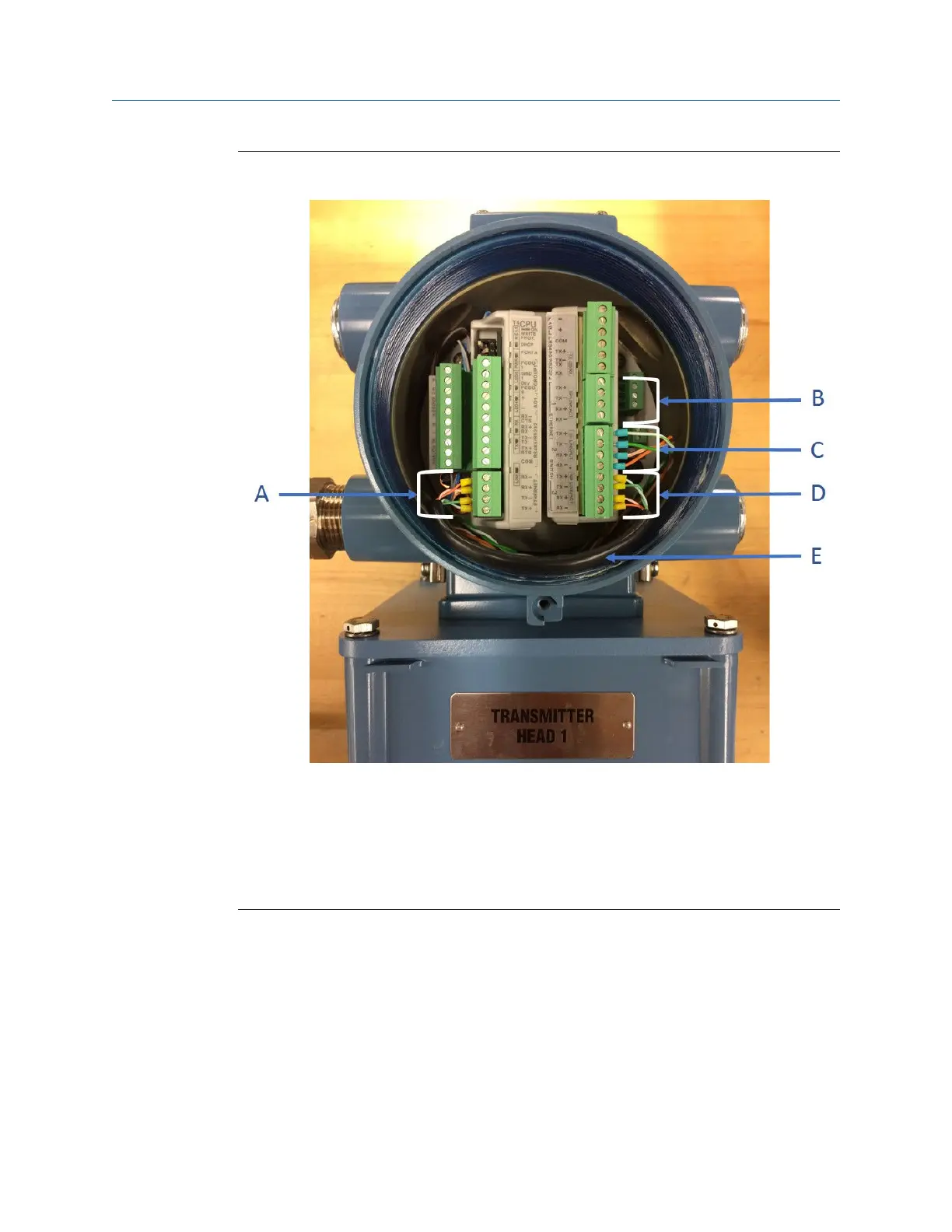

Transmitter Head 1 data sharing connection with Expansion I/O ModuleFigure 3-16:
A. Ethernet connection from Expansion I/O Module
B. Ethernet connection available for user connection
C. Ethernet connection from CPU Module
E. Expansion I/O Ethernet cable for connection between CPU and Expansion I/O. (P/N 1-360-03-058)
Electrical installation
Installation manual 69
