Meter housing internal components - NPS 3 through 8 -
Unidirectional
The figure below identifies and describes the NPS 3 through 8 unidirectional meter
housing components.

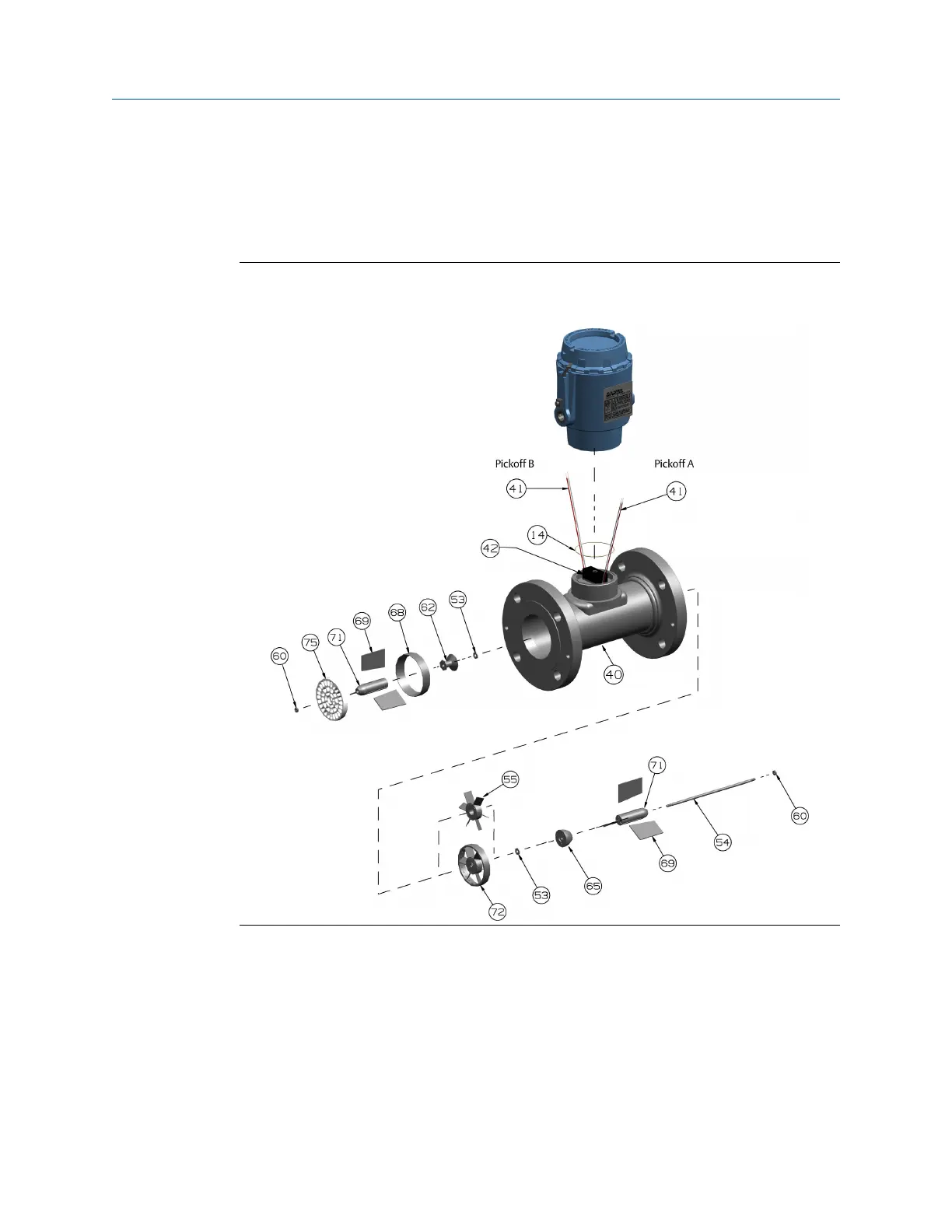

Figure 1-7: Part identification for an NPS 3 through 8 unidirectional (blade or
rimmed) LTM
Introduction User manual
March 2019 P/N 3-9008-515
28 Daniel Series 1500 Liquid Turbine Meter, NPS 3-24
