Emerson Daniel Series User Manual

WARNING
HIGH PRESSURE HAZARD
Choose the appropriate size and material of the flange for their piping requirements.
Choosing an incorrect flange may cause a pressure leak, resulting in death or serious
injury.
2.2.2 Requirements and limitations for installation

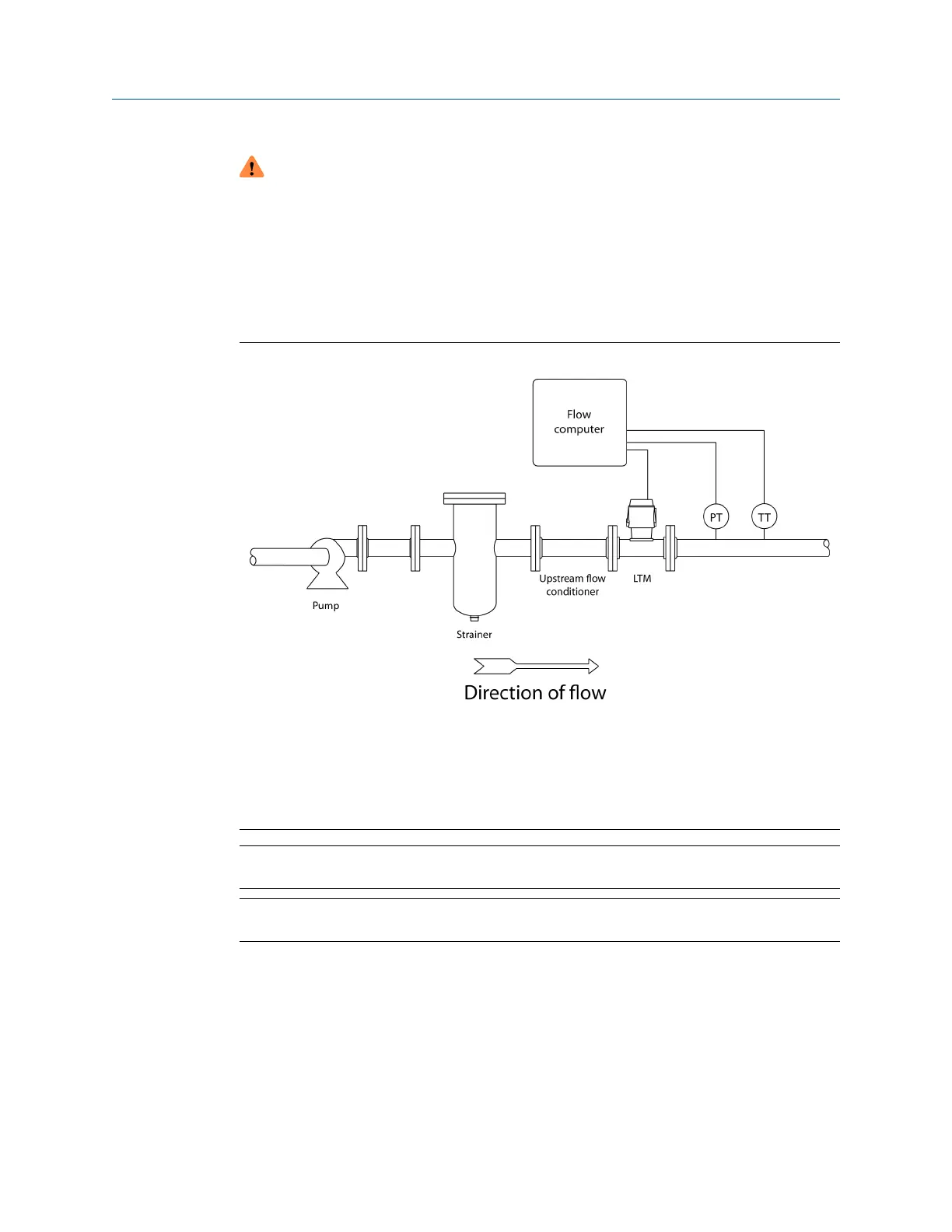

Figure 2-2: Typical installation for a Series 1500 LTM
• Note the direction of flow indicated on the plate near the inlet flange and install
accordingly.
• New installations: Flush lines thoroughly to rid piping of potentially damaging foreign
material such as welding bead, pipe scale, etc. before the turbine meter is placed into
service.
Important
A spool piece installed in place of the turbine meter is recommended for this procedure.
NOTICE
Comply with local government regulations and company requirements.
User manual Operating conditions and specifications
P/N 3-9008-515 March 2019
User manual 51

Emerson Daniel Series Specifications

General

Type	Flow Meter
Repeatability	±0.1% of reading
Communication Protocol	HART, Modbus, Foundation Fieldbus
Output	4-20 mA, pulse, frequency
Process Connection	Flanged, wafer, threaded
Material	Stainless steel, carbon steel, Hastelloy
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Protection Rating	IP67, NEMA 4X
Fluid Compatibility	Liquids, gases
