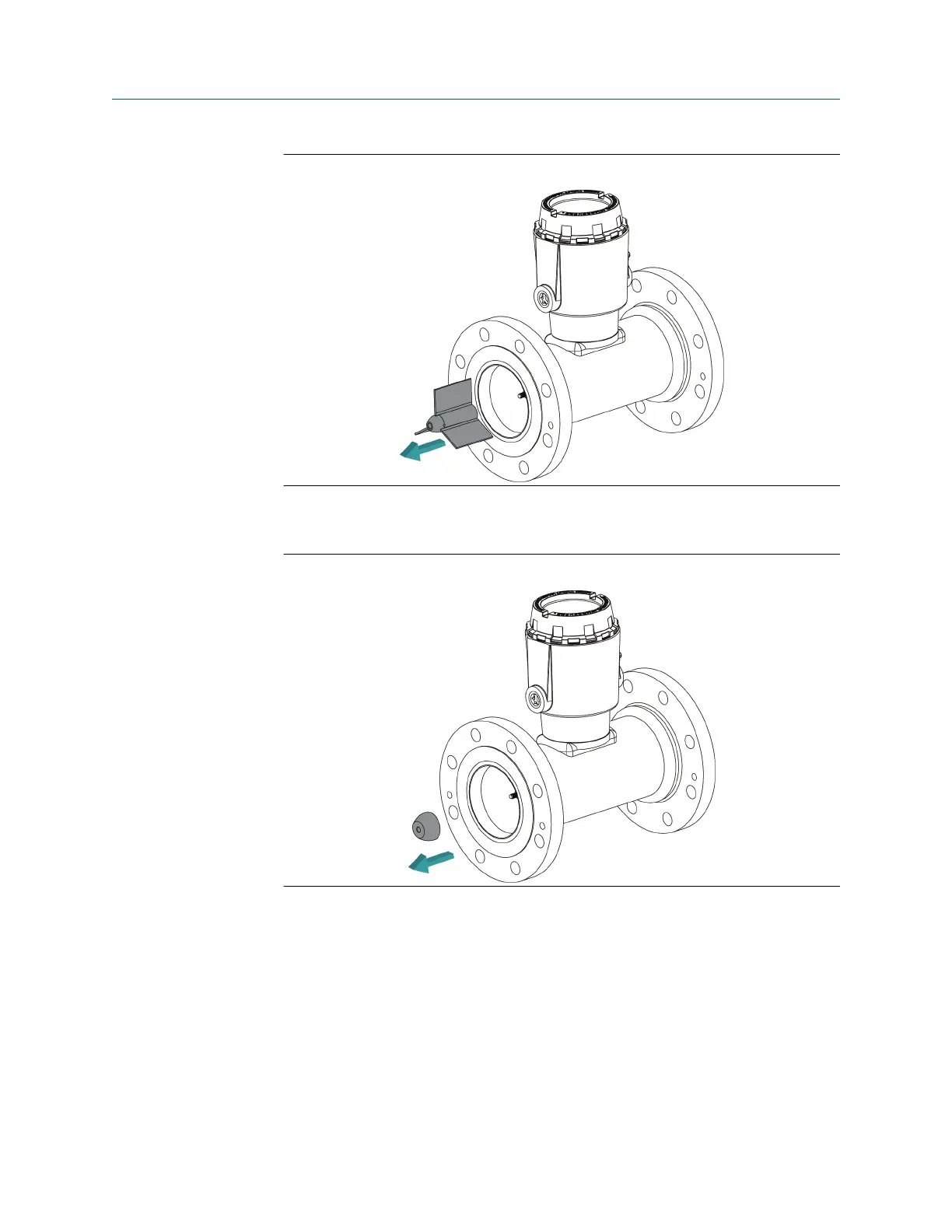

Figure 9-2: Downstream hanger assembly removal
3. Remove the downstream cone from the shaft. The thrust washer should remain in
the cone.
Figure 9-3: Downstream cone removal
4. Remove the rotor from the shaft.
Depending on the turbine meter option, the rotor could be just a blade type or a rim
type. The rim is not removable from the rotor assembly.
