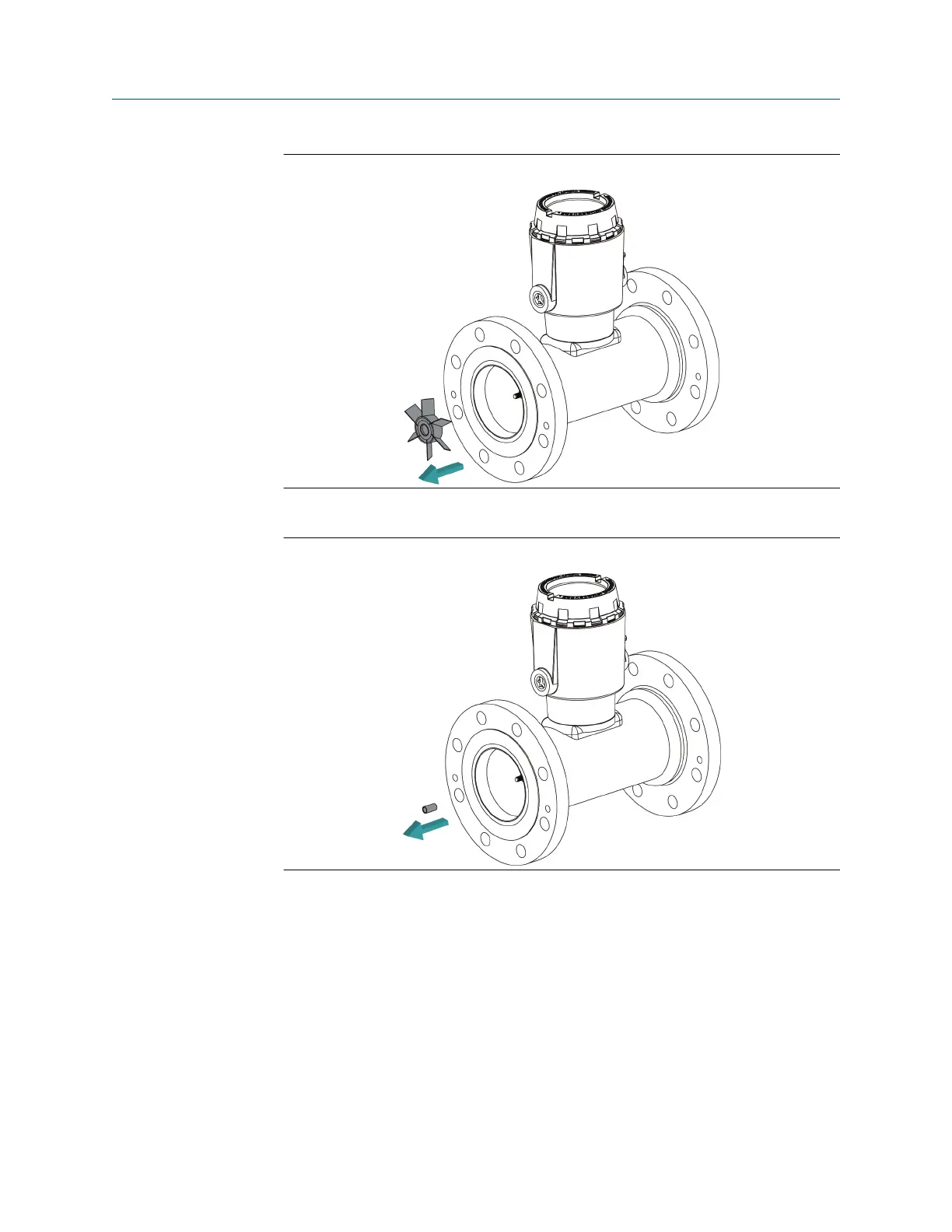

Figure 9-4: Rotor removal
5. Remove the journal bearing.
Figure 9-5: Journal bearing removal
6. Remove the upstream cone from the shaft. The thrust washer should remain in the
cone.
User manual Planned maintenance
P/N 3-9008-515 March 2019
