Emerson Daniel Series User Manual

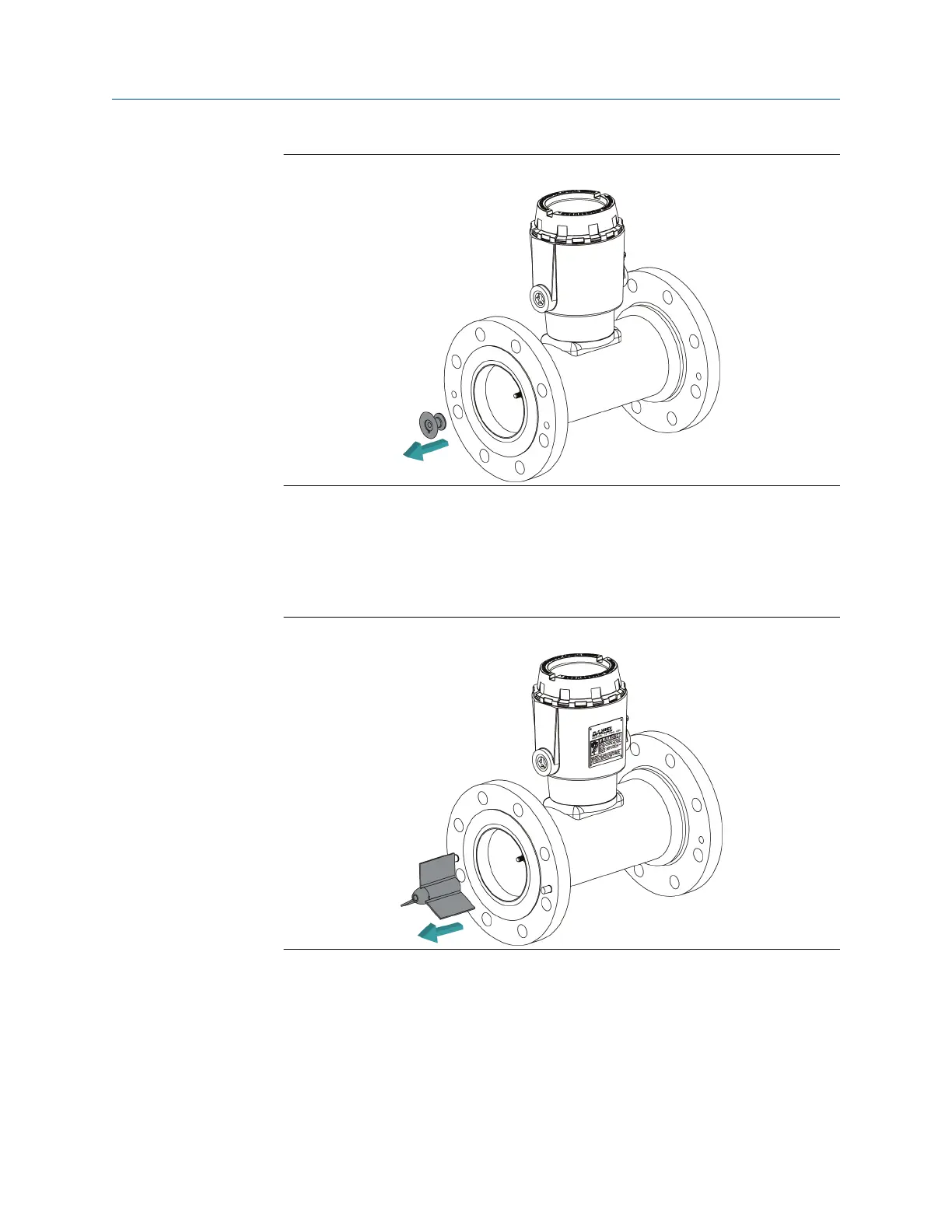

Figure 9-6: Upstream cone removal
7. Remove the upstream hanger assembly from the opposite end.
a) To do this you must insert a pin into the hole in the upstream hanger hub.
b) Insert the shaft from the downstream end and push the shaft against the pin.
c) Tap the shaft lightly to free the downstream hanger assembly.
Figure 9-7: Upstream hanger assembly removal
Planned maintenance User manual
March 2019 P/N 3-9008-515
90 Daniel Series 1500 Liquid Turbine Meter, NPS 3-24

Emerson Daniel Series Specifications

General

Type	Flow Meter
Repeatability	±0.1% of reading
Communication Protocol	HART, Modbus, Foundation Fieldbus
Output	4-20 mA, pulse, frequency
Process Connection	Flanged, wafer, threaded
Material	Stainless steel, carbon steel, Hastelloy
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Protection Rating	IP67, NEMA 4X
Fluid Compatibility	Liquids, gases
