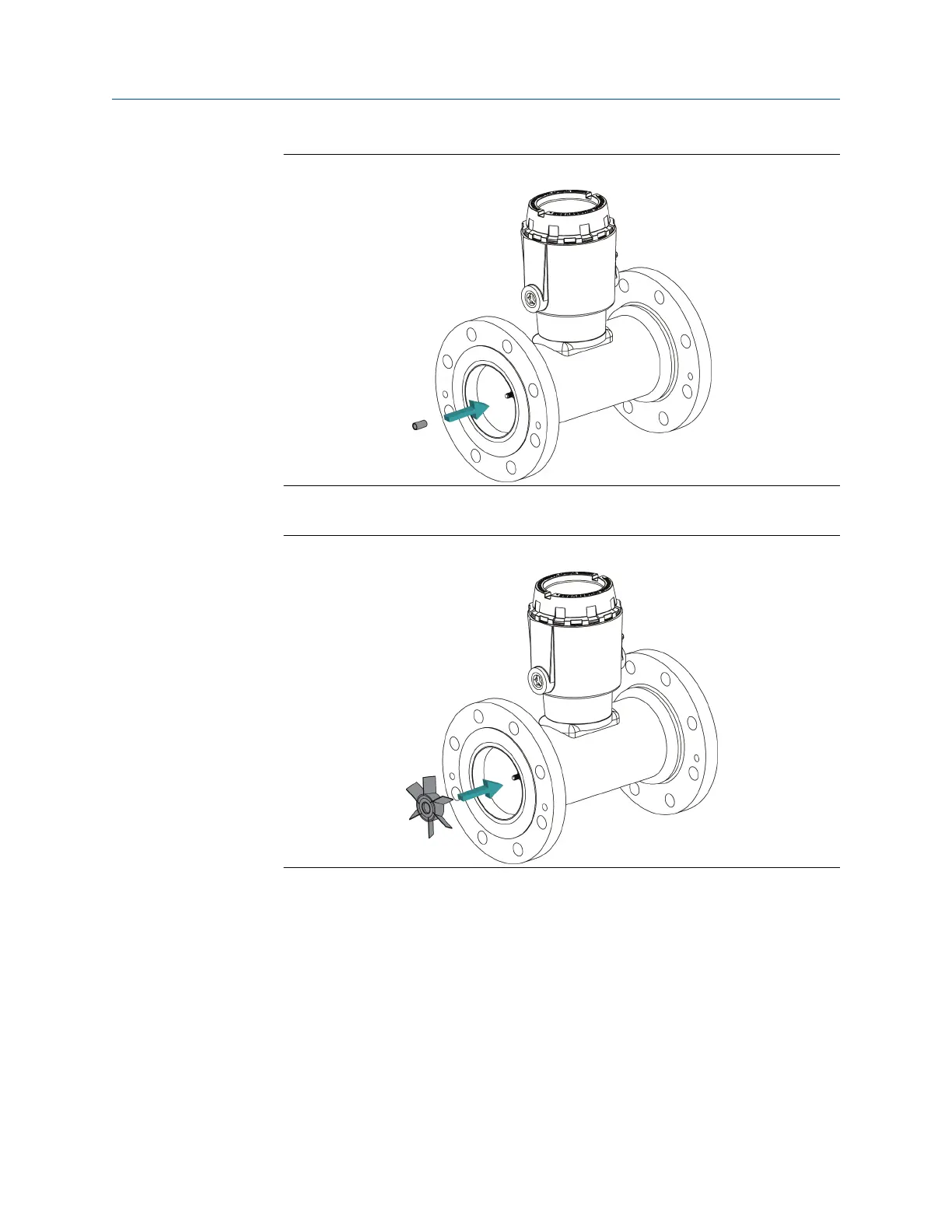

Figure 9-10: Journal bearing installation
5. Install the rotor to the shaft.
Figure 9-11: Rotor installation
6. Install the downstream cone to the shaft. The thrust washer should remain in the
cone.
User manual Planned maintenance
