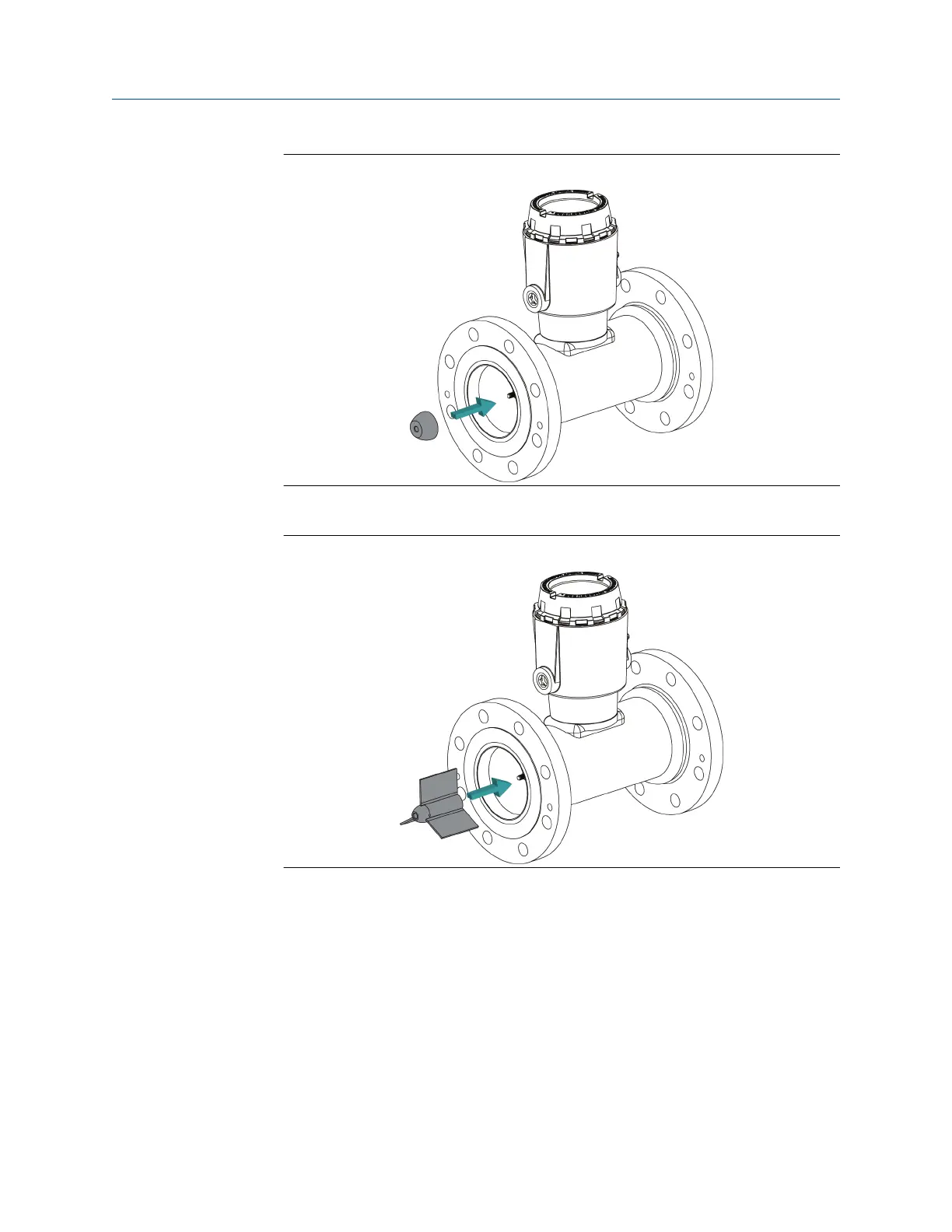

Figure 9-12: Downstream cone installation
7. Install the downstream hanger assembly to the shaft.
Figure 9-13: Downstream hanger assembly installation
8. Install the downstream shaft nut, simultaneously holding the upstream shaft nut to
prevent the shaft from turning.
Planned maintenance User manual
March 2019 P/N 3-9008-515
94 Daniel Series 1500 Liquid Turbine Meter, NPS 3-24
