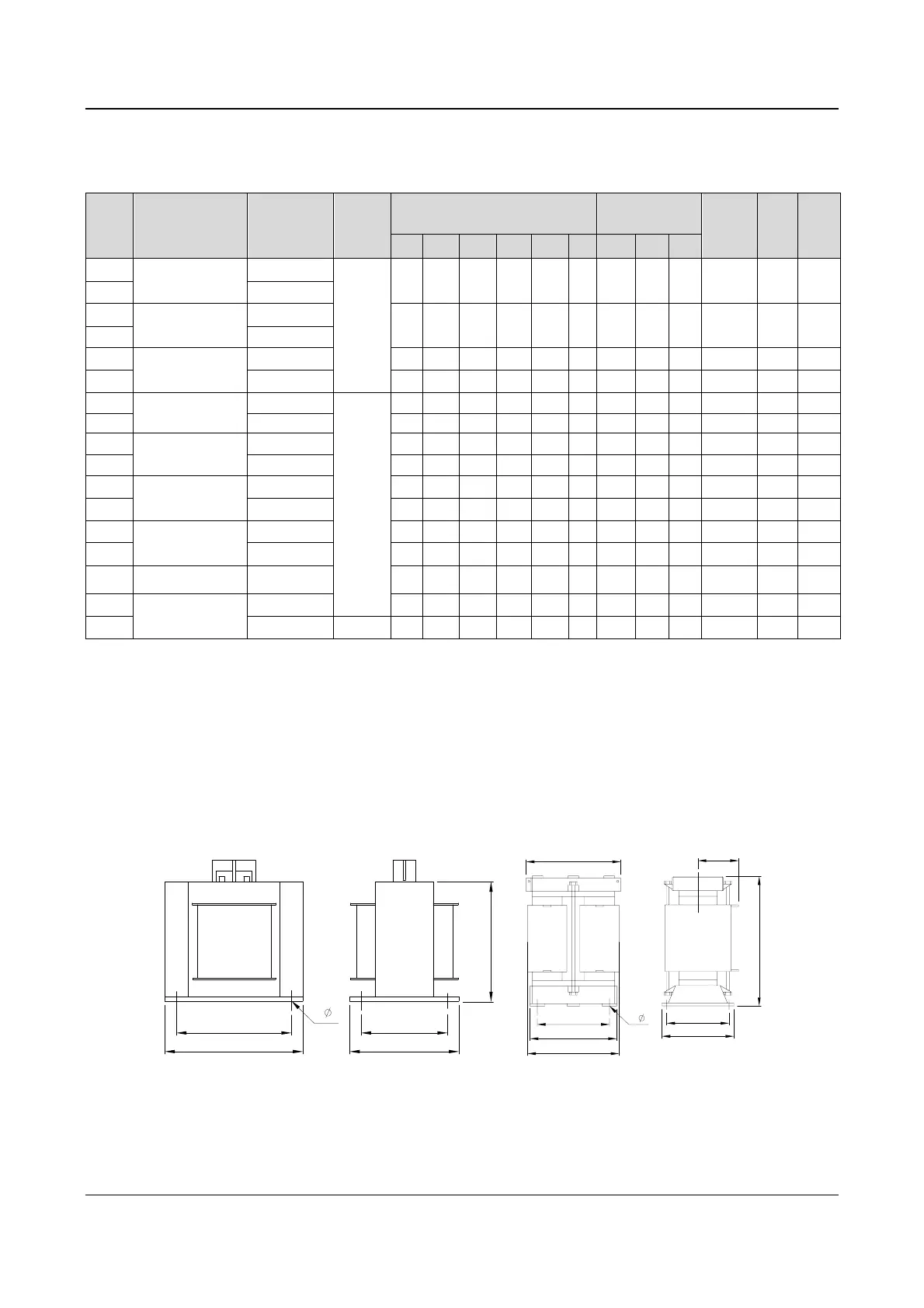

4. Parameters of 3-PH AC output reactor (TDL-4AO01-XXXX)
Table A-3 Parameters of 380V series 3-PH AC output reactor
Drive’s
power
(kW)
Reactor model
Reactor
product code
Fig. No.
Cutout sizes (mm)
Installation
sizes (mm)
Weight
(kg)
PC
(W)
Pm
(W)
L3 L1 L2
B1
h e n2 n1 d
5.5
TDL-4AO01-0075
K220-EM05
Fig. A-1
130 120 80 125 90 70 6.5 4.5 9 40
7.5
11
TDL-4AO01-0150
K220-EM07
165 148 80 135 120 70 6.5 6.0 12 55
15
18.5
TDL-4AO01-0220
K220-EM08
165
148
80 135 120 70 6.5 7.5 15 60
22
K220-EM09
165 148 80 135 120 70 6.5 7.5 15 60
30
TDL-4AO01-0370
K220-EM10
Fig. A-2
190 170 80 160 70 140 70 6.5 10 20 70
37
K220-EM11
190 170 100 160 70 140 80 6.5 12 25 80
45
TDL-4AO01-0550
K220-EM12
190 170 100 160 70 140 80 6.5 12 25 80
55
K220-EM13
190 170 100 160 70 140 80 6.5 12 25 80
75
TDL-4AO01-0900
K220-EM14
215 200 120 200 90 170 100 6.5 22 50 130
90
K220-EM15
215 200 120 200 90 170 100 6.5 23 50 132
110
TDL-4AO01-1320
K220-EM16
215 200 120 200 90 170 100 6.5 24 50 133
132
K220-EM17
215 200 120 200 90 170 100 6.5 24 50 135
160 TDL-4AO01-1600
K220-EM18
215 200 140 200 100 160 120 6.5 26 56 150
200
TDL-4AO01-2200
K220-EM19
215 200 140 200 100 160 120 6.5 26 56 151
220
K220-EM20
Fig. A-3 280 245 226 150 240 110 185 125 13 40 85 190
DC reactor
1. Model description
TDL-4DI01-0300, where 0300 denotes the power level, similar to the power level of the drive.
2. Sizes
The sizes of DC reactor are classified into two types, as shown in Fig. A-4 ~ Fig.A-5. See Table A-5 for the details.
L1
n2
b1
n1
h
4- d
n2
L2
n1
b1
h
e
L3
L1
4- d
Fig. A-4 Outline of DC reactor (a) Fig. A-5 Outline of DC reactor (b)
