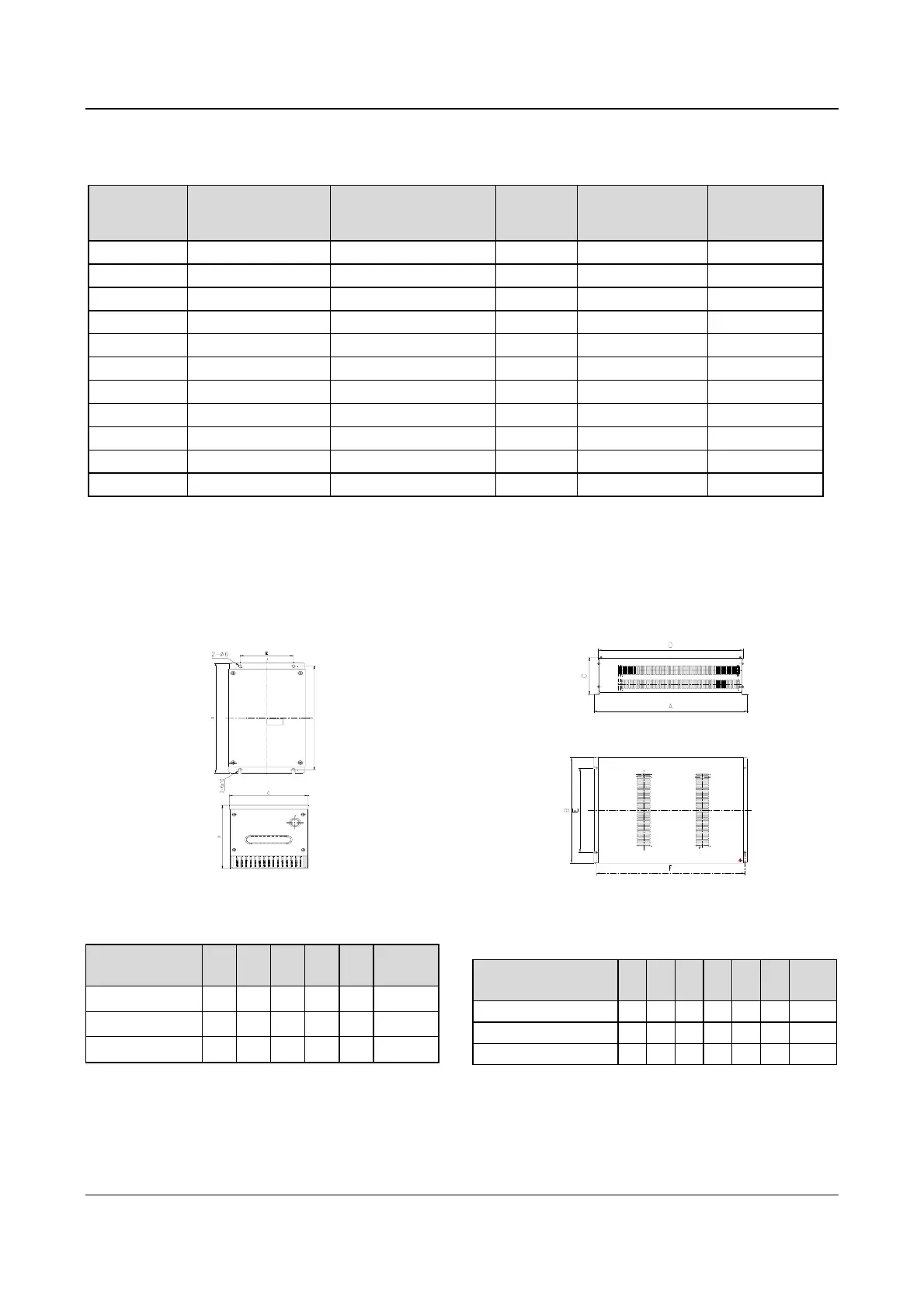

Chapter 2 Product Introduction 13
EV2000 Series Universal Variable Speed Drive User Manual
3. Configurations
Table 2-7 Specifications of braking kit and resistor
Rated motor
power(kW)
Model of braking
resistor
Ratio of working time of
braking kit to drive’s total
working time (%)
Braking
torque (%)
Maximum
continuous
operating time(s)
Model of braking
kit
5.5 - 10 100 10 Built-in
7.5 - 10 100 10 Built-in
11 TDB-R01-0015-0400 10 100 10 TDB-4C01-0150
15 TDB-R01-0015-0400 10 100 10 TDB-4C01-0150
18.5 TDB-R01-0015-0400 10 100 10 TDB-4C01-0150
22 TDB-R01-0030-0200 10 100 10 TDB-4C01-0300
30 TDB-R01-0030-0200 10 100 10 TDB-4C01-0300
37 TDB-R01-0030-0200 10 100 10 TDB-4C01-0300
45 TDB-R01-0050-0100 10 100 10 TDB-4C01-0550
55 TDB-R01-0050-0100 10 100 10 TDB-4C01-0550
75 TDB-R01-0050-0100 10 100 10 TDB-4C01-0550
 Notes
1. There is a braking kit inside the 7.5kW drive or below. An external braking resistor is needed to be connected if dynamic
braking is required and the recommended resistor is 1000W/100Ω.
2. The 90kW drive or above should use several braking kits connected in parallel (TDB-4C01-0550).
4. Outline and installation sizes
Fig. 2-8 Installation dimensions of braking kit
Table 2-8 Installation dimensions of braking kit(unit: mm)
Model of braking
kit
A B C D E
Gross
weight
TDB-4C01-0150 254 143 144 240 100 3 kg
TDB-4C01-0300 254 143 144 240 100 3 kg
TDB-4C01-0550 254 130 170 240 126 4 kg
Fig. 2-9 Installation dimensions of braking resistor
Table 2-9 Installation dimensions of braking resistor
(unit: mm)
Model of braking
resistor
A B C D E F
Gross
weight
TDB-4R01-0015-0400 475 228 127 447 177 460 3 kg
TDB-4R01-0030-0200 500 350 128 480 298 490 6 kg
TDB-4R01-0050-0100 540 520 170 520 470 530 8 kg
5. Functions and wiring
A. Wire connections braking resistor and braking kit
