Chapter 5 Parameter Introductions 59
EV2000 Series Universal Variable Speed Drive User Manual
Operating
freq. (Hz)
Lower limit of freq. F
L
Upper limit of
freq. F
H
Jitter
freq.=AW*F6.05
Waiting time
F6.03
Rising
time=F6.06*F6.07
Traverse
operating
cycle
Central Freq. Fset
Traverse operation
amplitude Aw=Fset*F6.04
- Aw
+ Aw
Run
command
stop
command
t
Decelerate
according
to Dec time
a1
a1
Preset freq.
Accelerate
according
to Acc time

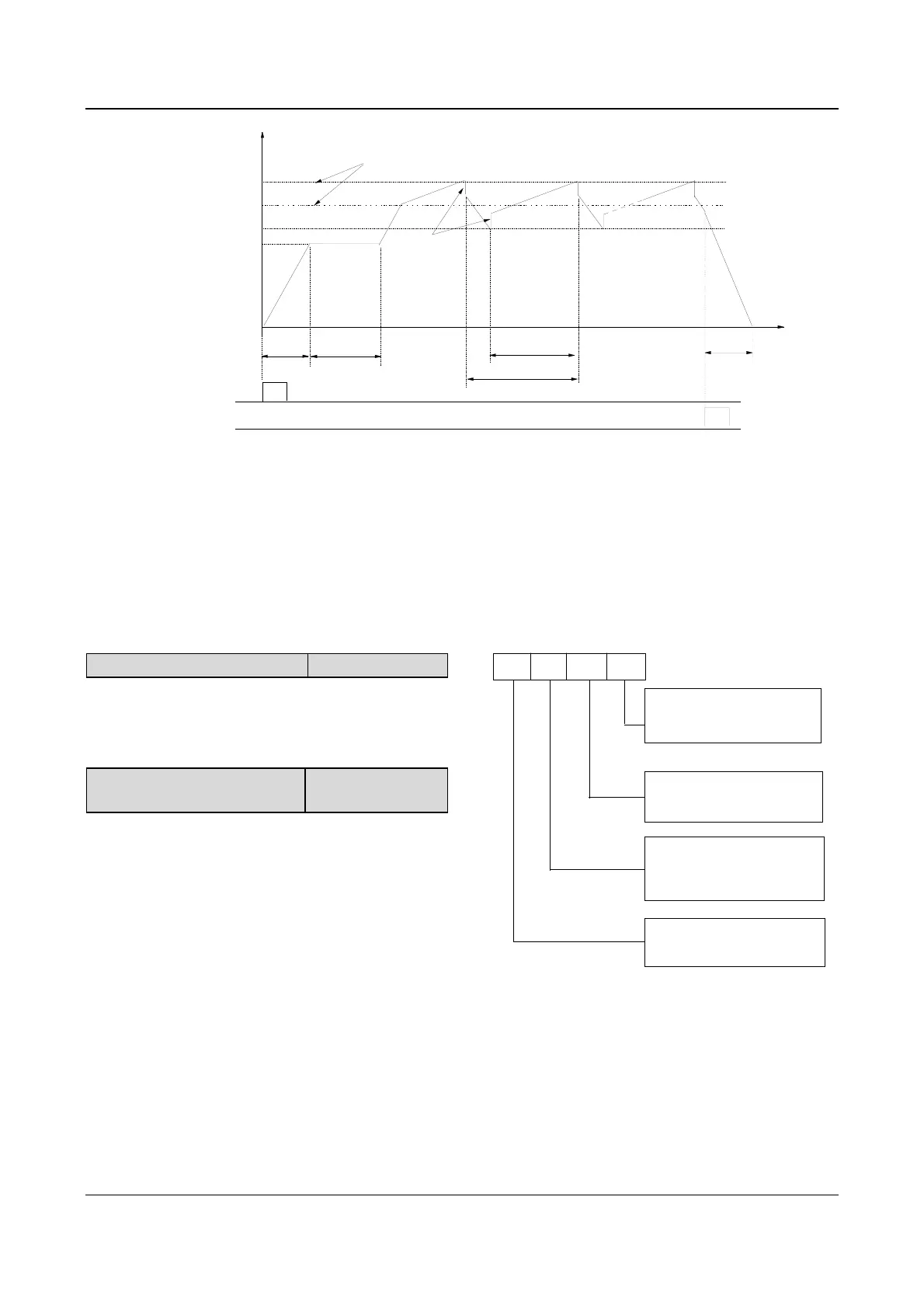

Fig. 5-37 Traverse operation
The central frequency is actually the preset frequency of simple operation (except PLC, traverse operation, jog),
multi-step speed operation or PLC operations;
Traverse operating function is disabled automatically in Jog operation or close-loop operation process.
If PLC operation and traverse operation start at the same time, the traverse operation is disabled when the drive transits
from one PLC operating stage to another stage. The drive will accelerate to the preset frequency of PLC operation and
then start traverse operation. The drive will decelerate to stop within the Dec time set in PLC operating stage.
F6.00 Traverse function selection
Range:0~1【0】
F6.00 decides whether the traverse operating function is
enabled
0: disabled
1: enabled
F6.01 Traverse operating mode
Range:0000~1111
【0000】
F6.01 is used to set the traverse operating mode and
the meanings of LED display are shown in Fig. 5-38.
A
B
C
D
Start mode:
1: Auto start
2: Manual start mode
Traverse operating amplitude control
1: Variable amplitude
2: Fixed amplitude
Restart mode
1: Restart at the freq. and direction
memorized before stopping
2: Restart
Save parameters upon power outage
1: Save
2: Not save
Fig. 5-38 Traverse operating mode
Where,
A: thousand’s place B: Hundred’s place
C: Ten’s place D: Unit’s place
Unit’s place: start mode
0: auto mode
