S600 Instruction Manual

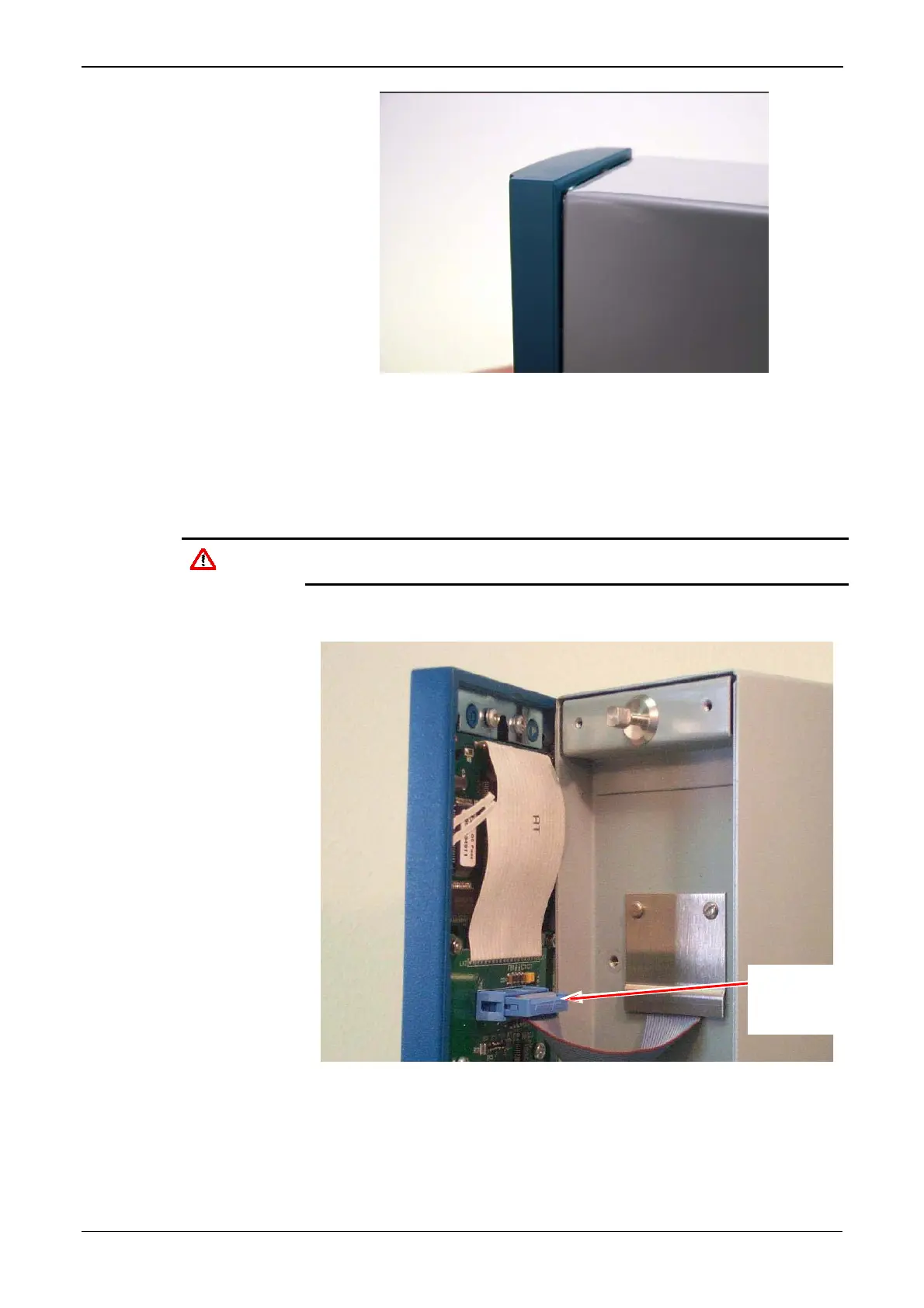

Figure 2-3. Lifted Front Panel
4. Disconnect the ribbon cable from the back of the front panel at the
blue connector (refer to Figure 2-4). Observe the orientation of the
connector with its mating keyway. You must correctly re-insert the
ribbon cable at the end of the installation process.
Caution
Do not remove the ribbon cable from the S600 housing entrance. This
might damage the S600.
Disconnect
Here
Figure 2-4. Remove Connector
5. Remove the top and bottom bosses from the unit housing, using a
5.5 mm (5 BA) hex wrench.
2-4 Installation Revised Jan-07
