S600 Instruction Manual
Ejectors

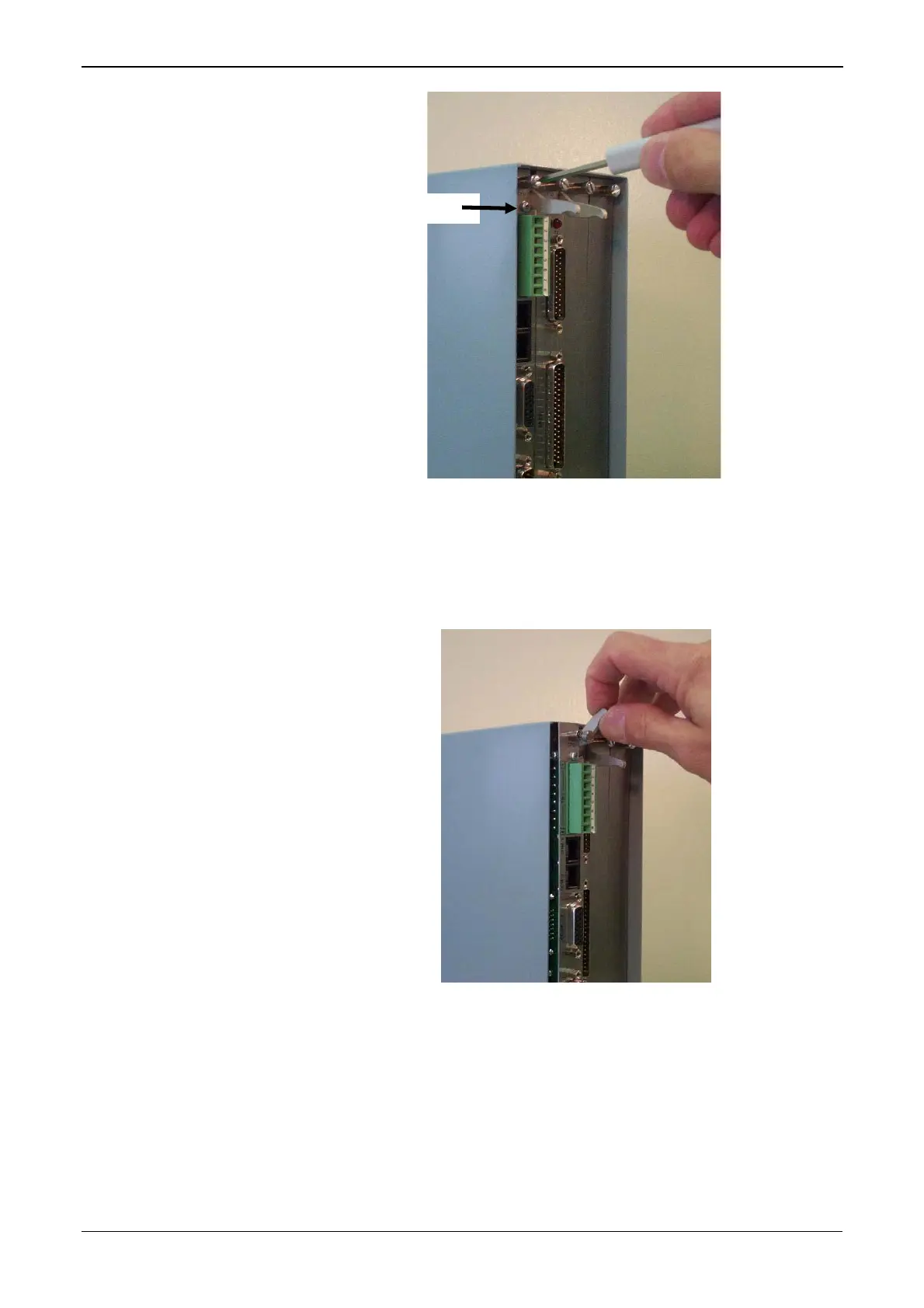

Figure 2-8. Unscrewing the Retention Screws
3.
Unlatch the ejectors for the appr
opriate board and pull the board
clear of the case. You may need
to rock the board slightly to
release the connectors (refer
to Figures 2-9 and 2-10).
Figure 2-9. Using the Ejectors
2-8 Installation
Revised
Jan-07
19
21
Table of Contents
Default Chapter
2
January 2007
2
Table of Contents
3
Startup
4
Front Panel
5
Chapter 1 - General Information
7
Scope of Manual
7
Front Panel Port
7
Floboss S600 Flow Manager
8
The Floboss S600 Flow Manager
8
CPU Board
9
Config600 Configuration Software
11
Config600 Lite
11
Ipl 600
11
Config600 Pro
12
Related Specification Sheets
12
Chapter 2 - Installation
13
Preparing for Installation
13
Environmental Considerations
14
Required Tools for Installation
14
Installing the S600
15
Unpacking the S600
15
Removing the Front Panel
15
Installing the Panel-Mounted Unit
17
Reinstalling the Front Panel
19
Installing and Removing the Boards
19
Board Ready for Removal or Insertion
21
Chapter 3 - CPU
23
P152 CPU Board
23
P152 CPU Board
24
Power Supply
25
Ethernet
25
Lcd
25
On-Board Battery Backup
26
Watchdog Relay
26
Communication Ports
27
RS-232) Serial Port
27
Battery Backup
27
Dual Ethernet
27
RS-422)/EIA-485 (RS-485) Multi-Drop Port
28
Pin Connections
28
Ethernet LAN Port
29
Local Operator PC or Remote Display Port
29
Link Cable
30
CPU On-Board Connectors
31
CPU Bit Links (Jumpers)
31
Dual Ethernet LAN Port
32
Chapter 4 - Input/Output (I/O)
35
P144 I/O Board
35
Anin
36
Backplate with P144 I/O Board
36
Digin
36
Digout
36
P144 I/O Board
36
Analogue Inputs (ANIN)
37
Analogue Input Schematic
38
Bit Links
38
Analogue Output Schematic
39
Analogue Outputs (DAC)
39
Function
39
Analogue Output Schematic (Externally Powered Device)
40
Analogue Output Schematic (Externally Powered through S600)
40
Digital Inputs (DIGIN)
40
Digital Input Schematic (Open Collector Device)
41
Digital Input Schematic (Relay)
41
Digital Output Schematic
42
Digital Output Schematic (Relay)
42
Digital Outputs (DIGOUT)
42
Turbine Pulse Inputs
43
Pulse Input Schematic (with US 24 V P148 Mezzanine Card)
44
Pulse Output Schematic
44
Pulse Outputs (PULSEOUT)
44
Raw Pulse Output (RAWOUT)
45
Raw Pulse Output Schematic
45
Frequency Input Schematic
46
Frequency Input Schematic (with IS Barrier and AC-Coupled)
46
Frequency Inputs
46
American
47
Din
47
PRT/RTD Inputs
47
P144 I/O Bit Links (Jumpers)
48
P144 I/O Bit Links (Jumpers)
49
P154 Prover Board
50
Digital Outputs
50
Backplate with P154 Prover Board
51
P154 Prover Board
51
Digital Inputs (DIGIN)
52
Digital Input Schematic (Open Collector Device)
53
Digital Input Schematic (Relay)
53
Digital Output Schematic (Relay)
54
Digital Outputs (DIGOUT)
54
Digital Output Schematic
55
Turbine Pulse Inputs
55
Frequency Inputs
56
Pulse Input Schematic (with US 24 V P148 Mezzanine Card)
56
Pulse Output Schematic
56
Pulse Outputs (PULSEOUT)
56
Frequency Input Schematic (Without IS Barrier and DC-Coupled)
57
P154 Prover Bit Links (Jumpers)
58
P188 HART Board
59
HART Device
60
Chapter 5 - Front Panel
61
Description
61
LCD Display
61
Front Panel Port
62
Keypad
62
F Keys
62
Front Panel Port Connector
62
Direction and Menu Keys
63
Numeric Keys
63
Operation Keys
63
Menu Keys
63
Alarm LED and Alarm Keys
64
Alarm LED
64
LCD Display
65
Status/ID Line
65
Navigating the Display
67
S600 Main Menu
67
Entering Data
68
Security Codes
68
Changing a Displayed Value
68
Changing a Calculation Mode
69
Assigning a Default Page
70
Assigning a Page to a Function (F) Key
70
Using the Exponential (EXPT) Key
71
Using the Print Key
72
All Alarms
72
Archived Reports
72
Config Report
72
Constants Log
72
Current Alarms
72
Display Dump
72
Alarm Log
73
Current Report
73
Event Log
73
Modbus Maps
73
Chapter 6 - Webserver Access
75
Webserver Access
75
Defining Webserver Access
76
Accessing the S600
76
Navigating the Webserver Interface
78
Alarm Archive
78
Navigation Front Panel
78
Operator Menu
79
Alarms Menu
80
Chapter 7 - Startup
81
Starting the S600
81
Warm Start
81
Cold Start
81
Initiating a Cold Start
82
CPU Board
82
Startup Menu
83
Network Setup
84
Messages
85
Chapter 8 - Troubleshooting
87
Guidelines
87
Checklists
88
Power Issues
88
Startup Menu
88
Front Panel Lighting
88
Front Panel LED
88
Changing the Fuse
88
I/O Led
89
I/O Fail Messages
89
Serial Communications
89
Procedures
89
Reflash Firmware
90
Send and Reflash the Config File
90
Flash Failed
90
Clear SRAM
91
Changing the Fuse
92
Fuse Location
92
Reflashing an S600
93
Network Setup
93
Upgrading the BIOS
94
Appendix A - Glossary
95
Cold Start
95
Appendix B - Front Panel Navigation
99
Main Menu
99
B.1 Main Menu
99
Flow Rates Menu
100
Totals Menu
100
Operator Menu
101
B.4 Operator Menu
101
Plant I/O Menu
102
System Settings Menu
102
Frequency Inputs
102
Prt/Rtd
102
B.5 Plant I/O Menu
102
Tech/Engineer Menu
103
Communications
103
Display
103
Disp
103
Print
103
Calculations Menu
104
Front Panel Navigation
104
B.8 Calculations Menu
104
Index
108
4
Based on 1 rating
Ask a question
