Emerson Liebert GXT4 - Rear Panel Features; Figure 1 Liebert GXT4 5000 VA and 6000 VA, Front View; Figure 2 Liebert GXT4 5000 VA and 6000 VA with Input Power Hard-Wired Box-Rear View

Product Description
5Liebert
®
GXT4
™

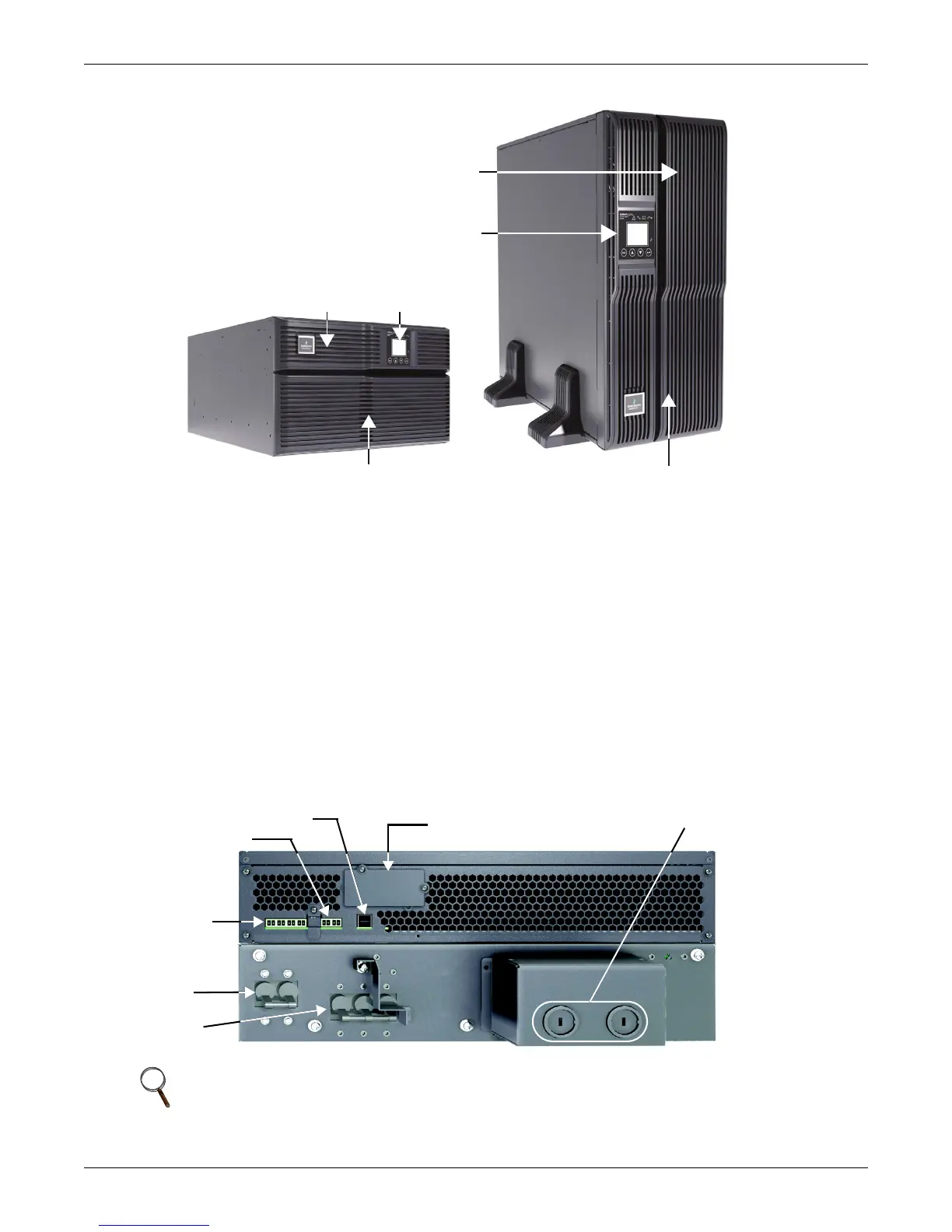

Figure 1 Liebert GXT4 5000VA and 6000VA, front view
1.3.2 Rear Panel Features
The rear panel of the Liebert GXT4 has these features:
• Liebert IntelliSlot
®
Port
•USB port
• Input Circuit Breaker
• Maintenance Bypass Breaker
• REPO connection
•Input Receptacle
• General Output Receptacles (on optional PODs)
• External Battery Connector
• Cooling Fan
• Terminal Block Communication
• Output Circuit Breakers (on optional PODs)
Figure 2 Liebert GXT4 5000VA and 6000VA with input power hard-wired box—rear view
NOTE
Hard-wired and hard-wired/receptacle boxes that include a manual bypass switch permit AC
power to continue to flow from the utility input to the load while the box is removed from the
UPS. For details, refer to 1.4 - Removable Power Distribution Box.
Upper Bezel
Operation and Display Panel
Lower Bezel and Battery Access Door
Lower Bezel and Battery Access Door
Upper Bezel
Operation and
Display Panel
Liebert
IntelliSlot
Port
USB Port
Terminal Block
Communication
Input Breaker
Knockouts for Hard-Wired
Power Input
REPO
Maintenance
Bypass Breaker
