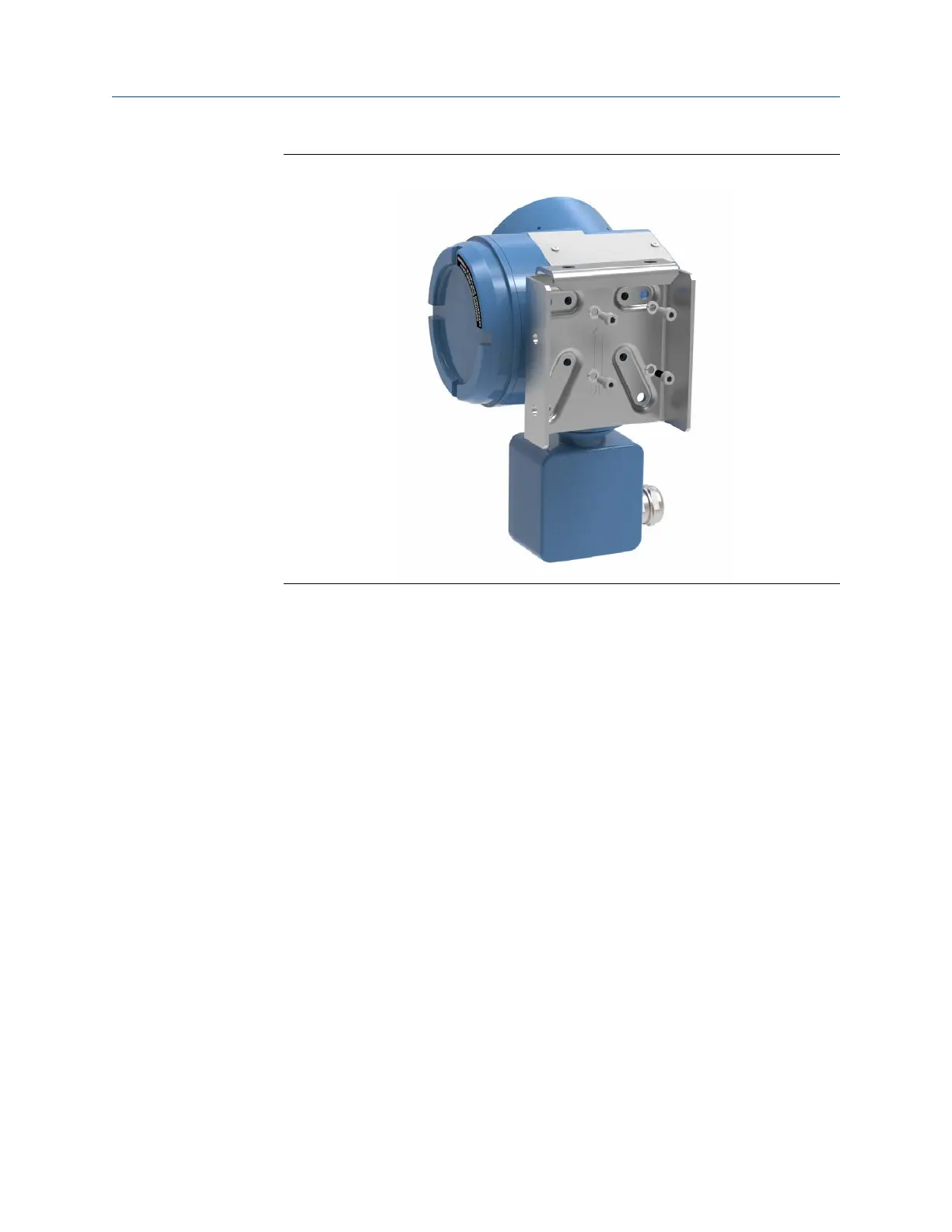

Figure 2-1: Mounting bracket to a painted aluminum transmitter
2. Using a wall-mount or pole-mount:
• For wall-mount installations, secure the mounting bracket to the prepared
surface.
• For pole-mount installations, attach the U-bolt mounting piece to the instrument
pole.
Mounting and sensor wiring Installation Manual
October2023 00825-0100-5710
12 Micro Motion 4700 CIO Transmitter
