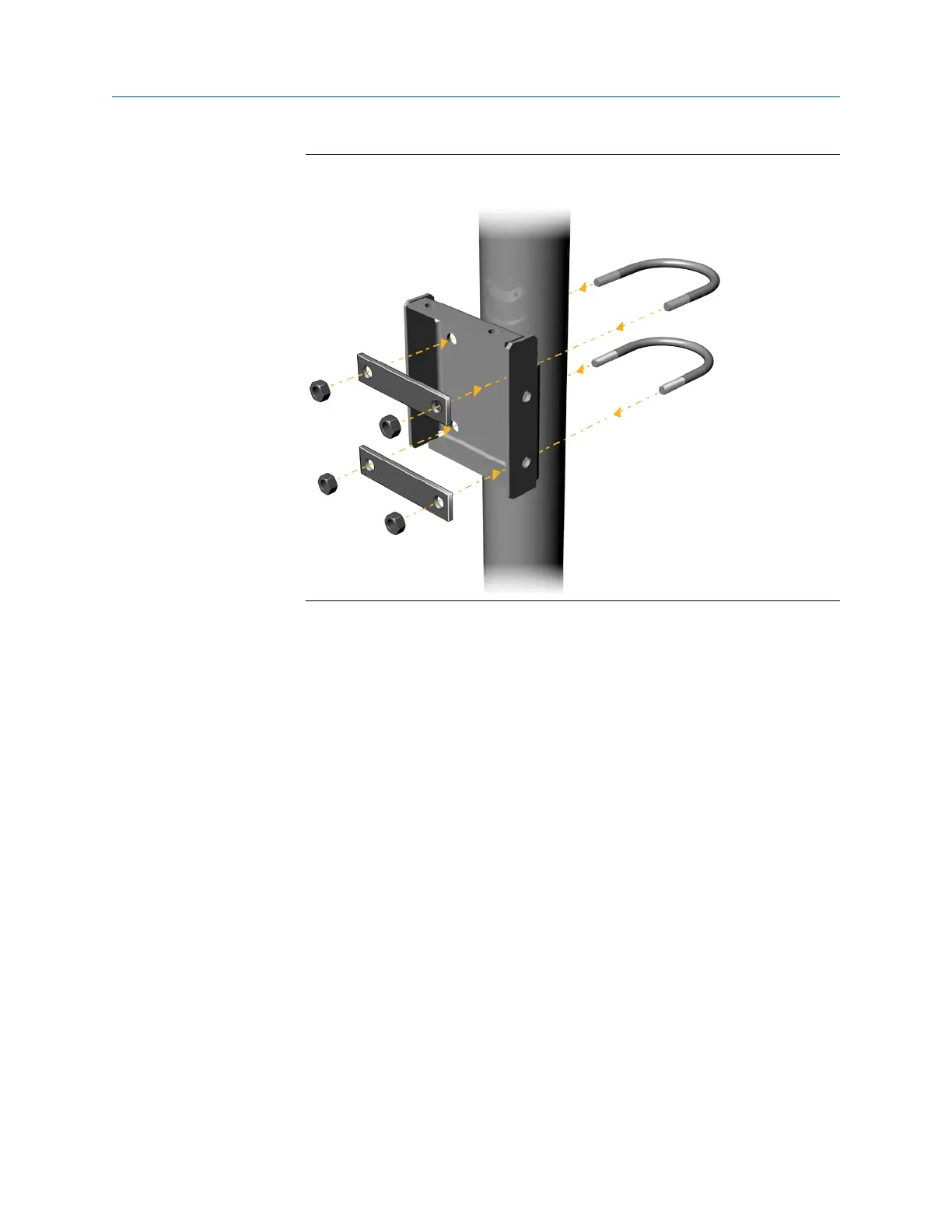

Figure 2-2: Pole-mounting bracket attachment for a painted aluminum
transmitter
3. Place and attach the transmitter-mounting bracket to the mounting bracket secured
to the wall or instrument pole.
