3.5.1 Wire the frequency output (Channel A)
Use this section to wire the frequency output in explosion-proof, nonincendive, or
nonhazardous installations.
Important
Meter installation and wiring should be performed only by suitably-trained personnel.
Wire the frequency output (internally powered)
Use this procedure to wire the internally-powered frequency output for Channel A.
Procedure
Wire to the appropriate output terminal and pins.

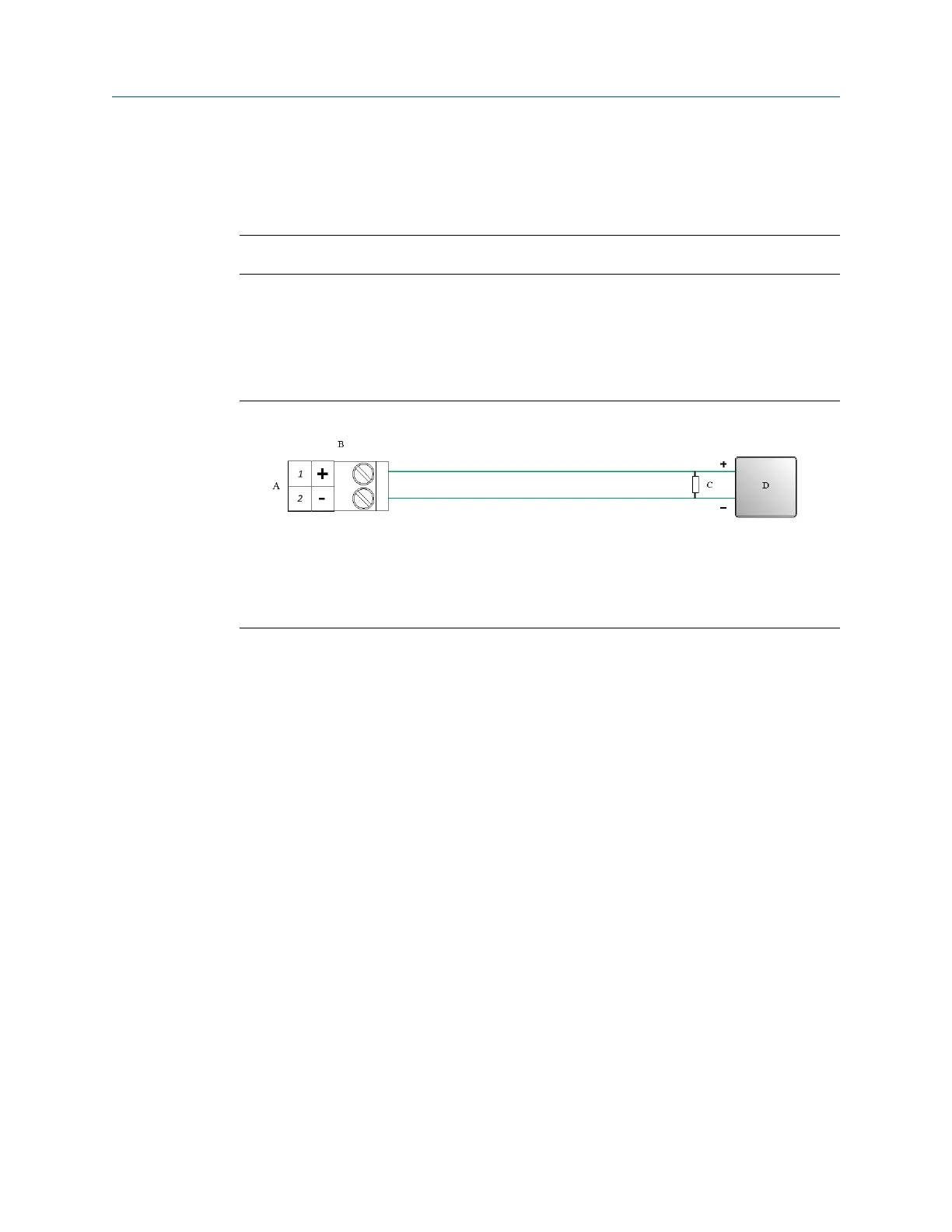

Figure 3-11: Frequency output wiring (internally powered)
A. Frequency output
B.
Channel A
C.
See Figure 3-12 for output amplitude versus load resistance
D. Counter
Installation Manual Wiring the channels
00825-0100-5710 October2023
Installation Manual 29
