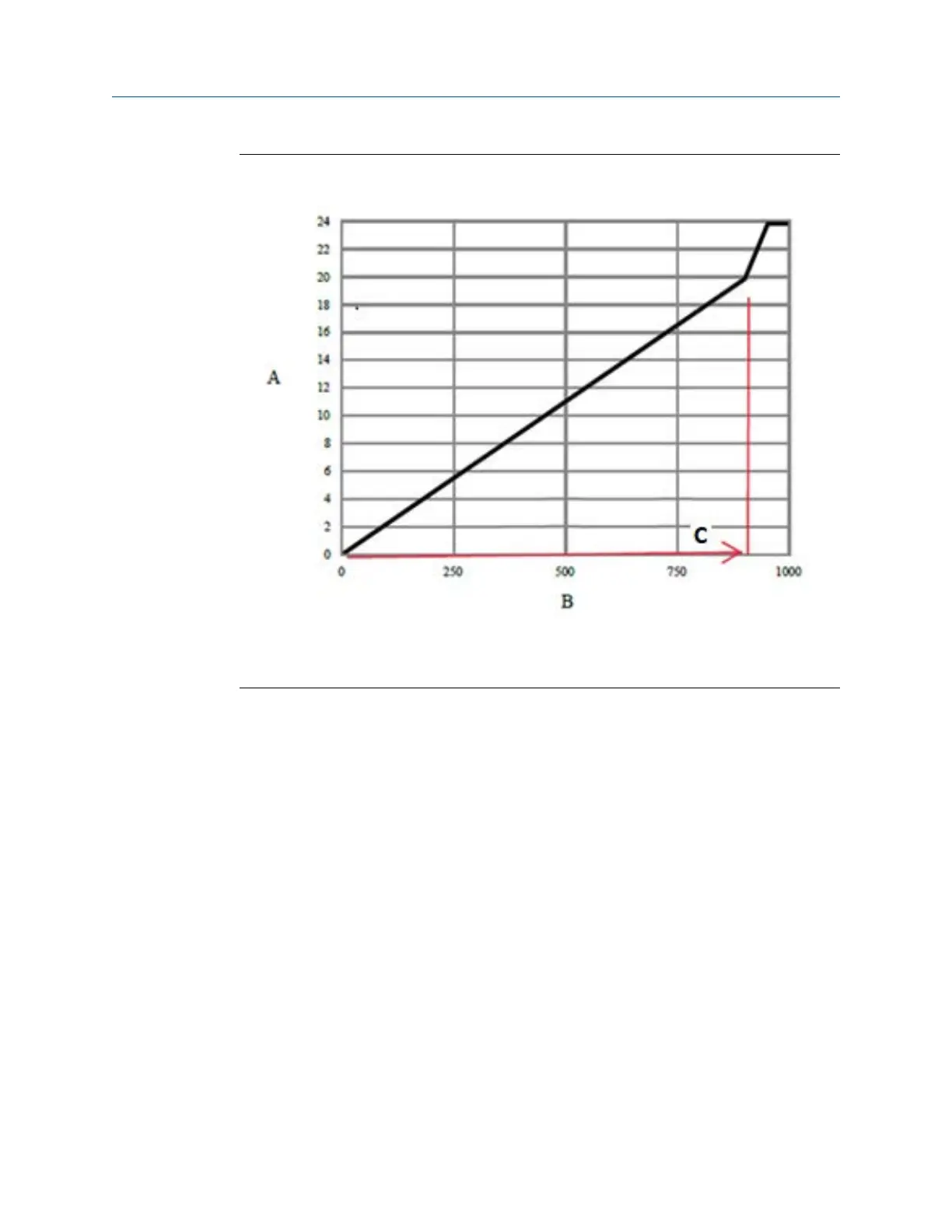

Figure 3-12: Internally powered frequency output: output amplitude versus load
resistance [24 VDC (Nom) open circuit]
A. Output amplitude (V) where V= 22mA x Load Resistor in Linear Range
B. Load resistor (Ω)
C.
Linear Range
Wiring the channels Installation Manual
October2023 00825-0100-5710
30 Micro Motion 4700 CIO Transmitter
