Wire the frequency output (externally powered)
Use this procedure to wire the externally-powered frequency output for Channel A.
Procedure
Wire to the appropriate output terminal and pins.

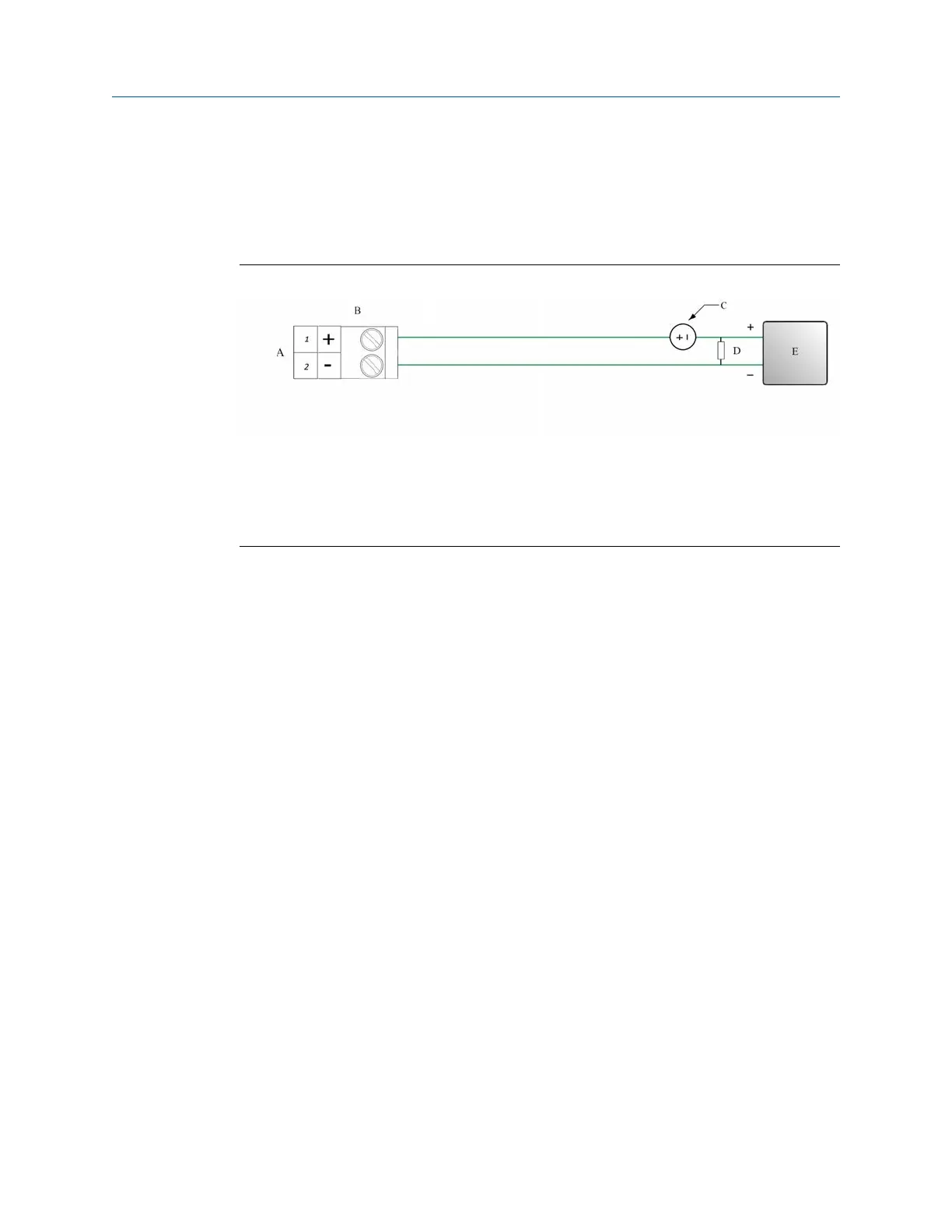

Figure 3-13: Frequency output wiring (externally powered)
A. Frequency output
B. Channel A
C.
3-30 VDC (maximum)
D. Rload: Maximum sinking curent = 500mA
E. Signal device
