Emerson Micro Motion

Micro Motion
®
Model D and DT Sensors Instruction Manual 15
Orientation continued

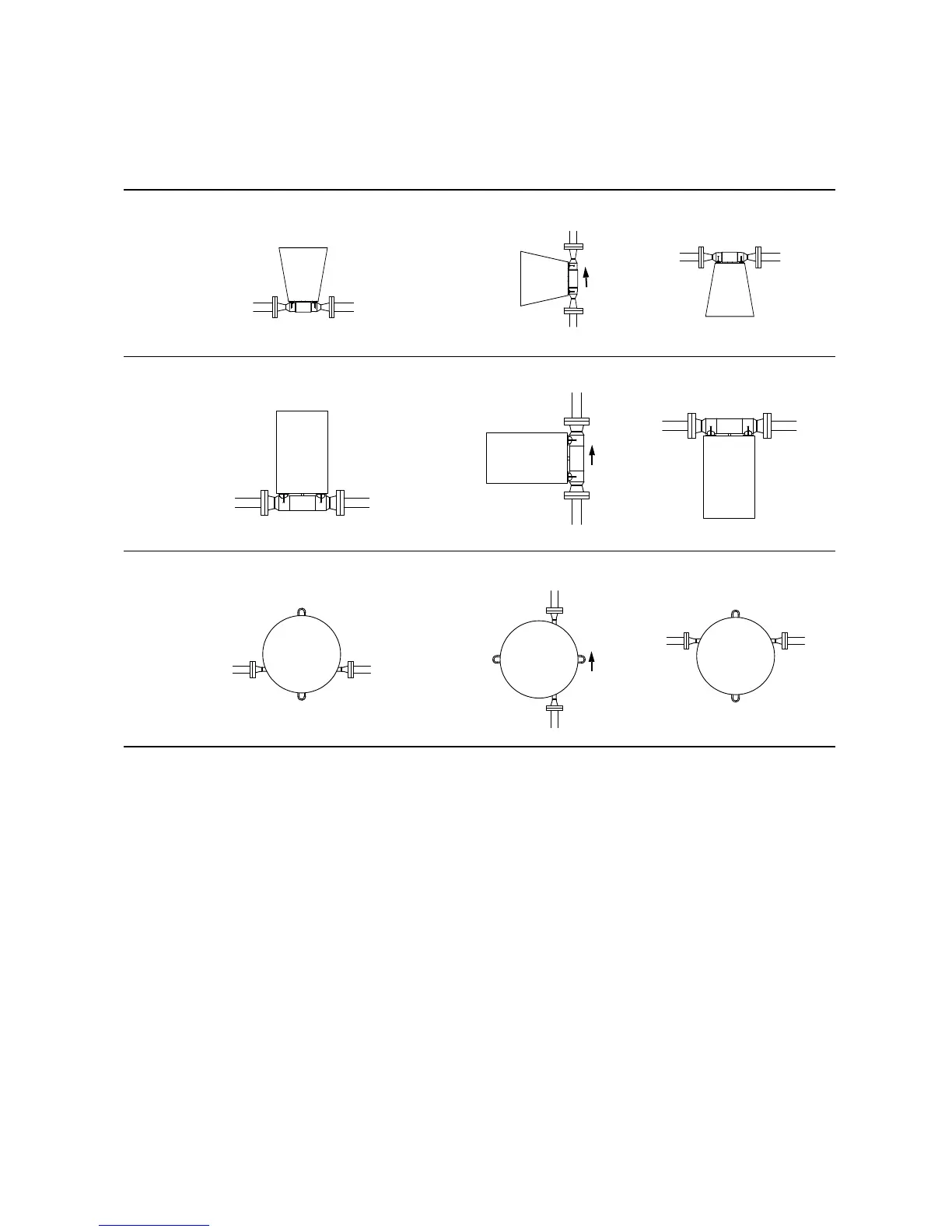

Orientations for measuring gases
Sensor
model
Preferred orientation for
measuring gases
Alternative orientation for
measuring gases
DS025
DH025
DH038
DS040
Tubes up
Horizontal pipeline
Self-draining
Flag mount
Vertical pipeline
Dry gases only
Tubes down
Horizontal pipeline
DS065
DS100
DH100
DS150
DH150
DS300
DH300
D600
Tubes up
Horizontal pipeline
Self-draining
Flag mount
Vertical pipeline
Dry gases only
Tubes down
Horizontal pipeline
DT65
DT065
DT100
DT150
Tubes up
Horizontal pipeline
Self-draining
Flag mount
Vertical pipeline
Dry gases only
Tubes down
Horizontal pipeline
Flow
Flow
Flow
