Orientation continued

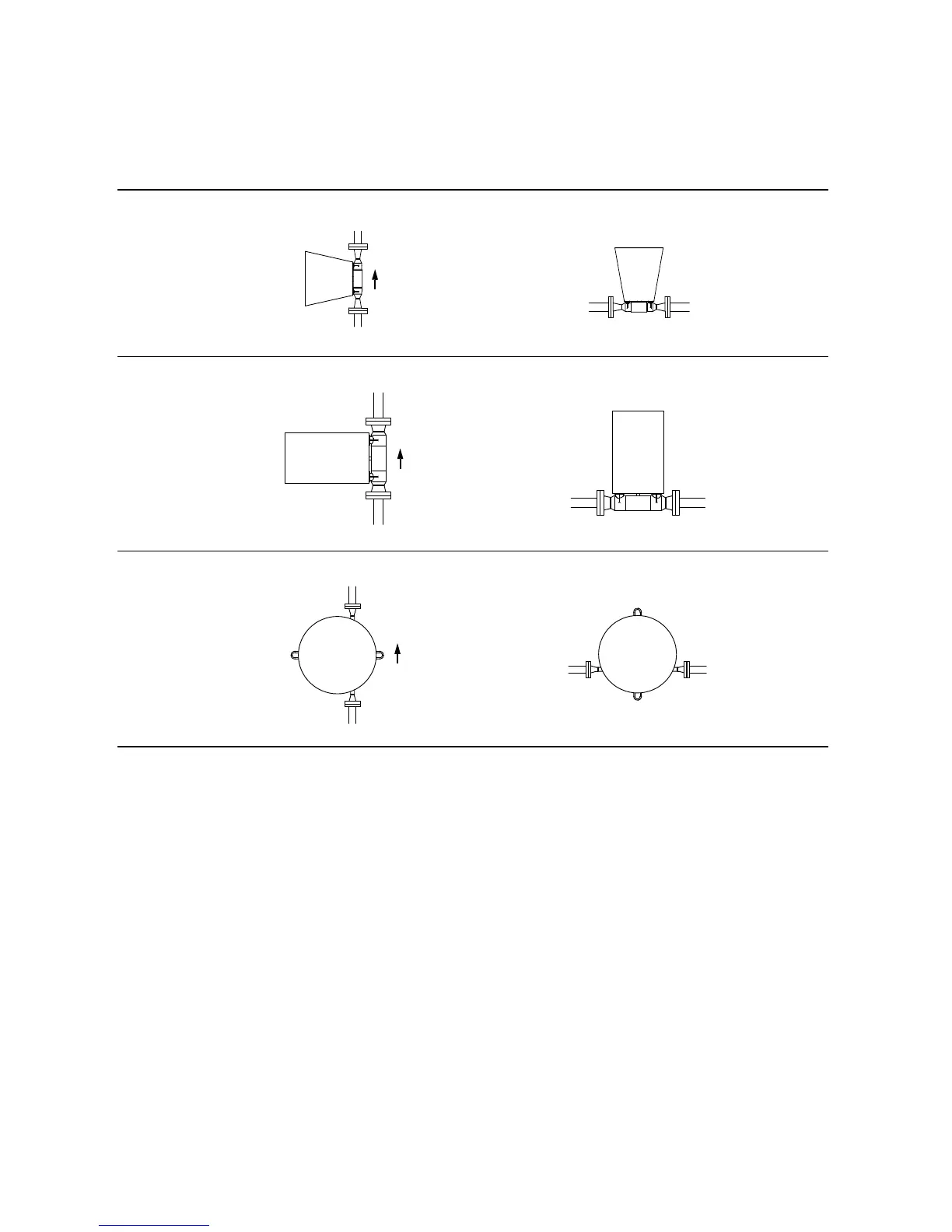

Orientations for measuring slurries
Sensor
model
Preferred orientation for
measuring slurries
Alternative orientation for
measuring slurries
DS025
DH025
DH038
DS040
Flag mount
Vertical pipeline
Tub es up
Horizontal pipeline
Self-draining
DS065
DS100
DH100
DS150
DH150
DS300
DH300
D600
Flag mount
Vertical pipeline
Tub es up
Horizontal pipeline
Self-draining
DT65
DT065
DT100
DT150
Flag mount
Vertical pipeline
Tub es up
Horizontal pipeline
Self-draining
Flow
Flow
Flow
