2.3 Compatible encoders
Table 2-5 Encoders compatible with Mentor MP
2.4 Nameplate description

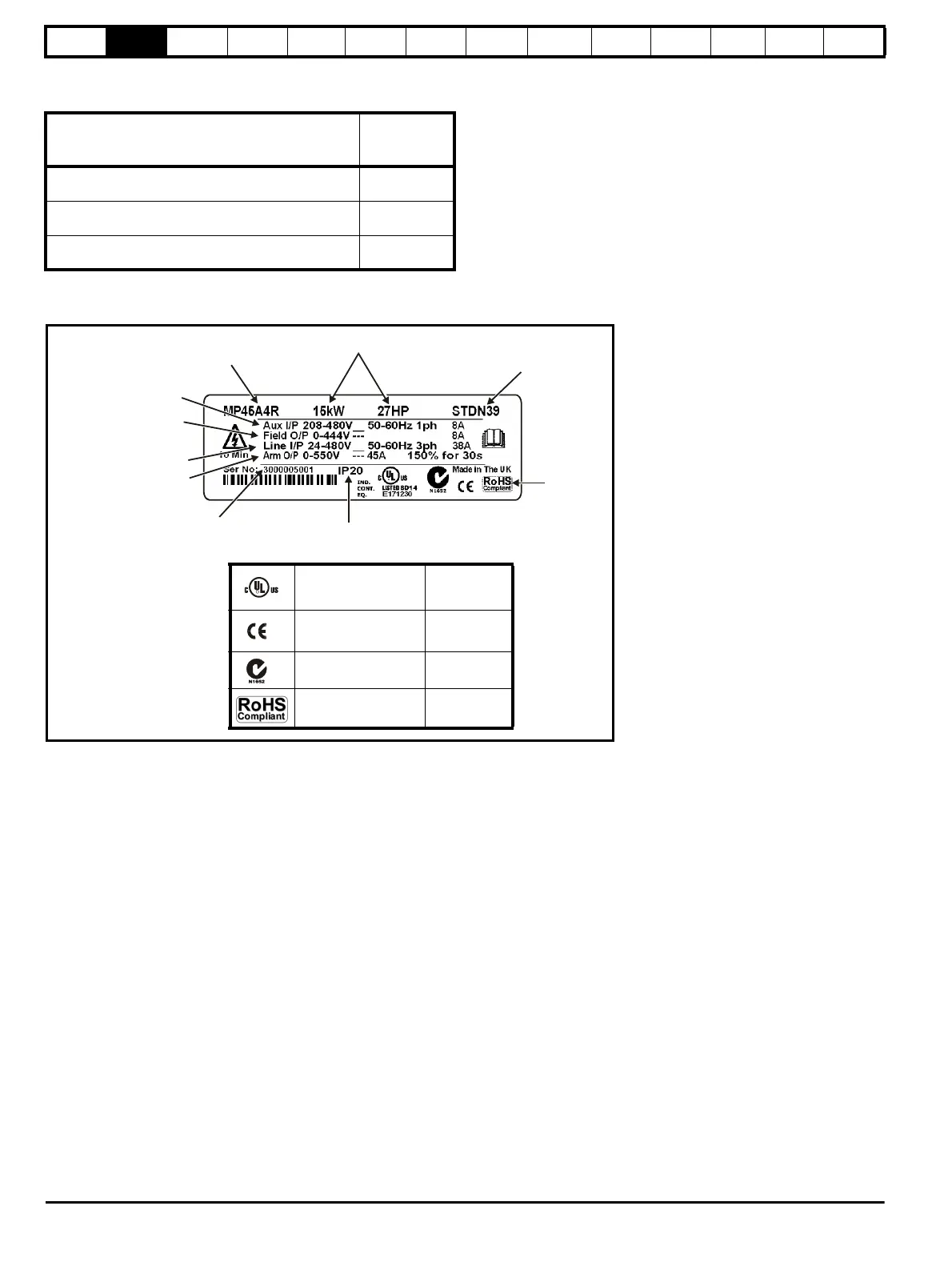

Figure 2-3 Typical drive rating label
2.4.1 Output current
The continuous output current ratings given on the rating label are for maximum 40°C (104°F) and 1000m altitude. Derating is required for higher
ambient temperatures >40°C (104°F) and higher altitude. For derating information, refer to section 12.1.12 Altitude on page 150.
2.4.2 Input current
The input current is affected by the supply voltage, frequency and load inductance. The input current given on the rating label is the typical input
current.
Encoder type
Pr 3.38
(Fb07, 0.77)
setting
Quadrature incremental encoders with or without
marker pulse
Ab (0)
Frequency and direction incremental encoders with
or without marker pulse
Fd (1)
Forward / reverse incremental encoders with or
without marker pulse
Fr (2)
Model
Auxiliary input voltage/
frequency/current
Field output
voltage current
Line input voltage/
frequency/current
Armature output voltage/
current/overload
Rating
Customer and
date code
Approvals
Serial number
IP Rating
Key to approvals
UL approval Worldwide
CE approval Europe
C Tick approval Australia
RoHS compliant Europe
